High speed performance and high rigidity large-size single axis robot.
Compatible to the cleanliness class 10

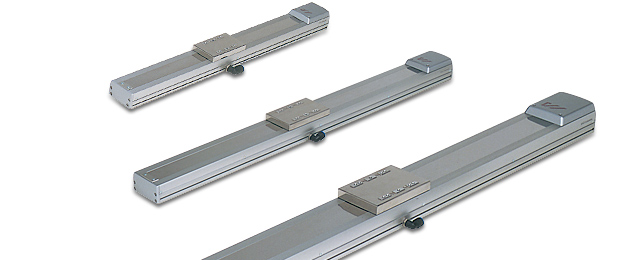

Production information of ISDACR / ISPDACR Series
Features 1 Maximum load for horizontal is 150kg, and for vertical is 60 kg.
Features 2 High speed-high precision type is maximum at 2000mm/s
Features 3 Accuracy of repeat positioning is ±0.01mm.
Features 4 Cleanliness class 10 compatible.
Guide line specification of ISDACR / ISPDACR series
| Type | Maximum Stroke | Maximum Horizontal Load Capacity |
Maximum Vertical Load Capacity |
Maximum Speed | Accuracy of repeating positioning |
|---|---|---|---|---|---|
| ISDACR | 2500 mm | 80 kg | 19 kg | 1000 mm/s | ±0.02mm |
| ISPDACR | 2500 mm | 80 kg | 19 kg | 1000 mm/s | ±0.01mm |
| ISDACR-W (Ultra Large Type) |
2500 mm | 150 kg | 60kg | 2000 mm/s | ±0.02mm |
| ISPDACR-W (Ultra Large Type) |
2500 mm | 150kg | 60kg | 2000 mm/s | ±0.01mm |
- ※This page provides information from the specification of all series to the maximum value. The maximum value may not be achieved and is subject to the combination of specification required.
- ※Please see the catalogue (PDF File) for more information.
