Pick & Rotary specification series
added in to the High Speed Slider type Robot CT4

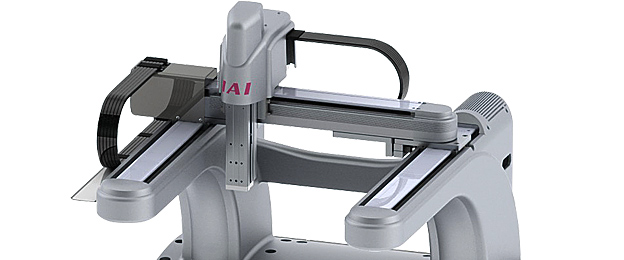

CT4-G1/G1PR/G1RT
Command Acceleration 3.2G(Instantaneous Maximum 4.8G)
The assembling・inspecting cycle time is reduced by the high speed・high rigidity along with the outstanding straightness
The newly developed cast aluminium frame ensures a high rigidity.
CT4 Series Product Information
-
Released on 24 June 2014
Pick & Rotary specification series
-
Released on 31 October 2013
New arrival!! Cycle Time Reducing High Speed Slider type Robot CT4
(rotation axis equipped specification series added)CT4
Realized a command acceleration of 3.2G(instantaneous maximum of 4.8G), and maximum speed of 2,500mm/s.
Features 1 High Speed・High Acceleration/Deceleration Speed
Reduces the device cycle time by having its maximum speed to be 2,500mm/s, and its maximum acceleration to be 3.2G.
Features 2 High Rigidity, Low Vibration
The newly developed cast aluminium frame ensures a high rigidity. The vibration during high speed motions are made low by performing vibration suppression control with XSEL controller, and by improving the vibration attenuatibility and shape of the XY axis fastening brackets.
Features 3 Effective Operational Range
A wide range of movement which covers 400mm(X-Axis) x 300mm(Y-Axis) is ensured. Comparing to the structure of a robot like multiple joint robot or parallel-link robot, the moving range is circular, the square moving range is more efficient and has no wasted space.
Features 4 Straightness
High Speed Slider type Robots are a combination of Single Axis robots which performs straight motions, and has a good straightness.
