Adaptive controller

Main specification

Specification 1

Heading			Contents
Lead		Ball screw lead (mm)	24	16	8	4
Horizontal	Load capacity	Max. load capacity (kg) (Power saving disabled)	10	20	40	62
	Load capacity	Max. load capacity (kg) (Power saving enabled)	8	15	30	50
	Speed/ Acceleration/Deceleration	Maximum speed (mm/s)	1000	720	420	210
		Minimum speed (mm/s)	30	20	10	5
		Rated acceleration/deceleration (G)	0.3	0.3	0.3	0.3
		Maximum acceleration/deceleration (G)	1	1	0.5	0.3
Vertical	Load capacity	Max. load capacity (kg) (Power saving disabled)	-	-	8	13.5
	Load capacity	Max. load capacity (kg) (Power saving enabled)	-	-	8	13.5
	Speed/ Acceleration/Deceleration	Maximum speed (mm/s)	-	-	360	210
		Minimum speed (mm/s)	-	-	10	5
		Rated acceleration/deceleration (G)	-	-	0.3	0.3
		Maximum acceleration/deceleration (G)	-	-	0.5	0.3
Pressing motion		Max. pressing thrust (N)	-	84	168	337
Pressing motion		Max. pressing speed (mm/s)	-	20	20	20
Brake		Brake specification	Non-excitation electromagnetic brake
Brake		Brake retention force (kgf)	-	-	8	13.5
Stroke		Minimum stroke (mm)	50	50	50	50
		Maximum stroke (mm)	800	800	800	800
		Stroke pitch (mm)	50	50	50	50

Specification 2

Heading	Contents
Drive system	Ball screw φ12mm, rolled C10
Accuracy of Repeating Positioning.	±0.05mm
Lost motion	- (Can't be shown as this is a 2-point positioning function)
Base	Dedicated aluminum extrusion material (equivalent to A6063SS-T6) treated with black alumite
Linear guide	Infinite linear circulation type
Allowable static moment value	Ma：328N･m
	Mb：328N･m
	Mc：751N･m
Allowable dynamic moment value (Note7)	Ma：77.0N･m
	Mb：77.0N･m
	Mc：176N･m
Ambient operating temperature and humidity	0 - 40℃, 85% RH Max (Non-condensing)
Protection grade	IP20
Vibration resistant/Shock resistant	4.9m/s²
Compatible to overseas standards	CE mark, RoHS compliant
Motor type	Pulse motor
Encoder type	Incremental / Battery-less absolute
Encoder pulse No.	800 pulse/rev
Delivery	Written in [Reference for delivery] section of the homepage

(Note7) Applicable to products with standard rated life span of 5,000km. Life time travelling distance differs based on operating condition and attached condition. Please refer to page 369 of Elecylinder General Catalogue 2020 for the running life.

Slider type moment direction

Load capacity by speed and acceleration table

Power saving setting disabled The unit of load capacity is kg. Empty column refers to inoperable motion.

Lead 24

Orientation	Horizontal
Speed (mm/s)	Acceleration/Deceleration (G)
Speed (mm/s)	0.3	0.5	0.7	1
0	10	8	6	4
360	10	8	6	4
460	10	8	6	3.5
500	10	7.5	5.5	3.5
580	10	6.5	4.5	3
640	10	6	4	2.5
700	9	5	3.5	2
800	7.5	4.5	3	1.5
900	6	3	2
1000		1.5

Lead 16

Orientation	Horizontal
Speed (mm/s)	Acceleration/Deceleration (G)
Speed (mm/s)	0.3	0.5	0.7	1
0	20	14	9	7
280	20	14	9	7
320	20	14	9	6
360	20	14	8.5	5.5
420	20	12	7	5
460	18	11	6.5	4.5
500	16	10	6	4
580	13	8	4.5	3
640	11	6	3.5	2
720	7	4	2

Lead 8

Orientation	Horizontal		Vertical
Speed (mm/s)	Acceleration/Deceleration (G)
Speed (mm/s)	0.3	0.5	0.3	0.5
0	40	30	8	7.5
140	40	30	8	7.5
160	40	30	8	7.5
190	40	30	8	7.5
220	40	25	7	6
250	35	20	6	5
280	30	16	5	4
320	22	12	4	3
360	15	9	3	2
420	8	5

Lead 4

Orientation	Horizontal	Vertical
Speed (mm/s)	Acceleration/Deceleration (G)
Speed (mm/s)	0.3	0.3
0	62	13.5
65	62	13.5
75	62	13.5
95	62	13.5
110	62	13.5
125	55	13.5
140	50	11
160	42	9
180	35	7
210	20	3

Power saving setting enabled The unit of load capacity is kg. Empty column refers to inoperable motion.

Lead 24

Orientation	Horizontal
Speed (mm/s)	Acceleration/Deceleration (G)
Speed (mm/s)	0.3	0.7
0	8	5
360	8	5
460	8	4
500	7.5	3.5
580	6.5	3
640	5	2.5
700	4	1.5
800	1.5

Lead 16

Orientation	Horizontal
Speed (mm/s)	Acceleration/Deceleration (G)
Speed (mm/s)	0.3	0.7
0	15	7
280	15	7
320	15	7
360	13	6
420	11	5
460	10	4.5
500	8	3
580	5	1.5
640	3

Lead 8

Orientation	Horizontal	Vertical
Speed (mm/s)	Acceleration/Deceleration (G)
Speed (mm/s)	0.3	0.3
0	30	8
140	30	8
160	30	8
190	25	6.5
220	20	4.5
250	16	3
280	12	2
320	8

Lead 4

Orientation	Horizontal	Vertical
Speed (mm/s)	Acceleration/Deceleration (G)
Speed (mm/s)	0.3	0.3
0	50	13.5
65	50	13.5
75	50	13.5
95	50	11
110	40	8
125	32	6
140	25	4
160	15	2

Stroke and maximum speed

(Measured in mm/s)

Lead (mm)	Energy saving setting	50 - 250 (Every 50mm)	300 (mm)	350 (mm)	400 (mm)	450 (mm)	500 (mm)	550 (mm)	600 (mm)	650 (mm)	700 (mm)	750 (mm)	800 (mm)
24	Invalid	1000				900	800	700	580	500	460	400	360
24	Valid	800						700	580	500	460	400	360
16	Invalid	720		640	580	500	420	360	320	280	240	220	200
16	Valid	640			580	500	420	360	320	280	240	220	200
8	Invalid	420 ＜360＞	360	280	250	220	190	170	150	130	110	90	85
8	Valid	320＜280＞		280	250	220	190	170	150	130	110	90	85
4	Invalid	210	180	140	125	110	95	85	75	65	55	50	45
4	Valid	160		140	125	110	95	85	75	65	55	50	45

(Note) < > is applicable when operated vertically.

Correlation diagram of pressing force and current limiting value

Adaptive controller

(Note) EC series has their controller built-in themselves. See page 17 for further details on the built-in controller.

Important notes on selection

(1) The value shown for load capacity in "Main specification" refers to the maximum value. When enabling the power saving setting, the main specifications will change. For details, refer to "Payload table by speed/acceleration".
(2) Please refer to "Correlation diagram of pressing force and current limiting value" if you wish to have pressing motions to be carried out. Pressing force shown are their standard value. Please refer to page 396 of Elecylinder General Catalogue 2020 for the notes to be aware of.
(3) A limit has to be set for duties based on the ambient temperature.
Refer to page 3 for further details.
(4) Safety measures may be required depending on the attachment orientation.
See page 4 for further details.
(5) The standard value for offset load lengths are 500mm and below, towards the direction of Ma, Mb and Mc. Please refer to page 23 of Elecylinder General Catalogue 2020 for the offset load length.
(6) The center of gravity of the mounted object should be 1/2 or less of the overhang distance. Even if the overhang distance and load moment are within the allowable values, if abnormal vibration or noise occurs during operation, loosen the operating conditions before use.
(7) Vertical installation is not available for lead S and lead H.
(8) Push motion can't be operated using lead S.

Return to the page top

Oversea specification

Dimension drawing

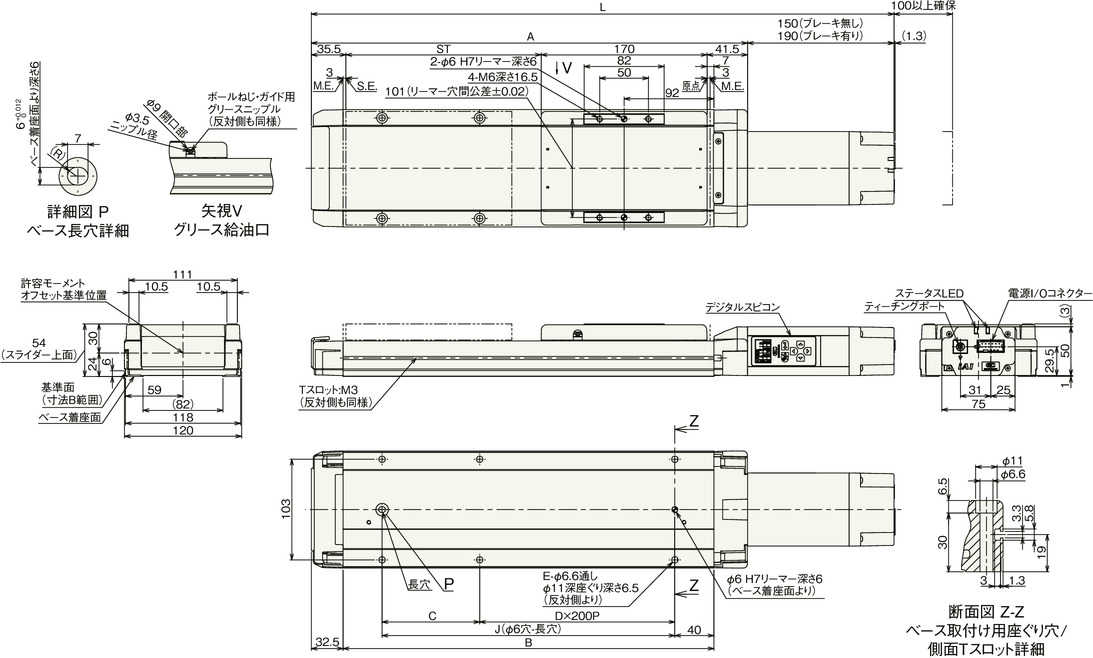

EC-WS12

ST: Stroke

M.E.: Mechanical end

S.E.: Stroke end

(Note) Please be careful while returning to the home position, for there is a chance of collision while having the slider returning to the M.E. position.

Dimension by stroke length

Stroke		50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800
L	Without brake	447	497	547	597	647	697	747	797	847	897	947	997	1047	1097	1147	1197
L	With brake	487	537	587	637	687	737	787	837	887	937	987	1037	1087	1137	1187	1237
A		297	347	397	447	497	547	597	647	697	747	797	847	897	947	997	1047
B		230	280	330	380	430	480	530	580	630	680	730	780	830	880	930	980
C		150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100
D		0	0	1	1	1	1	2	2	2	2	3	3	3	3	4	4
E		4	4	6	6	6	6	8	8	8	8	10	10	10	10	12	12
J		150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900

Mass by stroke length

Stroke		50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800
Mass (kg)	Without brake	3.4	3.7	4.1	4.5	4.8	5.2	5.5	5.9	6.2	6.6	6.9	7.3	7.6	8.0	8.4	8.7
Mass (kg)	With brake	3.7	4.0	4.4	4.7	5.1	5.5	5.8	6.2	6.5	6.9	7.2	7.6	7.9	8.3	8.6	9.0

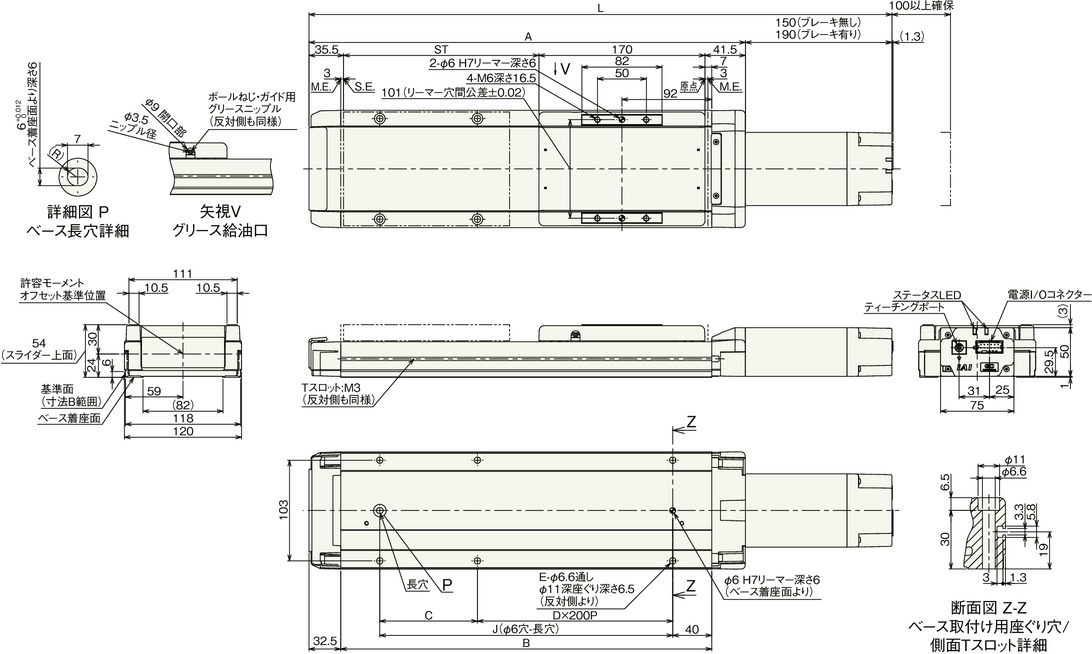

EC-DWS12

ST: Stroke

M.E.: Mechanical end

S.E.: Stroke end

(Note) Please be careful while returning to the home position, for there is a chance of collision while having the slider returning to the M.E. position.

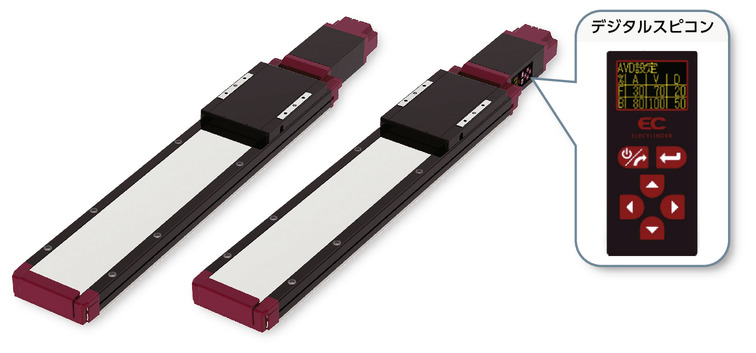

(Note) Image below shows the digital speed controller installed on the left side (DL). The installed direction will be on the opposite if the digital speed controller was installed on the right instead (DR).

Dimension by stroke length

Stroke		50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800
L	Without brake	447	497	547	597	647	697	747	797	847	897	947	997	1047	1097	1147	1197
L	With brake	487	537	587	637	687	737	787	837	887	937	987	1037	1087	1137	1187	1237
A		297	347	397	447	497	547	597	647	697	747	797	847	897	947	997	1047
B		230	280	330	380	430	480	530	580	630	680	730	780	830	880	930	980
C		150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100
D		0	0	1	1	1	1	2	2	2	2	3	3	3	3	4	4
E		4	4	6	6	6	6	8	8	8	8	10	10	10	10	12	12
J		150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900

Mass by stroke length

Stroke		50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800
Mass (kg)	Without brake	3.4	3.7	4.1	4.5	4.8	5.2	5.5	5.9	6.2	6.6	6.9	7.3	7.6	8.0	8.4	8.7
Mass (kg)	With brake	3.7	4.0	4.4	4.7	5.1	5.5	5.8	6.2	6.5	6.9	7.2	7.6	7.9	8.3	8.6	9.0
