IFA-MA□□-200

Product feature

Attachment orientation

(Note) The photo above shows the top-mounted motor type (MA1L).

Dimension drawing
Important notes on selection
Adaptive controller

Main specification

Specification 1

Heading			Contents
Lead		Lead (mm)	Equivalent to 42
Horizontal	Load capacity	Maximum payload (kg) [Controller power supply voltage: AC200V] (Note 5)	25
	Load capacity	Maximum payload (kg) [Controller power supply voltage: AC100V] (Note 5)	17
	Speed/ Acceleration/Deceleration	Maximum speed (mm/s)	3000
		Minimum speed (mm/s)	2.57
		Rated acceleration/deceleration (G)	0.3
		Maximum acceleration/deceleration (G)	2.0
Vertical	Load capacity	Maximum load capacity (kg)	－
	Speed/ Acceleration/Deceleration	Maximum speed (mm/s)	－
		Minimum speed (mm/s)	－
		Rated acceleration/deceleration (G)	－
		Maximum acceleration/deceleration (G)	－
Thrust		Rated thrust (N)	71.2
Brake		Brake specification	－
Brake		Brake retention force (kgf)	－
Stroke		Minimum stroke (mm)	200
		Maximum stroke (mm)	3200
		Stroke pitch (mm)	50

(Note 5) Maximum payload is lower for double slider type (W). Please refer to the table below for details.

Specification 2

Heading	Contents
Drive system	Timing belt, lead 42mm equivalent
Accuracy of Repeating Positioning.	±0.04mm
Lost motion	0.1mm or less
Base	Material: White alumite treated aluminum
Linear guide	Infinite linear circulation type
Static allowable moment (single slider type)	Ma： 259N･m
	Mb： 369N･m
	Mc： 604N･m
Static allowable moment (double slider specification) (Note 6)	Ma： 1760N･m
	Mb： 2520N･m
	Mc： 1210N･m
Dynamic allowable moment (single slider specification) (Note 7)	Ma： 81.0N･m
	Mb： 116N･m
	Mc： 189N･m
Dynamic allowable moment (double slider specification) (Note 7)	Ma： Slider actual span minimum [80mm] 448N･m, maximum [120mm] 561N･m
	Mb： Slider actual span minimum [80mm] 640N･m, maximum [120mm] 801N･m
	Mc： Slider actual span minimum [80mm] 307N･m, maximum [120mm] 307N･m
Ambient operating temperature and humidity	0 - 40℃, RH 85% and below (no condensation)
Protection grade	IP20
Vibration resistant/Shock resistant	4.9m/s²
Compatible to overseas standards	CE mark, RoHS compliant
Motor type	AC servo motor
Encoder type	Battery-less absolute
Encoder pulse No.	16384 pulse/rev
Delivery	Written in [Reference for delivery] section of the homepage

(Note 6) The value is the same regardless of the slider span.

(Note 7) Based on standard rated life of 10,000km. Life time travelling distance differs based on operating condition and attached condition. Refer page 1-276 for the operating life.

Slider type moment direction

Load capacity by speed and acceleration table

The base unit for load capacity is kilogram (kg).

Orientation			Horizontal
Lead (mm)	Maximum speed (mm/s)	Controller power supply voltage	Acceleration (G)
Lead (mm)	Maximum speed (mm/s)	Controller power supply voltage	0.3	0.4	0.5	0.6	0.7	0.8	0.9	1.0	1.1	1.2	1.3	1.4	1.5	1.6	1.7	1.8	1.9	2.0
42	3000	AC200V	25	18	14	11	9	7.5	6.5	5.5	4.6	3.8	3.2	2.6	2.3	2	1.7	1.4	1.2	1
42	3000	AC100V	17	11	8	6.5	5.5	4.5	4	3.5	3.2	2.9	2.7	2.6	2.3	2	1.7	1.4	1.2	1

Stroke and maximum speed

(Measured in mm/s)

200 - 3200 (per 50mm)
3000

Adaptive controller

The actuators introduced in this page are controllable using the controllers shown below. Please select their type based on intended usage.

Name	Max. connectable axis No.	Power source voltage	Control method															Maximum positioning points
			Positioner	Pulse train	Program	Network *Select
			Positioner	Pulse train	Program	DV	CC	CIE	PR	CN	ML	ML3	EC	EP	PRT	SSN	ECM
RCON	16 (ML3,SSN,ECM is 8)	DC24V, single phase AC200V, three phase AC200V	－	－	－	●	●	●	●	－	－	●	●	●	●	●	●	128 (Position data unavailable for ML3, SSN and ECM)
RSEL	8	DC24V, single phase AC200V, three phase AC200V	－	－	●	●	●	●	●	－	－	－	●	●	●	－	－	36000
SCON-CB/CGB	1	Single phase AC 100V/ 200V	●	●	－	●	●	●	●	●	●	●	●	●	●	－	●	512 (768 for network specification)
SCON2-CG	1	Single phase AC100V	●	●	－	●	●	●	－	－	－	●	●	●	●	－	－	384
SCON2-CG	1	Single phase AC200V	●	●	－	●	●	●	－	－	－	●	●	●	●	－	－	384
XSEL-P/Q	6	Single phase AC200V Three-phase AC200V	－	－	●	●	●	－	●	－	－	－	－	●	－	－	－	20000
XSEL-RA/SA	8	Single phase AC200V Three-phase AC200V	－	－	●	●	●	●	●	－	－	－	●	●	－	－	－	55000 (Vary based on type)

(Note) For network abbreviations such as DV and CC, please refer to page 8-15.

(Note) For SCON2 ML3 and EC, if you do not specify the controller model function option, it will be a remote I/O specification, and if you select "M", it will be a motion network specification.

Oversea specification

Important notes on selection

(1) You will need extra care based on the installed orientation. Refer to page 1-307 for further details.
(2) The load capacity shown in the "Main specification" refers to their maximum value. Please refer to the "Table of payload by speed/acceleration" for further details.
(3) Pressing motion can't be carried out as well.
(4) The guideline for the usable duty ratio changes depending on the load factor. Refer to page 1-328 for further details.
(5) The center of gravity of the mounted object should be 1/2 or less of the overhang distance. Even if the overhang distance and load moment are within the allowable values, if abnormal vibration or noise occurs during operation, loosen the operating conditions before use.
(6) The approximate overhang load length is 600mm or less in Ma, Mb, and Mc directions (for double slider types, the minimum actual slider span [80mm]: 1600mm, maximum [120mm]: 1800mm or less). Please refer to page 3-52 for the overhang load length.
(7) Please refer to page 1-293 for the ordering model number and precautions when selecting the double slider type.

Return to the page top

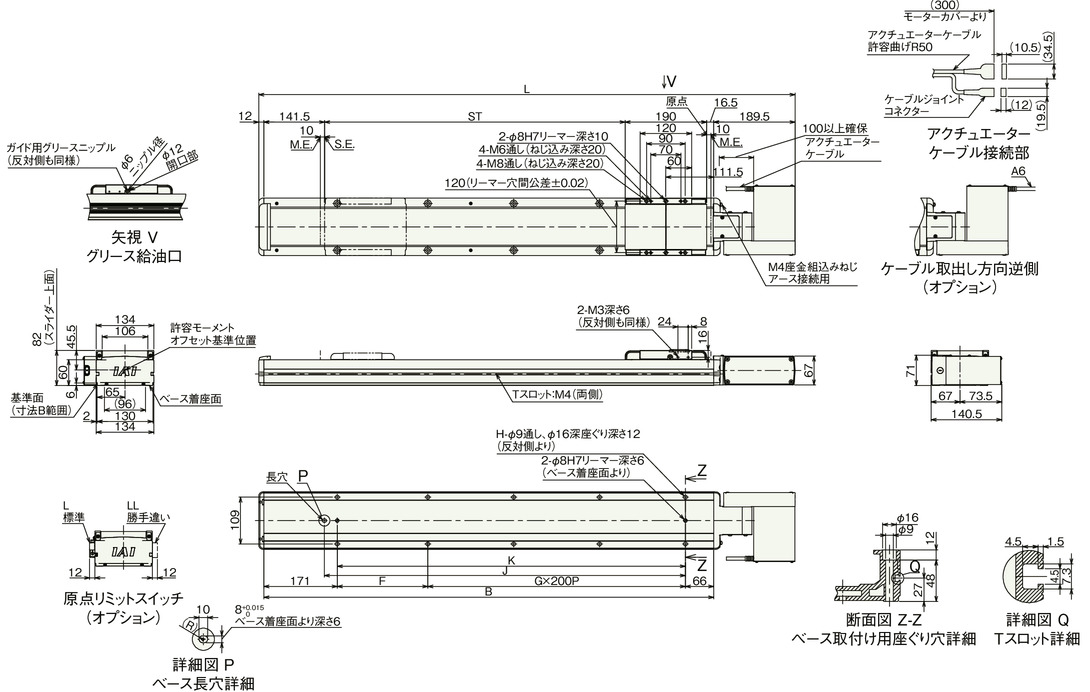

Dimension drawing

IFA-MA1 (top-mounted motor)

ST： Stroke

M.E.： Mechanical end

S.E.： Stroke end

(Note) The cable joint connector shall have motor cable and encoder cable connected to it. Please refer to page 3-711 for the cable details.

(Note) Please be careful while returning to the home position, for there is a chance of collision while having the slider returning to the M.E. position.

(Note) Please take note that return setting has to be adjusted to change the originating direction.

(Note) The figure below is MA1L.

Dimension by stroke length

Stroke	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300	1350	1400	1450	1500	1550	1600	1650	1700
L	649.5	699.5	749.5	799.5	849.5	899.5	949.5	999.5	1049.5	1099.5	1149.5	1199.5	1249.5	1299.5	1349.5	1399.5	1449.5	1499.5	1549.5	1599.5	1649.5	1699.5	1749.5	1799.5	1849.5	1899.5	1949.5	1999.5	2049.5	2099.5	2149.5
B	548	598	648	698	748	798	848	898	948	998	1048	1098	1148	1198	1248	1298	1348	1398	1448	1498	1548	1598	1648	1698	1748	1798	1848	1898	1948	1998	2048
F	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211
G	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5	5	6	6	6	6	7	7	7	7	8	8	8	8
H	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14	14	16	16	16	16	18	18	18	18	20	20	20	20
J	341	391	441	491	541	591	641	691	741	791	841	891	941	991	1041	1091	1141	1191	1241	1291	1341	1391	1441	1491	1541	1591	1641	1691	1741	1791	1841
K	311	361	411	461	511	561	611	661	711	761	811	861	911	961	1011	1061	1111	1161	1211	1261	1311	1361	1411	1461	1511	1561	1611	1661	1711	1761	1811

Dimension by stroke length

Stroke	1750	1800	1850	1900	1950	2000	2050	2100	2150	2200	2250	2300	2350	2400	2450	2500	2550	2600	2650	2700	2750	2800	2850	2900	2950	3000	3050	3100	3150	3200
L	2199.5	2249.5	2299.5	2349.5	2399.5	2449.5	2499.5	2549.5	2599.5	2649.5	2699.5	2749.5	2799.5	2849.5	2899.5	2949.5	2999.5	3049.5	3099.5	3149.5	3199.5	3249.5	3299.5	3349.5	3399.5	3449.5	3499.5	3549.5	3599.5	3649.5
B	2098	2148	2198	2248	2298	2348	2398	2448	2498	2548	2598	2648	2698	2748	2798	2848	2898	2948	2998	3048	3098	3148	3198	3248	3298	3348	3398	3448	3498	3548
F	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111
G	9	9	9	9	10	10	10	10	11	11	11	11	12	12	12	12	13	13	13	13	14	14	14	14	15	15	15	15	16	16
H	22	22	22	22	24	24	24	24	26	26	26	26	28	28	28	28	30	30	30	30	32	32	32	32	34	34	34	34	36	36
J	1891	1941	1991	2041	2091	2141	2191	2241	2291	2341	2391	2441	2491	2541	2591	2641	2691	2741	2791	2841	2891	2941	2991	3041	3091	3141	3191	3241	3291	3341
K	1861	1911	1961	2011	2061	2111	2161	2211	2261	2311	2361	2411	2461	2511	2561	2611	2661	2711	2761	2811	2861	2911	2961	3011	3061	3111	3161	3211	3261	3311

Mass by stroke length

Stroke	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300	1350	1400	1450	1500	1550	1600	1650	1700
Mass (kg)	10.8	11.3	11.8	12.3	12.8	13.3	13.8	14.3	14.9	15.4	15.9	16.4	16.9	17.4	17.9	18.4	19.0	19.5	20.0	20.5	21.0	21.5	22.0	22.5	23.0	23.6	24.1	24.6	25.1	25.6	26.1

Mass by stroke length

Stroke	1750	1800	1850	1900	1950	2000	2050	2100	2150	2200	2250	2300	2350	2400	2450	2500	2550	2600	2650	2700	2750	2800	2850	2900	2950	3000	3050	3100	3150	3200
Mass (kg)	26.6	27.1	27.7	28.2	28.7	29.2	29.7	30.2	30.7	31.2	31.8	32.3	32.8	33.3	33.8	34.3	34.8	35.3	35.9	36.4	36.9	37.4	37.9	38.4	38.9	39.4	40.0	40.5	41.0	41.5

IFA-MA2 (side-mounted motor)

ST： Stroke

M.E.： Mechanical end

S.E.： Stroke end

(Note) The cable joint connector shall have motor cable and encoder cable connected to it. Please refer to page 3-711 for the cable details.

(Note) Please be careful while returning to the home position, for there is a chance of collision while having the slider returning to the M.E. position.

(Note) Please take note that return setting has to be adjusted to change the originating direction.

(Note) The figure below is MA2L.

Dimension by stroke length

Stroke	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300	1350	1400	1450	1500	1550	1600	1650	1700
L	749.5	799.5	849.5	899.5	949.5	999.5	1049.5	1099.5	1149.5	1199.5	1249.5	1299.5	1349.5	1399.5	1449.5	1499.5	1549.5	1599.5	1649.5	1699.5	1749.5	1799.5	1849.5	1899.5	1949.5	1999.5	2049.5	2099.5	2149.5	2199.5	2249.5
B	548	598	648	698	748	798	848	898	948	998	1048	1098	1148	1198	1248	1298	1348	1398	1448	1498	1548	1598	1648	1698	1748	1798	1848	1898	1948	1998	2048
F	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211
G	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5	5	6	6	6	6	7	7	7	7	8	8	8	8
H	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14	14	16	16	16	16	18	18	18	18	20	20	20	20
J	341	391	441	491	541	591	641	691	741	791	841	891	941	991	1041	1091	1141	1191	1241	1291	1341	1391	1441	1491	1541	1591	1641	1691	1741	1791	1841
K	311	361	411	461	511	561	611	661	711	761	811	861	911	961	1011	1061	1111	1161	1211	1261	1311	1361	1411	1461	1511	1561	1611	1661	1711	1761	1811

Dimension by stroke length

Stroke	1750	1800	1850	1900	1950	2000	2050	2100	2150	2200	2250	2300	2350	2400	2450	2500	2550	2600	2650	2700	2750	2800	2850	2900	2950	3000	3050	3100	3150	3200
L	2299.5	2349.5	2399.5	2449.5	2499.5	2549.5	2599.5	2649.5	2699.5	2749.5	2799.5	2849.5	2899.5	2949.5	2999.5	3049.5	3099.5	3149.5	3199.5	3249.5	3299.5	3349.5	3399.5	3449.5	3499.5	3549.5	3599.5	3649.5	3699.5	3749.5
B	2098	2148	2198	2248	2298	2348	2398	2448	2498	2548	2598	2648	2698	2748	2798	2848	2898	2948	2998	3048	3098	3148	3198	3248	3298	3348	3398	3448	3498	3548
F	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111
G	9	9	9	9	10	10	10	10	11	11	11	11	12	12	12	12	13	13	13	13	14	14	14	14	15	15	15	15	16	16
H	22	22	22	22	24	24	24	24	26	26	26	26	28	28	28	28	30	30	30	30	32	32	32	32	34	34	34	34	36	36
J	1891	1941	1991	2041	2091	2141	2191	2241	2291	2341	2391	2441	2491	2541	2591	2641	2691	2741	2791	2841	2891	2941	2991	3041	3091	3141	3191	3241	3291	3341
K	1861	1911	1961	2011	2061	2111	2161	2211	2261	2311	2361	2411	2461	2511	2561	2611	2661	2711	2761	2811	2861	2911	2961	3011	3061	3111	3161	3211	3261	3311

Mass by stroke length

Stroke	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300	1350	1400	1450	1500	1550	1600	1650	1700
Mass (kg)	10.8	11.3	11.8	12.3	12.8	13.3	13.8	14.3	14.9	15.4	15.9	16.4	16.9	17.4	17.9	18.4	19.0	19.5	20.0	20.5	21.0	21.5	22.0	22.5	23.0	23.6	24.1	24.6	25.1	25.6	26.1

Mass by stroke length

Stroke	1750	1800	1850	1900	1950	2000	2050	2100	2150	2200	2250	2300	2350	2400	2450	2500	2550	2600	2650	2700	2750	2800	2850	2900	2950	3000	3050	3100	3150	3200
Mass (kg)	26.6	27.1	27.7	28.2	28.7	29.2	29.7	30.2	30.7	31.2	31.8	32.3	32.8	33.3	33.8	34.3	34.8	35.3	35.9	36.4	36.9	37.4	37.9	38.4	38.9	39.4	40.0	40.5	41.0	41.5

IFA-MA3 (bottom-mounted motor)

ST： Stroke

M.E.： Mechanical end

S.E.： Stroke end

(Note) The cable joint connector shall have motor cable and encoder cable connected to it. Please refer to page 3-711 for the cable details.

(Note) Please be careful while returning to the home position, for there is a chance of collision while having the slider returning to the M.E. position.

(Note) Please take note that return setting has to be adjusted to change the originating direction.

(Note) The figure below is MA3L.

Dimension by stroke length

Stroke	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300	1350	1400	1450	1500	1550	1600	1650	1700
L	649.5	699.5	749.5	799.5	849.5	899.5	949.5	999.5	1049.5	1099.5	1149.5	1199.5	1249.5	1299.5	1349.5	1399.5	1449.5	1499.5	1549.5	1599.5	1649.5	1699.5	1749.5	1799.5	1849.5	1899.5	1949.5	1999.5	2049.5	2099.5	2149.5
B	548	598	648	698	748	798	848	898	948	998	1048	1098	1148	1198	1248	1298	1348	1398	1448	1498	1548	1598	1648	1698	1748	1798	1848	1898	1948	1998	2048
F	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211
G	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5	5	6	6	6	6	7	7	7	7	8	8	8	8
H	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14	14	16	16	16	16	18	18	18	18	20	20	20	20
J	341	391	441	491	541	591	641	691	741	791	841	891	941	991	1041	1091	1141	1191	1241	1291	1341	1391	1441	1491	1541	1591	1641	1691	1741	1791	1841
K	311	361	411	461	511	561	611	661	711	761	811	861	911	961	1011	1061	1111	1161	1211	1261	1311	1361	1411	1461	1511	1561	1611	1661	1711	1761	1811

Dimension by stroke length

Stroke	1750	1800	1850	1900	1950	2000	2050	2100	2150	2200	2250	2300	2350	2400	2450	2500	2550	2600	2650	2700	2750	2800	2850	2900	2950	3000	3050	3100	3150	3200
L	2199.5	2249.5	2299.5	2349.5	2399.5	2449.5	2499.5	2549.5	2599.5	2649.5	2699.5	2749.5	2799.5	2849.5	2899.5	2949.5	2999.5	3049.5	3099.5	3149.5	3199.5	3249.5	3299.5	3349.5	3399.5	3449.5	3499.5	3549.5	3599.5	3649.5
B	2098	2148	2198	2248	2298	2348	2398	2448	2498	2548	2598	2648	2698	2748	2798	2848	2898	2948	2998	3048	3098	3148	3198	3248	3298	3348	3398	3448	3498	3548
F	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111
G	9	9	9	9	10	10	10	10	11	11	11	11	12	12	12	12	13	13	13	13	14	14	14	14	15	15	15	15	16	16
H	22	22	22	22	24	24	24	24	26	26	26	26	28	28	28	28	30	30	30	30	32	32	32	32	34	34	34	34	36	36
J	1891	1941	1991	2041	2091	2141	2191	2241	2291	2341	2391	2441	2491	2541	2591	2641	2691	2741	2791	2841	2891	2941	2991	3041	3091	3141	3191	3241	3291	3341
K	1861	1911	1961	2011	2061	2111	2161	2211	2261	2311	2361	2411	2461	2511	2561	2611	2661	2711	2761	2811	2861	2911	2961	3011	3061	3111	3161	3211	3261	3311

Mass by stroke length

Stroke	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300	1350	1400	1450	1500	1550	1600	1650	1700
Mass (kg)	10.8	11.3	11.8	12.3	12.8	13.3	13.8	14.3	14.9	15.4	15.9	16.4	16.9	17.4	17.9	18.4	19.0	19.5	20.0	20.5	21.0	21.5	22.0	22.5	23.0	23.6	24.1	24.6	25.1	25.6	26.1

Mass by stroke length

Stroke	1750	1800	1850	1900	1950	2000	2050	2100	2150	2200	2250	2300	2350	2400	2450	2500	2550	2600	2650	2700	2750	2800	2850	2900	2950	3000	3050	3100	3150	3200
Mass (kg)	26.6	27.1	27.7	28.2	28.7	29.2	29.7	30.2	30.7	31.2	31.8	32.3	32.8	33.3	33.8	34.3	34.8	35.3	35.9	36.4	36.9	37.4	37.9	38.4	38.9	39.4	40.0	40.5	41.0	41.5

Payload table by speed/acceleration (double slider type)

The base unit for load capacity is kilogram (kg). Empty column refers to inoperable motion.

Orientation			Horizontal
Lead (mm)	Maximum speed (mm/s)	Controller power supply voltage	Acceleration (G)
Lead (mm)	Maximum speed (mm/s)	Controller power supply voltage	0.3	0.4	0.5	0.6	0.7	0.8	0.9	1.0	1.1	1.2	1.3	1.4	1.5	1.6	1.7	1.8	1.9	2.0
42	3000	AC200V	21	14	10	7	5	3.5	2.5	1.5	0.6
42	3000	AC100V	13	7	4	2.5	1.5	0.5

Dimension drawing (double slider type)

ST： Stroke

M.E.： Mechanical end

S.E.： Stroke end

Drawing (double slider type)

(Note) The cable joint connector shall have motor cable and encoder cable connected to it. Please refer to page 3-711 for the cable details.

(Note) Please be careful while returning to the home position, for there is a chance of collision while having the slider returning to the M.E. position.

(Note) Please take note that return setting has to be adjusted to change the originating direction.

(Note) The figure below is MA1L.

(Note) The figure below shows the dimensions when the actual slider span is the minimum.

Dimension by stroke length

Call stroke		400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300	1350	1400	1450	1500	1550	1600	1650	1700	1750	1800
Effective stroke	Slider actual span minimum [80mm]	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300	1350	1400	1450	1500	1550	1600
Effective stroke	Max. actual span of the slider [120mm]	－	210	260	310	360	410	460	510	560	610	660	710	760	810	860	910	960	1010	1060	1110	1160	1210	1260	1310	1360	1410	1460	1510	1560
L		849.5	899.5	949.5	999.5	1049.5	1099.5	1149.5	1199.5	1249.5	1299.5	1349.5	1399.5	1449.5	1499.5	1549.5	1599.5	1649.5	1699.5	1749.5	1799.5	1849.5	1899.5	1949.5	1999.5	2049.5	2099.5	2149.5	2199.5	2249.5
B		748	798	848	898	948	998	1048	1098	1148	1198	1248	1298	1348	1398	1448	1498	1548	1598	1648	1698	1748	1798	1848	1898	1948	1998	2048	2098	2148
F		111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111
G		2	2	2	3	3	3	3	4	4	4	4	5	5	5	5	6	6	6	6	7	7	7	7	8	8	8	8	9	9
H		8	8	8	10	10	10	10	12	12	12	12	14	14	14	14	16	16	16	16	18	18	18	18	20	20	20	20	22	22
J		541	591	641	691	741	791	841	891	941	991	1041	1091	1141	1191	1241	1291	1341	1391	1441	1491	1541	1591	1641	1691	1741	1791	1841	1891	1941
K		511	561	611	661	711	761	811	861	911	961	1011	1061	1111	1161	1211	1261	1311	1361	1411	1461	1511	1561	1611	1661	1711	1761	1811	1861	1911

Dimensions by stroke (double slider type)

Call stroke		1850	1900	1950	2000	2050	2100	2150	2200	2250	2300	2350	2400	2450	2500	2550	2600	2650	2700	2750	2800	2850	2900	2950	3000	3050	3100	3150	3200
Effective stroke	Slider actual span minimum [80mm]	1650	1700	1750	1800	1850	1900	1950	2000	2050	2100	2150	2200	2250	2300	2350	2400	2450	2500	2550	2600	2650	2700	2750	2800	2850	2900	2950	3000
Effective stroke	Max. actual span of the slider [120mm]	1610	1660	1710	1760	1810	1860	1910	1960	2010	2060	2110	2160	2210	2260	2310	2360	2410	2460	2510	2560	2610	2660	2710	2760	2810	2860	2910	2960
L		2299.5	2349.5	2399.5	2449.5	2499.5	2549.5	2599.5	2649.5	2699.5	2749.5	2799.5	2849.5	2899.5	2949.5	2999.5	3049.5	3099.5	3149.5	3199.5	3249.5	3299.5	3349.5	3399.5	3449.5	3499.5	3549.5	3599.5	3649.5
B		2198	2248	2298	2348	2398	2448	2498	2548	2598	2648	2698	2748	2798	2848	2898	2948	2998	3048	3098	3148	3198	3248	3298	3348	3398	3448	3498	3548
F		161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111	161	211	61	111
G		9	9	10	10	10	10	11	11	11	11	12	12	12	12	13	13	13	13	14	14	14	14	15	15	15	15	16	16
H		22	22	24	24	24	24	26	26	26	26	28	28	28	28	30	30	30	30	32	32	32	32	34	34	34	34	36	36
J		1991	2041	2091	2141	2191	2241	2291	2341	2391	2441	2491	2541	2591	2641	2691	2741	2791	2841	2891	2941	2991	3041	3091	3141	3191	3241	3291	3341
K		1961	2011	2061	2111	2161	2211	2261	2311	2361	2411	2461	2511	2561	2611	2661	2711	2761	2811	2861	2911	2961	3011	3061	3111	3161	3211	3261	3311

(Note) Nominal stroke: Stroke indicated in the model Effective stroke: Actual stroke during operation

Mass by stroke length

Call stroke		400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300	1350	1400	1450	1500	1550	1600	1650	1700	1750	1800
Effective stroke	Slider actual span minimum [80mm]	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300	1350	1400	1450	1500	1550	1600
Effective stroke	Max. actual span of the slider [120mm]	－	210	260	310	360	410	460	510	560	610	660	710	760	810	860	910	960	1010	1060	1110	1160	1210	1260	1310	1360	1410	1460	1510	1560
Mass (kg)		14.3	14.8	15.3	15.8	16.4	16.9	17.4	17.9	18.4	18.9	19.4	19.9	20.5	21.0	21.5	22.0	22.5	23.0	23.5	24.0	24.5	25.1	25.6	26.1	26.6	27.1	27.6	28.1	28.6

Mass by stroke (double slider type)

Call stroke		1850	1900	1950	2000	2050	2100	2150	2200	2250	2300	2350	2400	2450	2500	2550	2600	2650	2700	2750	2800	2850	2900	2950	3000	3050	3100	3150	3200
Effective stroke	Slider actual span minimum [80mm]	1650	1700	1750	1800	1850	1900	1950	2000	2050	2100	2150	2200	2250	2300	2350	2400	2450	2500	2550	2600	2650	2700	2750	2800	2850	2900	2950	3000
Effective stroke	Max. actual span of the slider [120mm]	1610	1660	1710	1760	1810	1860	1910	1960	2010	2060	2110	2160	2210	2260	2310	2360	2410	2460	2510	2560	2610	2660	2710	2760	2810	2860	2910	2960
Mass (kg)		29.2	29.7	30.2	30.7	31.2	31.7	32.2	32.7	33.3	33.8	34.3	34.8	35.3	35.8	36.3	36.8	37.4	37.9	38.4	38.9	39.4	39.9	40.4	40.9	41.5	42.0	42.5	43.0

(Note) Mass is the single slider specification plus 1.5kg of free slider.

Return to product information page top
