ISB-MXMX-400

Product feature

Attachment orientation

Catalogue (PDF)

User's manual PDF

2 dimensional CAD drawing

Parametric CAD drawing

Request for information materials

Dimension drawing
Important notes on selection
Adaptive controller

Main specification

Specification 1

Heading			Contents
Lead		Ball screw lead (mm)	48
Horizontal	Load capacity	Maximum load capacity (kg)	20
	Speed/ Acceleration/Deceleration	Maximum speed (mm/s)	2200
		Rated acceleration/deceleration (G)	0.4
		Maximum acceleration/deceleration (G)	0.4
Vertical	Load capacity	Maximum load capacity (kg)	－
	Speed/ Acceleration/Deceleration	Maximum speed (mm/s)	－
		Rated acceleration/deceleration (G)	－
		Maximum acceleration/deceleration (G)	－
Thrust		Rated thrust (N)	141.3
Brake		Brake specification	Non-excitation electromagnetic brake
Brake		Brake retention force (kgf)	－
Stroke		Minimum stroke (mm)	800
		Maximum stroke (mm)	2000
		Stroke pitch (mm)	50

Specification 2

Heading	Contents
Drive system	Ball screw φ16mm, rolled C10
Accuracy of Repeating Positioning.	±0.01 mm
Lost motion	0.05 mm and below
Base	Material: Aluminum (White anodized)
Linear guide	Infinite linear circulation type
Allowable static moment value	Ma：341N･m
	Mb：487N･m
	Mc：796N･m
Allowable dynamic moment (Note3)	Ma：81N･m
	Mb：116N･m
	Mc：189N･m
Ambient operating temperature and humidity	0 - 40℃, Max 85% RH and below (No condensation shall occur)
Protection grade	－
Vibration resistant/Shock resistant	4.9m/s² 100Hz and below
Compatible to overseas standards	CE mark, RoHS compliant
Motor type	AC servo motor
Encoder type	Battery-less absolute
Encoder pulse No.	131072 pulse/rev
Delivery	Written in [Reference for delivery] section of the homepage

(Note3) Assumes a basic rated life of 10,000km. Life time travelling distance differs based on operating condition and attached condition. Please refer to page 1-360 for life time travelling distance.

Slider type moment direction

Load capacity by speed and acceleration table

The base unit for load capacity is kilogram (kg). Empty column refers to inoperable motion.

Orientation		Horizontal																			Vertical
Lead (mm)	Maximum speed (mm/s)	Acceleration (G)
Lead (mm)	Maximum speed (mm/s)	0.2	0.3	0.4	0.5	0.6	0.7	0.8	0.9	1.0	1.1	1.2	1.3	1.4	1.5	1.6	1.7	1.8	1.9	2.0	0.2	0.3	0.4	0.5	0.6	0.7	0.8	0.9	1.0	1.1	1.2	1.3	1.4	1.5	1.6
48	2200	20.0	20.0	20.0																	Operates only in horizontal orientation.

Stroke and maximum speed

(Measured in mm/s)

Stroke lead	800	850	900	950	1000	1050	1100	1150	1200	1250	1300	1350	1400	1450	1500	1550	1600	1650	1700	1750	1800	1850	1900	1950	2000
48	1700	1750	1800	1850	1900	1950	2000	2050	2100	2150	2200	2065	1925	1805	1690	1590	1495	1410	1335	1265	1195	1135	1080	1025	980

Adaptive controller

The actuators introduced in this page are controllable using the controllers shown below. Please select their type based on intended usage.

Name	Max. connectable axis No.	Power source voltage	Control method														Maximum positioning points
			Positioner	Pulse train	Program	Network ※Select
			Positioner	Pulse train	Program	DV	CC	PR	CN	ML	ML3	EC	EP	PRT	SSN	ECM
SCON-CB/CGB	1	Single phase AC200V	●	●	－	●	●	●	●	●	●	●	●	●	－	－	512 (768 for network specification)
SCON-LC/LCG	1	Single phase AC200V	－	－	●	●	●	●	●	●	－	●	●	●	－	－	512 (768 for network specification)
SSEL-CS	2	Single phase AC 100V/200V	●	－	●	●	●	●	－	－	－	－	●	－	－	－	20000
XSEL-P/Q	6	Single phase AC200V Three-phase AC200V	－	－	●	●	●	●	－	－	－	－	●	－	－	－	20000
XSEL-RA/SA	8	Single phase AC200V Three-phase AC200V	－	－	●	●	●	●	－	－	－	●	●	－	－	－	55000 (Vary based on type)

(Note) Please refer to page 6 -13 for abbreviated names of network (e.g. DV, CC).

Oversea specification

Important notes on selection

(1) The load capacity shown in the "Main specification" refers to their maximum value. Please refer to "Load capacity by speed and acceleration table" for further information.
(2) Safety measures may be required depending on the attachment orientation. Please refer to page 1-379 for further information.
(3) The standard value for offset load lengths are 600mm and below, towards the direction of Ma, Mb and Mc.

Return to the page top

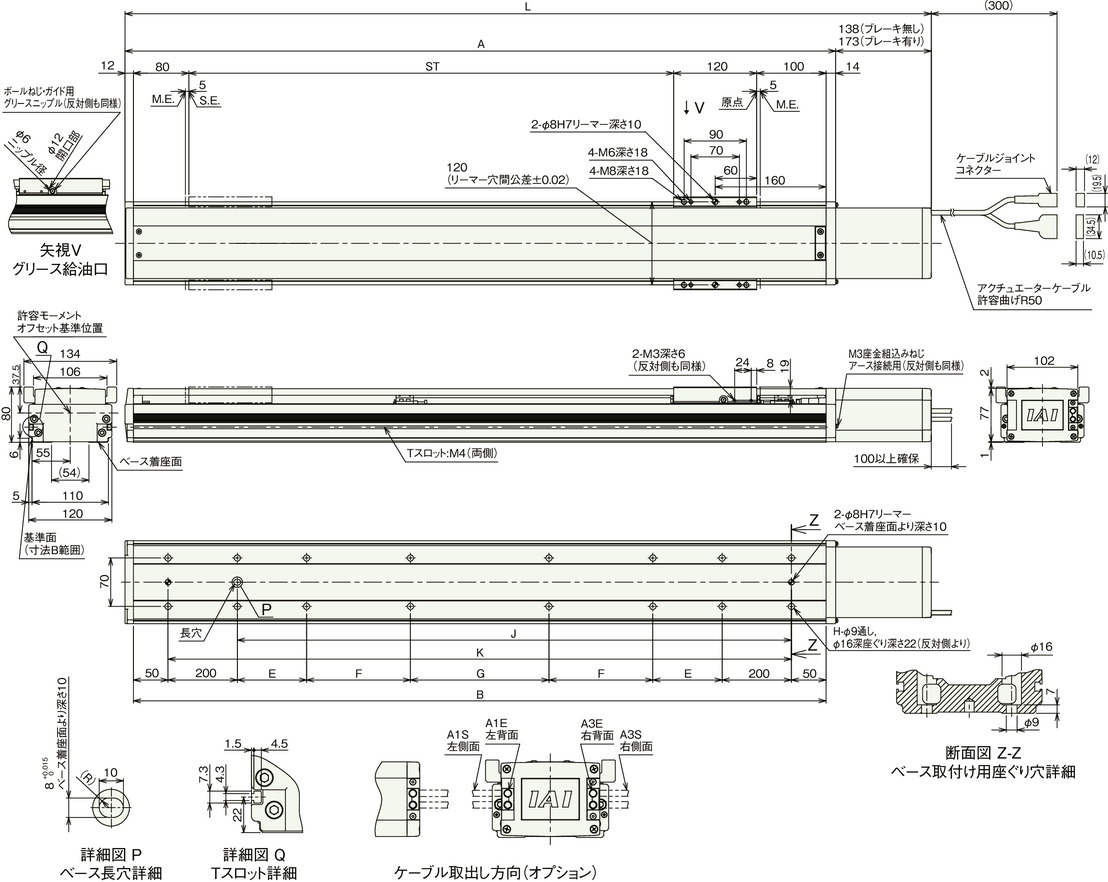

Dimension drawing

ST: Stroke

M.E.: Mechanical end

S.E.: Stroke end

(Note) Please be careful while returning to the home position, for there is a chance of collision while having the slider returning to the M.E. position.

(Note) Please take note that return setting has to be adjusted to change the originating direction.

Dimension by stroke length

Stroke		800	850	900	950	1000	1050	1100	1150	1200	1250	1300	1350	1400	1450	1500	1550	1600	1650	1700	1750	1800	1850	1900	1950	2000
L	Brake present	1264	1314	1364	1414	1464	1514	1564	1614	1664	1714	1764	1814	1864	1914	1964	2014	2064	2114	2164	2214	2264	2314	2364	2414	2464
L	Brake absent	1299	1349	1399	1449	1499	1549	1599	1649	1699	1749	1799	1849	1899	1949	1	2049	2099	2149	2199	2249	2299	2349	2399	2449	2499
A		1126	1176	1226	1276	1326	1376	1426	1476	1526	1576	1626	1676	1726	1776	1826	1876	1926	1976	2026	2076	2126	2176	2226	2276	2326
B		1100	1150	1200	1250	1300	1350	1400	1450	1500	1550	1600	1650	1700	1750	1800	1850	1900	1950	2000	2050	2100	2150	2200	2250	2300
E		200	200	200	200	200	225	250	275	300	325	350	375	400	425	450	475	500	525	550	575	200	200	200	200	200
F		0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	400	425	450	475	500
G		200	250	300	350	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400
H		12	12	12	12	12	12	12	12	12	12	12	12	12	12	12	12	12	12	12	12	16	16	16	16	16
J		800	850	900	950	1000	1050	1100	1150	1200	1250	1300	1350	1400	1450	1500	1550	1600	1650	1700	1750	1800	1850	1900	1950	2000
K		1000	1050	1100	1150	1200	1250	1300	1350	1400	1450	1500	1550	1600	1650	1700	1750	1800	1850	1900	1950	2000	2050	2100	2150	2200

Mass by stroke length

Stroke		800	850	900	950	1000	1050	1100	1150	1200	1250	1300	1350	1400	1450	1500	1550	1600	1650	1700	1750	1800	1850	1900	1950	2000
Mass (kg)	Brake present	17.1	17.7	18.4	19.0	19.6	20.3	20.9	21.5	22.2	22.8	23.4	24.1	24.7	25.4	26.0	26.6	27.3	27.9	28.5	29.2	29.8	30.4	31.1	31.7	32.3
Mass (kg)	Brake absent	17.7	18.3	19.0	19.6	20.2	20.9	21.5	22.1	22.8	23.4	24.0	24.7	25.3	25.9	26.6	27.2	27.8	28.5	29.1	29.8	30.4	31.0	31.7	32.3	32.9
