ISB-WXM-750
ISPB-WXM-750

Product feature

Attachment orientation

Dimension drawing
Important notes on selection
Adaptive controller

Main specification

Specification 1

Heading			Contents
Lead		Ball screw lead (mm)	50	25	10	10 (High Payload Setting)
Horizontal	Load capacity	Maximum load capacity (kg)	80	160	200	100 - 400 (Note3)
	Speed/ Acceleration/Deceleration	Maximum speed (mm/s)	2500	1250	600	600
		Rated acceleration/deceleration (G)	0.3	0.3	0.3	0.2
		Maximum acceleration/deceleration (G)	1.2	1.2	0.6	0.6
Vertical	Load capacity	Maximum load capacity (kg)	14	29	65	40 - 70 (Note3)
	Speed/ Acceleration/Deceleration	Maximum speed (mm/s)	2500	1250	600	600
		Rated acceleration/deceleration (G)	0.3	0.3	0.3	0.2
		Maximum acceleration/deceleration (G)	1	1	0.5	0.5
Thrust		Rated thrust (N)	255	510	1021	1021
Brake		Brake specification	Non-excitation electromagnetic brake
Brake		Brake retention force (kgf)	14	29	70	70
Stroke		Minimum stroke (mm)	100	100	100	100
		Maximum stroke (mm)	1300	1300	1300	1300
		Stroke pitch (mm)	50	50	50	50

(Note3) This is the value when the high payload setting (HLA) option is selected. To ensure a stable operation, please fix the setting to 100kg or above if installed horizontally, and 40kg or above if installed vertically.

Specification 2

Heading	Contents
Drive system	Ballscrew Lead 10: φ20, Lead 25, 50: φ25mm Rolled C10　【C5 equivalent】
Accuracy of Repeating Positioning.	±0.01mm　【±0.005mm】
Lost motion	0.05mm or below　[0.02mm or below]
Base	Base: Aluminum, with white alumite treatment
Linear guide	Infinite linear circulation type
Allowable static moment value	Ma：774N･m
	Mb：1106N･m
	Mc：2175N･m
Allowable dynamic moment (Note4)	Ma：162N･m
	Mb：231N･m
	Mc：455N･m
Ambient operating temperature and humidity	0 - 40℃, 85% RH Max (Non-condensing)
Protection grade	－
Vibration resistant/Shock resistant	4.9m/s²
Compatible to overseas standards	CE mark, RoHS compliant
Motor type	AC servo motor (200V)
Encoder type	Battery-less Absolute (17bit)
Encoder pulse No.	131072 pulse/rev
Delivery	Written in [Reference for delivery] section of the homepage

(Note4) Assumes a standard rated life of 10,000km. Life time travelling distance differs based on operating condition and attached condition. Check the operating life on page 1-180 of the General Catalogue 2020.

(Note) Values in the [] is the value for ISPB.

Slider type moment direction

Load capacity by speed and acceleration table

The base unit for load capacity is kilogram (kg). Empty column refers to inoperable motion.

Orientation		Horizontal											Vertical
Lead (mm)	Maximum speed (mm/s)	Acceleration (G)
Lead (mm)	Maximum speed (mm/s)	0.2	0.3	0.4	0.5	0.6	0.7	0.8	0.9	1.0	1.1	1.2	0.2	0.3	0.4	0.5	0.6	0.7	0.8	0.9	1.0
50	2500	80	80	60	48	40	34	30	27	23	18	15	14	14	14	14	14	13	12	11	10
25	1250	160	160	120	96	80	68	60	54	46	36	30	29	29	29	29	29	26	24	22	20
10	600	200	200	150	120	100							65	65	60	50
10 (High Payload Setting)	600	400	265	200	160	135							70	70	68	64

Stroke and maximum speed

(Measured in mm/s)

Stroke lead	100 - 800	850	950	1050	1150	1250
50	2500		2260	1840	1570	1360
25	1250		1130	920	785	680
10	600	460	380	320	270	235

Adaptive controller

The actuators introduced in this page are controllable using the controllers shown below. Please select their type based on intended usage.

Name	Max. connectable axis No.	Power source voltage	Control method															Maximum positioning points
			Positioner	Pulse train	Program	Network *Select
			Positioner	Pulse train	Program	DV	CC	CIE	PR	CN	ML	ML3	EC	EP	PRT	SSN	ECM
RCON	16	DC24V, single phase AC200V, three phase AC200V	－	－	－	●	●	●	●	－	－	－	●	●	●	－	－	128
RSEL	8	DC24V, single phase AC200V, three phase AC200V	－	－	●	●	●	●	●	－	－	－	●	●	●	－	－	36000
SCON-CB/CGB	1	Single phase AC200V	●	●	－	●	●	●	●	●	●	●	●	●	●	－	－	512 (768 for network specification)
SSEL-CS	2	Single phase AC200V	●	－	●	●	●	－	●	－	－	－	－	●	－	－	－	20000
XSEL-P/Q	6	Single phase AC200V Three-phase AC200V	－	－	●	●	●	－	●	－	－	－	－	●	－	－	－	20000
XSEL-RA/SA	8	Single phase AC200V Three-phase AC200V	－	－	●	●	●	－	●	－	－	－	●	●	－	－	－	55000 (Vary based on type)

(Note) Refer to page 7-17 of the General Catalog 2020 for network abbreviation symbols such as DV and CC.

Important notes on selection

(1) The load capacity shown in the "Main specification" refers to their maximum value. Please refer to "Load capacity by speed and acceleration table" for further information.
(2) Available duty depends on the operating condition (e.g.load mass, acceleration/deceleration). Please refer to page 1-288 in General Catalogue 2020 for further details.
(3) Precaution is required depending on attachment orientation. Please refer to page 1-199 in General Catalogue 2020 for further details.
(4) The standard value for offset load lengths are 900mm and below, towards the direction of Ma, Mb and Mc.

Return to the page top

Oversea specification

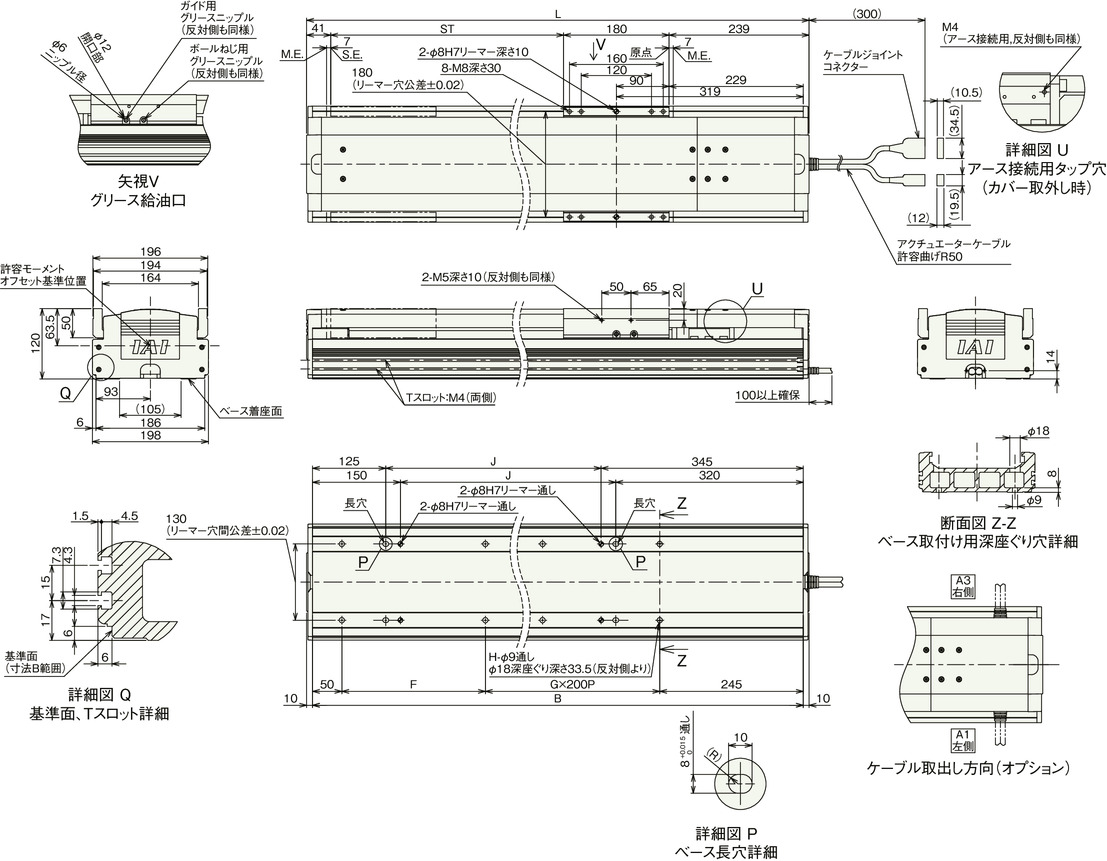

Dimension drawing

ST: Stroke

M.E.: Mechanical end

S.E.: Stroke end

(Note) Cable joint connector shall have the motor cable and encoder cable connected to it.

(Note) Please be careful while returning to the home position, for there is a chance of collision while having the slider returning to the M.E. position.

(Note) Please take note that return setting has to be adjusted to change the originating direction.

(Note) The external dimension is identical for both product specification, which are with or without brake.

Dimension by stroke length

Stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300
L	560	610	660	710	760	810	860	910	960	1010	1060	1110	1160	1210	1260	1310	1360	1410	1460	1510	1560	1610	1660	1710	1760
B	540	590	640	690	740	790	840	890	940	990	1040	1090	1140	1190	1240	1290	1340	1390	1440	1490	1540	1590	1640	1690	1740
F	245	295	145	195	245	295	145	195	245	295	145	195	245	295	145	195	245	295	145	195	245	295	145	195	245
G	0	0	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5	5	6	6	6
H	4	4	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14	14	16	16	16
J	70	120	170	220	270	320	370	420	470	520	570	620	670	720	770	820	870	920	970	1020	1070	1120	1170	1220	1270

Mass by stroke length

Stroke		100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300
Mass (kg)	Without brake	18.3	19.3	20.4	21.5	22.5	23.6	24.6	25.7	26.8	27.8	28.9	29.9	31.0	32.0	33.1	34.2	35.2	36.3	37.3	38.4	39.5	40.5	41.6	42.6	43.7
Mass (kg)	With brake	18.8	19.8	20.9	22.0	23.0	24.1	25.1	26.2	27.3	28.3	29.4	30.4	31.5	32.5	33.6	34.7	35.7	36.8	37.8	38.9	40.0	41.0	42.1	43.1	44.2
