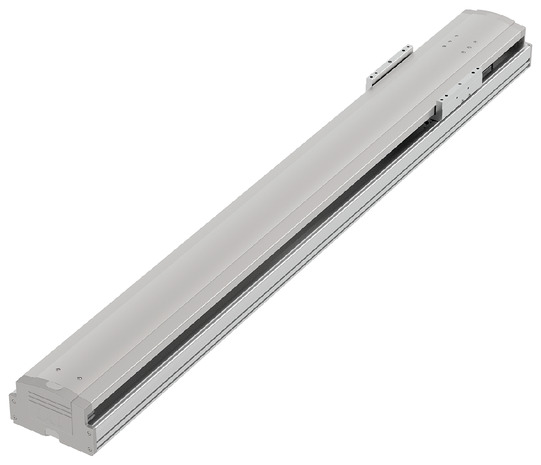

ISB-WXMX-750
ISPB-WXMX-750

Product feature

Attachment orientation

Dimension drawing
Important notes on selection
Adaptive controller

Main specification

Specification 1

Heading			Contents
Lead		Ball screw lead (mm)	50	25
Horizontal	Load capacity	Maximum load capacity (kg)	80	160
	Speed/ Acceleration/Deceleration	Maximum speed (mm/s)	2500	1250
		Rated acceleration/deceleration (G)	0.3	0.3
		Maximum acceleration/deceleration (G)	1.2	1.2
Vertical	Load capacity	Maximum load capacity (kg)	-	-
	Speed/ Acceleration/Deceleration	Maximum speed (mm/s)	-	-
		Rated acceleration/deceleration (G)	-	-
		Maximum acceleration/deceleration (G)	-	-
Thrust		Rated thrust (N)	255	510
Stroke		Minimum stroke (mm)	900	900
		Maximum stroke (mm)	3000	3000
		Stroke pitch (mm)	50	50

Specification 2

Heading	Contents
Drive system	Ball screw, φ25mm, rolled C10 [equivalent to rolled C5]
Accuracy of Repeating Positioning.	±0.01mm　【±0.005mm】
Lost motion	0.05mm or below　[0.02mm or below]
Base	Base: Aluminum, with white alumite treatment
Linear guide	Infinite linear circulation type
Allowable static moment value	Ma：774N･m
	Mb：1106N･m
	Mc：2175N･m
Allowable dynamic moment value (Note2)	Ma：162N･m
	Mb：231N･m
	Mc：455N･m
Ambient operating temperature and humidity	0 - 40℃, 85% RH Max (Non-condensing)
Protection grade	－
Vibration resistant/Shock resistant	4.9m/s²
Compatible to overseas standards	CE mark, RoHS compliant
Motor type	AC servo motor (200V)
Encoder type	Battery-less Absolute (17bit)
Encoder pulse No.	131072 pulse/rev
Delivery	Written in [Reference for delivery] section of the homepage

(Note2) Applicable to products with standard rated life span of 10,000km. Life time travelling distance differs based on operating condition and attached condition. Check the operating life on page 1-180 of the General Catalogue 2020.

(Note) Values in the [] is the value for ISPB.

Slider type moment direction

Load capacity by speed and acceleration table

The base unit for load capacity is kilogram (kg).

Orientation		Horizontal
Lead (mm)	Maximum speed (mm/s)	Acceleration (G)
Lead (mm)	Maximum speed (mm/s)	0.2	0.3	0.4	0.5	0.6	0.7	0.8	0.9	1.0	1.1	1.2
50	2500	80	80	60	48	40	34	30	27	23	18	15
25	1250	160	160	120	96	80	68	60	54	46	36	30

Stroke and maximum speed

(Measured in mm/s)

Stroke lead	900 - 3000
50	2500
25	1250

Adaptive controller

The actuators introduced in this page are controllable using the controllers shown below. Please select their type based on intended usage.

Name	Max. connectable axis No.	Power source voltage	Control method															Maximum positioning points
			Positioner	Pulse train	Program	Network *Select
			Positioner	Pulse train	Program	DV	CC	CIE	PR	CN	ML	ML3	EC	EP	PRT	SSN	ECM
RCON	16	DC24V, single phase AC200V, three phase AC200V	－	－	－	●	●	●	●	－	－	－	●	●	●	－	－	128
RSEL	8	DC24V, single phase AC200V, three phase AC200V	－	－	●	●	●	●	●	－	－	－	●	●	●	－	－	36000
SCON-CB/CGB	1	Single phase AC200V	●	●	－	●	●	●	●	●	●	●	●	●	●	－	－	512 (768 for network specification)
SSEL-CS	2	Single phase AC200V	●	－	●	●	●	－	●	－	－	－	－	●	－	－	－	20000
XSEL-P/Q	6	Single phase AC200V Three-phase AC200V	－	－	●	●	●	－	●	－	－	－	－	●	－	－	－	20000
XSEL-RA/SA	8	Single phase AC200V Three-phase AC200V	－	－	●	●	●	－	●	－	－	－	●	●	－	－	－	55000 (Vary based on type)

(Note) Refer to page 7-17 of the General Catalog 2020 for network abbreviation symbols such as DV and CC.

Important notes on selection

(1) The load capacity shown in the "Main specification" refers to their maximum value. Please refer to "Load capacity by speed and acceleration table" for further information.
(2) Available duty depends on the operating condition (e.g.load mass, acceleration/deceleration). Please refer to page 1-288 in General Catalogue 2020 for further details.
(3) Precaution is required depending on attachment orientation. Please refer to page 1-199 in General Catalogue 2020 for further details.
(4) The standard value for offset load lengths are 900mm and below, towards the direction of Ma, Mb and Mc.

Return to the page top

Oversea specification

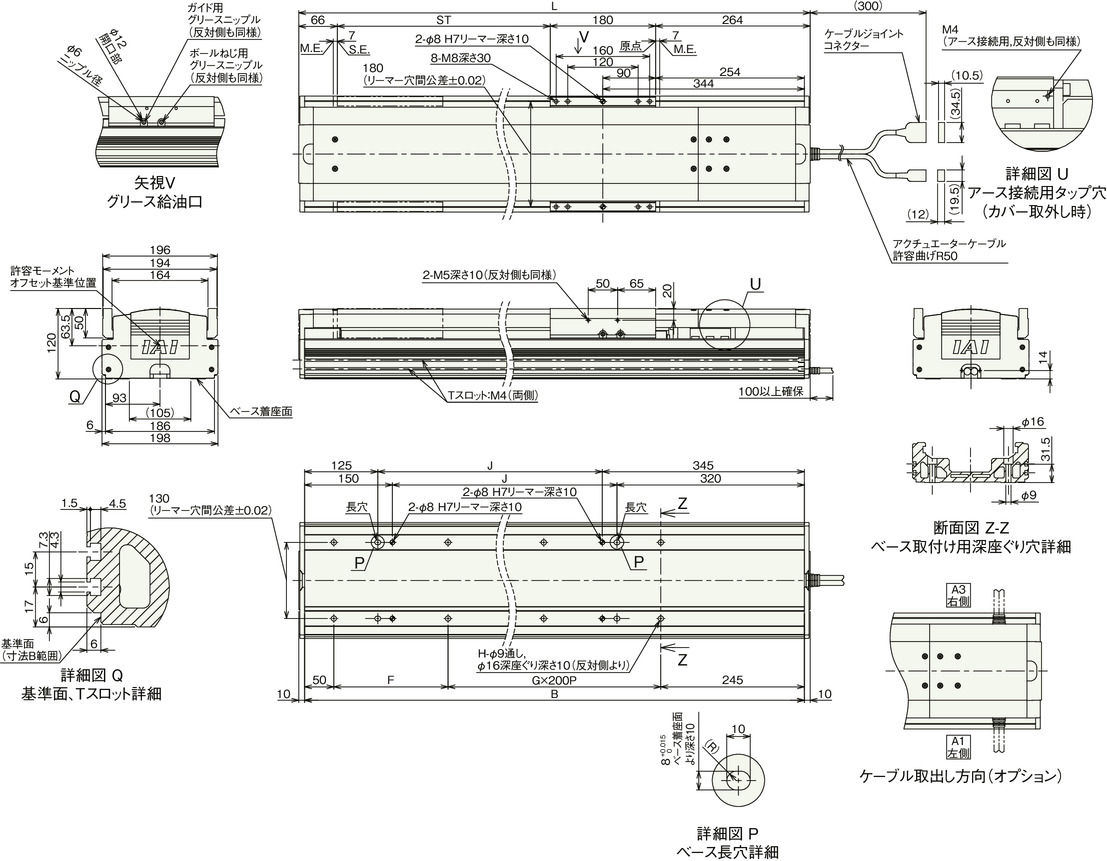

Dimension drawing

ST: Stroke

M.E.: Mechanical end

S.E.: Stroke end

(Note) Cable joint connector shall have the motor cable and encoder cable connected to it.

(Note) Please be careful while returning to the home position, for there is a chance of collision while having the slider returning to the M.E. position.

(Note) Please take note that return setting has to be adjusted to change the originating direction.

Dimension by stroke length

Stroke	900	950	1000	1050	1100	1150	1200	1250	1300	1350	1400	1450	1500	1550	1600	1650	1700	1750	1800	1850	1900	1950	2000	2050	2100	2150	2200	2250	2300	2350	2400	2450	2500	2550	2600	2650	2700	2750	2800	2850	2900	2950	3000
L	1410	1460	1510	1560	1610	1660	1710	1760	1810	1860	1910	1960	2010	2060	2110	2160	2210	2260	2310	2360	2410	2460	2510	2560	2610	2660	2710	2760	2810	2860	2910	2960	3010	3060	3110	3160	3210	3260	3310	3360	3410	3460	3510
B	1390	1440	1490	1540	1590	1640	1690	1740	1790	1840	1890	1940	1990	2040	2090	2140	2190	2240	2290	2340	2390	2440	2490	2540	2590	2640	2690	2740	2790	2840	2890	2940	2990	3040	3090	3140	3190	3240	3290	3340	3390	3440	3490
F	295	145	195	245	295	145	195	245	295	145	195	245	295	145	195	245	295	145	195	245	295	145	195	245	295	145	195	245	295	145	195	245	295	145	195	245	295	145	195	245	295	145	195
G	4	5	5	5	5	6	6	6	6	7	7	7	7	8	8	8	8	9	9	9	9	10	10	10	10	11	11	11	11	12	12	12	12	13	13	13	13	14	14	14	14	15	15
H	12	14	14	14	14	16	16	16	16	18	18	18	18	20	20	20	20	22	22	22	22	24	24	24	24	26	26	26	26	28	28	28	28	30	30	30	30	32	32	32	32	34	34
J	920	970	1020	1070	1120	1170	1220	1270	1320	1370	1420	1470	1520	1570	1620	1670	1720	1770	1820	1870	1920	1970	2020	2070	2120	2170	2220	2270	2320	2370	2420	2470	2520	2570	2620	2670	2720	2770	2820	2870	2920	2970	3020

Mass by stroke length

Stroke	900	950	1000	1050	1100	1150	1200	1250	1300	1350	1400	1450	1500	1550	1600	1650	1700	1750	1800	1850	1900	1950	2000	2050	2100	2150	2200	2250	2300	2350	2400	2450	2500	2550	2600	2650	2700	2750	2800	2850	2900	2950	3000
Mass (kg)	38.4	39.5	40.5	41.6	42.7	43.7	44.8	45.8	46.9	48.0	49.0	50.1	51.2	52.2	54.2	55.3	56.4	57.4	58.5	59.6	60.6	61.7	62.7	63.8	64.9	65.9	67.0	68.1	69.1	70.2	71.3	72.3	73.4	74.5	76.5	77.5	78.6	79.7	80.7	81.8	82.8	83.9	85.0
