Main specification
Heading | Contents | |||
---|---|---|---|---|
Lead | Ball screw lead (mm) | 50 | 25 | |
Horizontal | Load capacity | Maximum load capacity (kg) | 60 | 120 |
Speed/ Acceleration/Deceleration | Maximum speed (mm/s) | 2000 | 1250 | |
Rated acceleration/deceleration (G) | 0.3 | 0.3 | ||
Maximum acceleration/deceleration (G) | 0.3 | 0.3 | ||
Vertical | Load capacity | Maximum load capacity (kg) | - | - |
Speed/ Acceleration/Deceleration | Maximum speed (mm/s) | - | - | |
Rated acceleration/deceleration (G) | - | - | ||
Maximum acceleration/deceleration (G) | - | - | ||
Thrust | Rated thrust (N) | 255 | 510 | |
Cleanroom Compatible | Suction amount (Nl/min) | 120 | 60 | |
Brake | Brake specification | Non-excitation electromagnetic brake | ||
Brake retention force (kgf) | - | - | ||
Stroke | Minimum stroke (mm) | 900 | 900 | |
Maximum stroke (mm) | 2500 | 2500 | ||
Stroke pitch (mm) | 50 | 50 |
Heading | Contents |
---|---|
Drive system | Ball screw, φ25mm, rolled C10 [equivalent to rolled C5] |
Accuracy of Repeating Positioning. | ±0.02mm [±0.01mm] |
Lost motion | 0.05mm or less [0.02mm or less] |
Base | Base: Aluminum, with white alumite treatment |
Linear guide | Infinite linear circulation type |
Allowable static moment value | Ma:610N・m |
Mb:872N・m | |
Mc:1924N・m | |
Allowable dynamic moment (Note 1) | Ma:162N・m |
Mb:231N・m | |
Mc:455N・m | |
Cleanliness | Class 10 (0.1 μm, Fed.Std.209D), Class 2.5 equivalent (ISO 14644-1 Standard) |
Ambient operating temperature and humidity | 0 - 40℃, RH 85% and below (no condensation) |
Protection grade | IP20 |
Vibration resistant/Shock resistant | 4.9m/s2 |
Compatible to overseas standards | CE mark, RoHS compliant |
Motor type | AC servo motor |
Encoder type | Incremental/Absolute |
Encoder pulse No. | 16384 pulse/rev |
Delivery | Written in [Reference for delivery] section of the homepage |
(Note 1) For standard rated life of 10,000 km. Life time travelling distance differs based on operating condition and attached condition. Refer to page 1-244 for the running life span.
(Note) 【 】 are for ISPDACR.
Slider type moment direction
Stroke and maximum speed
(Measured in mm/s)
Stroke lead | 900 - 1500 | 1550 ・ 1600 | 1650 ・ 1700 | 1750 ・ 1800 | 1850 ・ 1900 | 1950 ・ 2000 | 2050 ・ 2100 | 2150 ・ 2200 | 2250 ・ 2300 | 2350 ・ 2400 | 2450 ・ 2500 |
---|---|---|---|---|---|---|---|---|---|---|---|
50 | 2000 | 1930 | 1740 | 1580 | 1440 | 1320 | 1210 | 1115 | 1035 | ||
25 | 1250 | 1200 | 1075 | 965 | 870 | 790 | 720 | 660 | 605 | 555 | 515 |

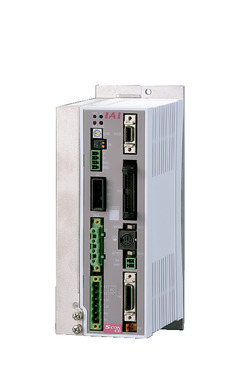

Adaptive controller
The actuators introduced in this page are controllable using the controllers shown below. Please select their type based on intended usage.
Name | Appearance | Max. connectable axis No. | Power source voltage | Control method | Maximum positioning points | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Positioner | Pulse train | Program | Network *Select | ||||||||||||||||
DV | CC | CIE | PR | CN | ML | ML3 | EC | EP | PRT | SSN | ECM | ||||||||
RCON | 16 (ML3,SSN,ECM is 8) | DC24V, single phase AC200V, three phase AC200V | - | - | - | ● | ● | ● | ● | - | - | ● | ● | ● | ● | ● | ● | 128 (Position data unavailable for ML3, SSN and ECM) | |
RSEL | 8 | - | - | ● | ● | ● | ● | ● | - | - | - | ● | ● | ● | - | - | 36000 | ||
SCON-CB/CGB | 1 | Single phase AC200V | ● | ● | - | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | - | ● | 512 (768 for network specification) | |
SSEL-CS | 2 | ● | - | ● | ● | ● | - | ● | - | - | - | - | ● | - | - | - | 20000 | ||
XSEL-P/Q | 6 | Single phase AC200V Three-phase AC200V | - | - | ● | ● | ● | - | ● | - | - | - | - | ● | - | - | - | 20000 | |
XSEL-RA/SA | 8 | - | - | ● | ● | ● | - | ● | - | - | - | ● | ● | - | - | - | 55000 (depending on type) |
(Note) Refer to page 8-17 for network abbreviations such as DV and CC.
(Note) Please use the controller with a limit switch feature for the WX type has a home limit switch as standard.
(Note) RCON-SC can't be connected to actuator of an absolute.
Oversea specification
Important notes on selection
(1) Maximum speed drops when the stroke length increase, preventing it from reaching the critical revolution value of the ball screws. Please refer to "Strokes and max. speed" for maximum speed by stroke lengths. (2) The payload of the "Main Specification" shows the maximum value operated at a maximum acceleration of 0.3G. (3) The standard value for offset load lengths are 800mm and below, towards the direction of Ma, Mb and Mc. |
Dimension drawing
ST: Stroke
M.E.: Mechanical end
S.E.: Stroke end
(Note) Motor cable/encoder cable and limit switch cable has to be connected to the cable joint connector. Refer to page 1-115 for the cable details.
(Note) Please be careful while returning to the home position, for there is a chance of collision while having the slider returning to the M.E. position.
(Note) Please take note that return setting has to be adjusted to change the originating direction.
(Note) The allowable moment offset reference position is 83.5mm from the slider work mounting position.
(Note) Due to its structure, the intermediate support type cannot be used in the horizontal (laid laterally) and vertical directions.
(Note) The external dimensions are the same even with the brake.
Dimension by stroke length
Stroke | 900 | 950 | 1000 | 1050 | 1100 | 1150 | 1200 | 1250 | 1300 | 1350 | 1400 | 1450 | 1500 | 1550 | 1600 | 1650 | 1700 | 1750 | 1800 | 1850 | 1900 | 1950 | 2000 | 2050 | 2100 | 2150 | 2200 | 2250 | 2300 | 2350 | 2400 | 2450 | 2500 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
L | 1565 | 1615 | 1665 | 1715 | 1765 | 1815 | 1865 | 1915 | 1965 | 2015 | 2065 | 2115 | 2165 | 2215 | 2265 | 2315 | 2365 | 2415 | 2465 | 2515 | 2565 | 2615 | 2665 | 2715 | 2765 | 2815 | 2865 | 2915 | 2965 | 3015 | 3065 | 3115 | 3165 |
B | 1545 | 1595 | 1645 | 1695 | 1745 | 1795 | 1845 | 1895 | 1945 | 1995 | 2045 | 2095 | 2145 | 2195 | 2245 | 2295 | 2345 | 2395 | 2445 | 2495 | 2545 | 2595 | 2645 | 2695 | 2745 | 2795 | 2845 | 2895 | 2945 | 2995 | 3045 | 3095 | 3145 |
C | 170 | 220 | 70 | 120 | 170 | 220 | 70 | 120 | 170 | 220 | 70 | 120 | 170 | 220 | 70 | 120 | 170 | 220 | 70 | 120 | 170 | 220 | 70 | 120 | 170 | 220 | 70 | 120 | 170 | 220 | 70 | 120 | 170 |
D | 5 | 5 | 6 | 6 | 6 | 6 | 7 | 7 | 7 | 7 | 8 | 8 | 8 | 8 | 9 | 9 | 9 | 9 | 10 | 10 | 10 | 10 | 11 | 11 | 11 | 11 | 12 | 12 | 12 | 12 | 13 | 13 | 13 |
E | 16 | 16 | 18 | 18 | 18 | 18 | 20 | 20 | 20 | 20 | 22 | 22 | 22 | 22 | 24 | 24 | 24 | 24 | 26 | 26 | 26 | 26 | 28 | 28 | 28 | 28 | 30 | 30 | 30 | 30 | 32 | 32 | 32 |
J | 1245 | 1295 | 1345 | 1395 | 1445 | 1495 | 1545 | 1595 | 1645 | 1695 | 1745 | 1795 | 1845 | 1895 | 1945 | 1995 | 2045 | 2095 | 2145 | 2195 | 2245 | 2295 | 2345 | 2395 | 2445 | 2495 | 2545 | 2595 | 2645 | 2695 | 2745 | 2795 | 2845 |
Mass by stroke length
Stroke | 900 | 950 | 1000 | 1050 | 1100 | 1150 | 1200 | 1250 | 1300 | 1350 | 1400 | 1450 | 1500 | 1550 | 1600 | 1650 | 1700 | 1750 | 1800 | 1850 | 1900 | 1950 | 2000 | 2050 | 2100 | 2150 | 2200 | 2250 | 2300 | 2350 | 2400 | 2450 | 2500 | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mass (kg) | Without brake | 44.5 | 45.5 | 46.6 | 47.6 | 48.6 | 49.6 | 50.6 | 51.6 | 52.6 | 53.7 | 54.7 | 55.7 | 56.7 | 57.7 | 58.7 | 59.7 | 60.8 | 61.8 | 62.8 | 63.8 | 64.8 | 65.8 | 66.9 | 67.9 | 68.9 | 69.9 | 70.9 | 71.9 | 72.9 | 74.0 | 75.0 | 76.0 | 77.0 |
With brake | 45.0 | 46.0 | 47.1 | 48.1 | 49.1 | 50.1 | 51.1 | 52.1 | 53.1 | 54.2 | 55.2 | 56.2 | 57.2 | 58.2 | 59.2 | 60.2 | 61.3 | 62.3 | 63.3 | 64.3 | 65.3 | 66.3 | 67.4 | 68.4 | 69.4 | 70.4 | 71.4 | 72.4 | 73.4 | 74.5 | 75.5 | 76.5 | 77.5 |
