NSA-LXMXM

Product feature

Attachment orientation

User's manual PDF

Dimension drawing
Important notes on selection
Adaptive controller

Main specification

Specification 1

Heading			Contents
Lead		Ball screw lead (mm)	40	20
Horizontal	Load capacity	Maximum load capacity (kg)	40	80
	Speed/ Acceleration/Deceleration	Maximum speed (mm/s)	2400	1300
		Rated acceleration/deceleration (G)	0.3	0.3
		Maximum acceleration/deceleration (G)	0.8	0.9
Thrust		Rated thrust (N)	169.6	339.1
Stroke		Minimum stroke (mm)	2300	2300
		Maximum stroke (mm)	2700	2700
		Stroke pitch (mm)	50	50

Specification 2

Heading	Contents
Drive system	Ball screw φ20mm, rolled C5 equivalent
Accuracy of Repeating Positioning.	±0.01mm
Lost motion	0.02mm and below
Base	Base: Aluminum, with white alumite treatment
Linear guide	Infinite linear circulation type
Allowable static moment value	Ma ： 774 N・m
	Mb ： 1106 N・m
	Mc ： 1566 N・m
Allowable dynamic moment (Note3)	Ma ： 162 N・m
	Mb ： 231 N・m
	Mc ： 327 N・m
Ambient operating temperature and humidity	0 - 40℃, 85% RH Max (Non-condensing)
Protection grade	－
Vibration resistant/Shock resistant	4.9m/s²
Compatible to overseas standards	CE mark, RoHS compliant
Motor type	AC servo motor (200V)
Encoder type	Battery-less Absolute (17bit)
Encoder pulse number	131072 pulse/rev
Delivery	Written in [Reference for delivery] section of the homepage

(Note3) Assumes a basic rated life of 10,000km. Life time travelling distance differs based on operating condition and attached condition. Check the operating life on page 1-180 of the General Catalogue 2020.

Slider type moment direction

Load capacity by speed and acceleration table

The base unit for load capacity is kilogram (kg).

Lead	Maximum speed	Acceleration/Deceleration (G)
（mm）	(mm/s)	0.3	0.4	0.5	0.6	0.7	0.8	0.9
40	2400	40	30	20	15	10	7	－
20	1300	80	60	40	30	20	15	7

Stroke and maximum speed

(Measured in mm/s)

Stroke lead	2300 - 2700 (each 50mm)
40	2400
20	1300

Adaptive controller

The actuators introduced in this page are controllable using the controllers shown below. Please select their type based on intended usage.

Name	Max. connectable axis No.	Power source voltage	Control method															Maximum positioning points
			Positioner	Pulse train	Program	Network ※Select
			Positioner	Pulse train	Program	DV	CC	CIE	PR	CN	ML	ML3	EC	EP	PRT	SSN	ECM
RCON	16	DC24V, single phase AC200V, three phase AC200V	－	－	－	●	●	●	●	－	－	－	●	●	●	－	－	128
RSEL	8	DC24V, single phase AC200V, three phase AC200V	－	－	●	●	●	●	●	－	－	－	●	●	●	－	－	36000
SCON-CB/CGB	1	Single phase AC 200V	●	●	－	●	●	●	●	●	●	●	●	●	●	－	－	512 (768 for network specification)
SSEL-CS	2	Single phase AC 100V/200V	●	－	●	●	●	－	●	－	－	－	－	●	－	－	－	20000
XSEL-P/Q	6	Single phase AC200V Three-phase AC200V	－	－	●	●	●	－	●	－	－	－	－	●	－	－	－	20000
XSEL-RA/SA	8	Single phase AC200V Three-phase AC200V	－	－	●	●	●	－	●	－	－	－	●	●	－	－	－	55000 (Vary based on type)

(Note) Refer to page 7-17 of the General Catalog 2020 for network abbreviation symbols such as DV and CC.

(Note) 2 SCON units, or a 2-axis controller is required to control a multi slider.

Important notes on selection

(1) The load capacity shown in the "Main specification" refers to their maximum value. Please refer to "Load capacity by speed and acceleration table" for further information.
(2) The center of gravity of the mounted object should be 1/2 or less of the overhang distance. Even if the overhang distance and load moment are within the allowable values, if abnormal vibration or noise occurs during operation, loosen the operating conditions before use.
(3) The standard value for offset load lengths are 900mm and below, towards the direction of Ma, Mb and Mc. Refer to the figure on page 69 for the overhang load length.
(4) The guideline of usable duty varies depending on the load factor. Refer to page 69 for further details.
(5) Please refer to page 6 for compatible installation postures.

Return to the page top

Oversea specification

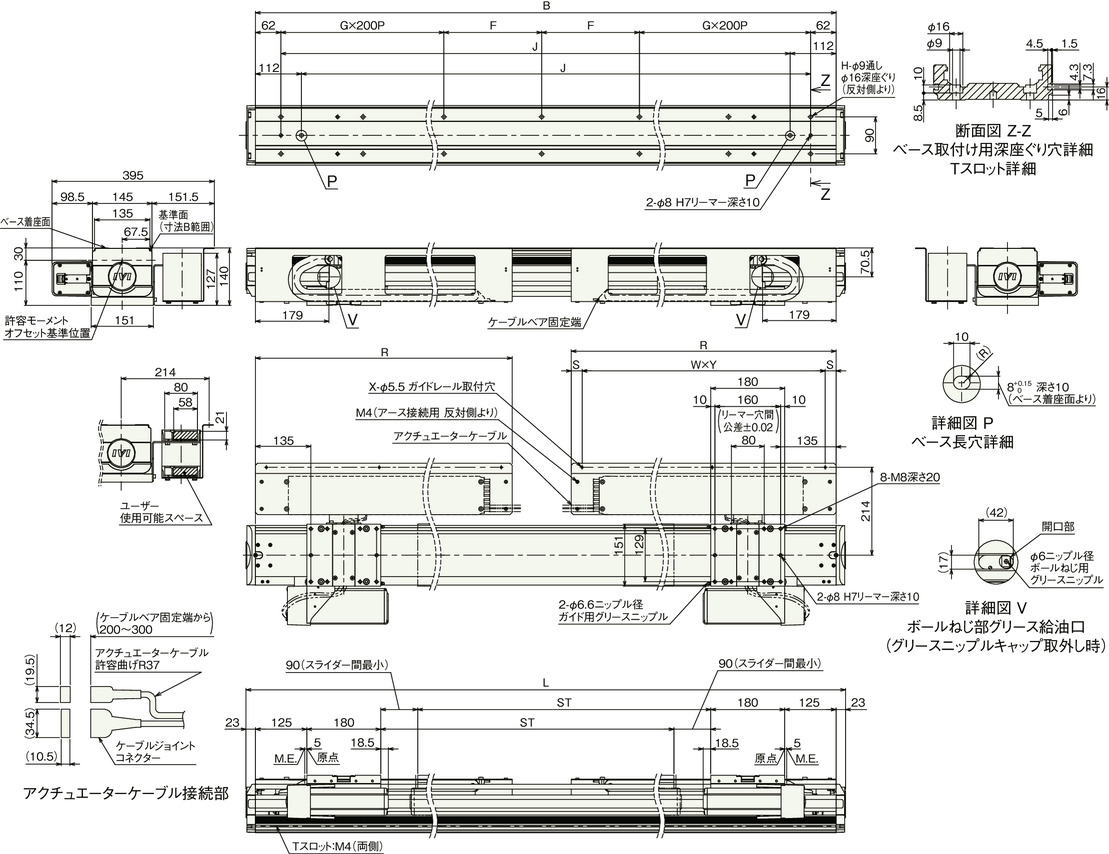

Dimension drawing

NSA-LXMXM_ Standard cable track mounting direction (standard/CT3)

ST: Stroke

M.E.: Mechanical end

(Note) Cable joint connector shall have the motor cable and encoder cable connected to it.

　Refer to page 70 for details of the cable.

(Note) Ensure the slider does not collide with other items, for it will return to M.E. after homing process.

Dimension by stroke length

Stroke	2300	2350	2400	2450	2500	2550	2600	2650	2700
L	3046	3096	3146	3196	3246	3296	3346	3396	3446
B	3000	3050	3100	3150	3200	3250	3300	3350	3400
F	238	263	288	313	138	163	188	213	238
G	6	6	6	6	7	7	7	7	7
H	30	30	30	30	34	34	34	34	34
J	2826	2876	2926	2976	3026	3076	3126	3176	3226
R	1265	1283	1319	1337	1355	1391	1409	1445	1463

Mass by stroke length

Stroke	2300	2350	2400	2450	2500	2550	2600	2650	2700
Mass (kg)	66.1	66.9	67.7	68.5	69.2	70.1	70.9	71.8	72.5

NSA-LXMXM_ User's cable track mounting direction (standard/UM3)

ST: Stroke

M.E.: Mechanical end

(Note) Cable joint connector shall have the motor cable and encoder cable connected to it.

　Refer to page 70 for details of the cable.

(Note) Ensure the slider does not collide with other items, for it will return to M.E. after homing process.

Dimension by stroke length

Stroke	2300	2350	2400	2450	2500	2550	2600	2650	2700
L	3046	3096	3146	3196	3246	3296	3346	3396	3446
B	3000	3050	3100	3150	3200	3250	3300	3350	3400
F	238	263	288	313	138	163	188	213	238
G	6	6	6	6	7	7	7	7	7
H	30	30	30	30	34	34	34	34	34
J	2826	2876	2926	2976	3026	3076	3126	3176	3226
R	1265	1283	1319	1337	1355	1391	1409	1445	1463

Mass by stroke length

Stroke		2300	2350	2400	2450	2500	2550	2600	2650	2700
Mass (kg)	With user cable track	68.8	69.6	70.5	71.3	72.0	73.0	73.8	74.7	75.5
Mass (kg)	Without cable track	61.9	62.7	63.4	64.1	64.8	65.6	66.3	67.1	67.8

NSA-LXMXM_ Expansion cable track mounting direction (standard horizontal/ET5)

ST: Stroke

M.E.: Mechanical end

*1 Please secure space as the cable track may swell.

(Note) Cable joint connector shall have the motor cable and encoder cable connected to it.

　Refer to page 70 for details of the cable.

(Note) Ensure the slider does not collide with other items, for it will return to M.E. after homing process.

Dimension by stroke length

Stroke	2300	2350	2400	2450	2500	2550	2600	2650	2700
L	3046	3096	3146	3196	3246	3296	3346	3396	3446
B	3000	3050	3100	3150	3200	3250	3300	3350	3400
F	238	263	288	313	138	163	188	213	238
G	6	6	6	6	7	7	7	7	7
H	30	30	30	30	34	34	34	34	34
J	2826	2876	2926	2976	3026	3076	3126	3176	3226
R	1447	1472	1496	1522	1547	1572	1596	1622	1646

Mass by stroke length

Stroke	2300	2350	2400	2450	2500	2550	2600	2650	2700
Mass (kg)	69.3	70.1	70.9	71.7	72.4	73.3	74.1	74.9	75.8

NSA-LXMXM_ Extension cable track mounting direction (ceiling mount standard/ET7)

ST: Stroke

M.E.: Mechanical end

(Note) Cable joint connector shall have the motor cable and encoder cable connected to it.

　Refer to page 70 for details of the cable.

(Note) Ensure the slider does not collide with other items, for it will return to M.E. after homing process.

Dimension by stroke length

Stroke	2300	2350	2400	2450	2500	2550	2600	2650	2700
L	3046	3096	3146	3196	3246	3296	3346	3396	3446
B	3000	3050	3100	3150	3200	3250	3300	3350	3400
F	238	263	288	313	138	163	188	213	238
G	6	6	6	6	7	7	7	7	7
H	30	30	30	30	34	34	34	34	34
J	2826	2876	2926	2976	3026	3076	3126	3176	3226
R	1428	1453	1477	1503	1528	1553	1577	1603	1628
S	26.5	26.5	26	26.5	26.5	26.5	26	26.5	26.5
W	5	5	5	5	5	5	5	5	5
X	6	6	6	6	6	6	6	6	6
Y	275	280	285	290	295	300	305	310	315

Mass by stroke length

Stroke	2300	2350	2400	2450	2500	2550	2600	2650	2700
Mass (kg)	72.4	73.3	74.2	75.1	75.9	76.9	77.7	78.6	79.2
