Product feature

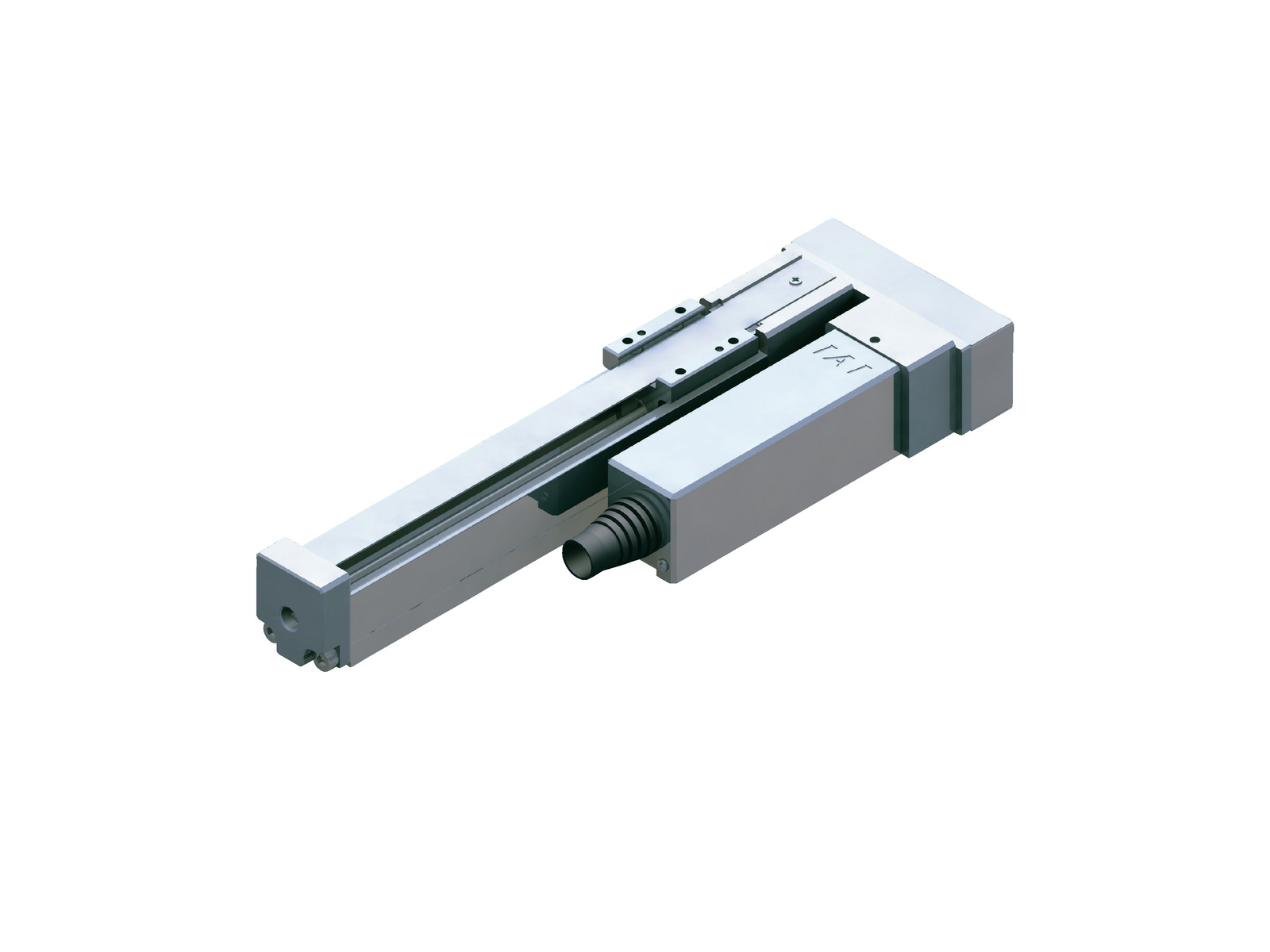

Attachment orientation
(Note) Photo above shows the motor reversing specification (Motor reversing on the left)(ML).
Main specification
| Heading | Contents | ||||
|---|---|---|---|---|---|
| Lead | Sliding screw lead (mm) | 6 | 4 | 2 | |
| Horizontal | Load capacity | Maximum load capacity (kg) | 0.25 | 0.5 | 1 |
| Speed/ Acceleration/Deceleration | Maximum speed (mm/s) | 300 | 200 | 100 | |
| Minimum speed (mm/s) | 8 | 5 | 3 | ||
| Rated acceleration/deceleration (G) | 0.2 | 0.2 | 0.2 | ||
| Maximum acceleration/deceleration (G) | 0.2 | 0.2 | 0.2 | ||
| Vertical | Load capacity | Maximum load capacity (kg) | － | － | － |
| Speed/ Acceleration/Deceleration | Maximum speed (mm/s) | － | － | － | |
| Minimum speed (mm/s) | － | － | － | ||
| Rated acceleration/deceleration (G) | － | － | － | ||
| Maximum acceleration/deceleration (G) | － | － | － | ||
| Pressing motion | Max. pressing thrust (N) | － | － | － | |
| Max. pressing speed (mm/s) | － | － | － | ||
| Stroke | Minimum stroke (mm) | 25 | 25 | 25 | |
| Maximum stroke (mm) | 150 | 150 | 150 | ||
| Stroke pitch (mm) | 25 | 25 | 25 | ||
| Heading | Contents |
|---|---|
| Drive system | Sliding screw φ6mm, rolled C10 |
| Accuracy of Repeating Positioning. | ±0.05mm |
| Lost motion | 0.3mm and below (default value) |
| Base | Material: Aluminum (White anodized) |
| Linear guide | Sliding guide |
| Life time traveling distance | 10,000,000 times (Round trip) |
| Ambient operating temperature and humidity | 0 - 40℃, 85% RH Max (Non-condensing) |
| Protection grade | － |
| Vibration resistant/Shock resistant | 4.9m/s2 100Hz and below |
| Compatible to overseas standards | CE mark, RoHS compliant |
| Motor type | Pulse motor |
| Encoder type | Incremental |
| Encoder pulse No. | 800 pulse/rev |
| Delivery | Written in [Reference for delivery] section of the homepage |
Load capacity by speed and acceleration table
The base unit for load capacity is kilogram (kg).
| Orientation | Horizontal |
|---|---|
| Speed | Acceleration/Deceleration (G) |
| (mm/s) | 0.2 |
| 300 | 0.25 |
| Orientation | Horizontal |
|---|---|
| Speed | Acceleration/Deceleration (G) |
| (mm/s) | 0.2 |
| 200 | 0.5 |
| Orientation | Horizontal |
|---|---|
| Speed | Acceleration/Deceleration (G) |
| (mm/s) | 0.2 |
| 100 | 1 |
Stroke and maximum speed
(Measured in mm/s)
| Stroke lead | 25 （mm） | 50 （mm） | 75～150 （mm） | |
|---|---|---|---|---|
| Sliding screw | 6 | 180 | 280 | 300 |
| 4 | 180 | 200 | ||
| 2 | 100 | |||
Adaptive controller
The actuators introduced in this page are controllable using the controllers shown below. Please select their type based on intended usage.
| Name | Appearance | Max. connectable axis No. | Power source voltage | Control method | Maximum positioning points | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Positioner | Pulse train | Program | Network ※Select | ||||||||||||||||
| DV | CC | CIE | PR | CN | ML | ML3 | EC | EP | PRT | SSN | ECM | ||||||||
| MCON-C/CG |  | 8 | DC24V | － | － | － | ● | ● | ● | ● | ● | － | ● | ● | ● | ● | ● | ● | 256 |
| MCON-LC/LCG |  | 6 | － | － | ● | ● | ● | － | ● | ● | － | － | ● | ● | ● | － | － | 256 | |
| MSEL-PC/PG |  | 4 | Single phase AC 100 - 230V | － | － | ● | ● | ● | － | ● | － | － | － | ● | ● | ● | － | － | 30000 |
| PCON-CB/CGB |  | 1 | DC24V | ● ※Selectable | ● ※Selectable | － | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | － | － | 512 (768 for network specification) |
| PCON-CYB/PLB/POB |  | 1 | ● ※Selectable | ● ※Selectable | － | － | － | － | － | － | － | － | － | － | － | － | － | 64 | |
| RCON |  | 16 | － | － | － | ● | ● | ● | ● | － | － | － | ● | ● | ● | － | － | 128 | |
| PSEL-CS |  | 2 | ● | － | ● | ● | ● | － | ● | － | － | － | － | ● | － | － | － | 1500 | |
(Note) Please refer to page 6 -13 for abbreviated names of network (e.g. DV, CC).
Oversea specification
Important notes on selection
 | (1) The load capacity shown in the "Main specification" refers to their maximum value. Please refer to "Load capacity by speed and acceleration table" for further information. (2) This product operates only in horizontal direction. (3) Usage in dusty environment may degrade the product life span. (4) This model uses sliding screw (※)/sliding guide, hence their usage shall be according to their characteristics. Sliding guide does not support hangover load. (※Refer page 1-102) (5) Encoder type box for model item will be "I" for simple absolute as well. |

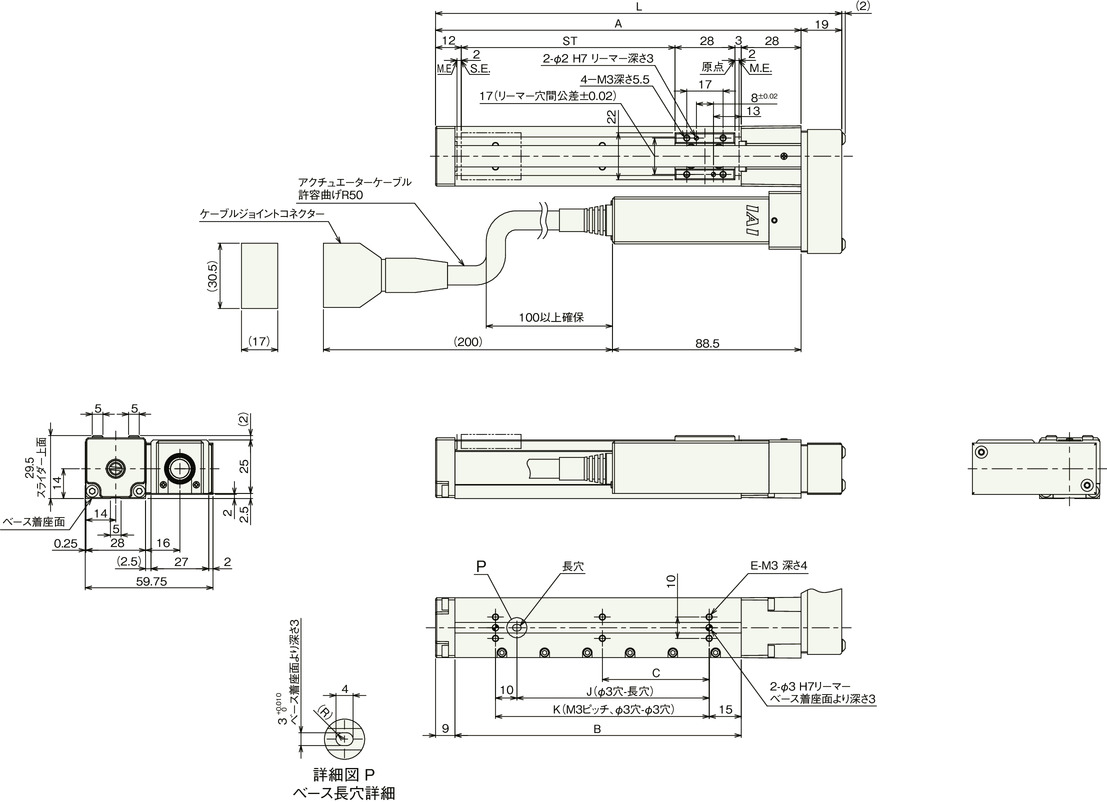

Dimension drawing
ST: Stroke
M.E.: Mechanical end
S.E.: Stroke end
(Note) Connect motor/cable encoder to the cable joint connector. Please refer to page 1- 291 for the further details about the cable.
(Note) Ensure the slider does not collide with other items, for it will return to M.E. after homing process.
(Note) Diagram below is for motor reversing specification (reversing to the left).
Dimension by stroke length
| Stroke | 25 | 50 | 75 | 100 | 125 | 150 |
|---|---|---|---|---|---|---|
| L | 115 | 140 | 165 | 190 | 215 | 240 |
| A | 96 | 121 | 146 | 171 | 196 | 221 |
| B | 59 | 84 | 109 | 134 | 159 | 184 |
| C | 0 | 0 | 0 | 50 | 62.5 | 75 |
| E | 4 | 4 | 4 | 6 | 6 | 6 |
| J | 15 | 40 | 65 | 90 | 115 | 140 |
| K | 25 | 50 | 75 | 100 | 125 | 150 |
Mass by stroke length
| Stroke | 25 | 50 | 75 | 100 | 125 | 150 |
|---|---|---|---|---|---|---|
| Mass (kg) | 0.32 | 0.34 | 0.37 | 0.39 | 0.42 | 0.45 |
