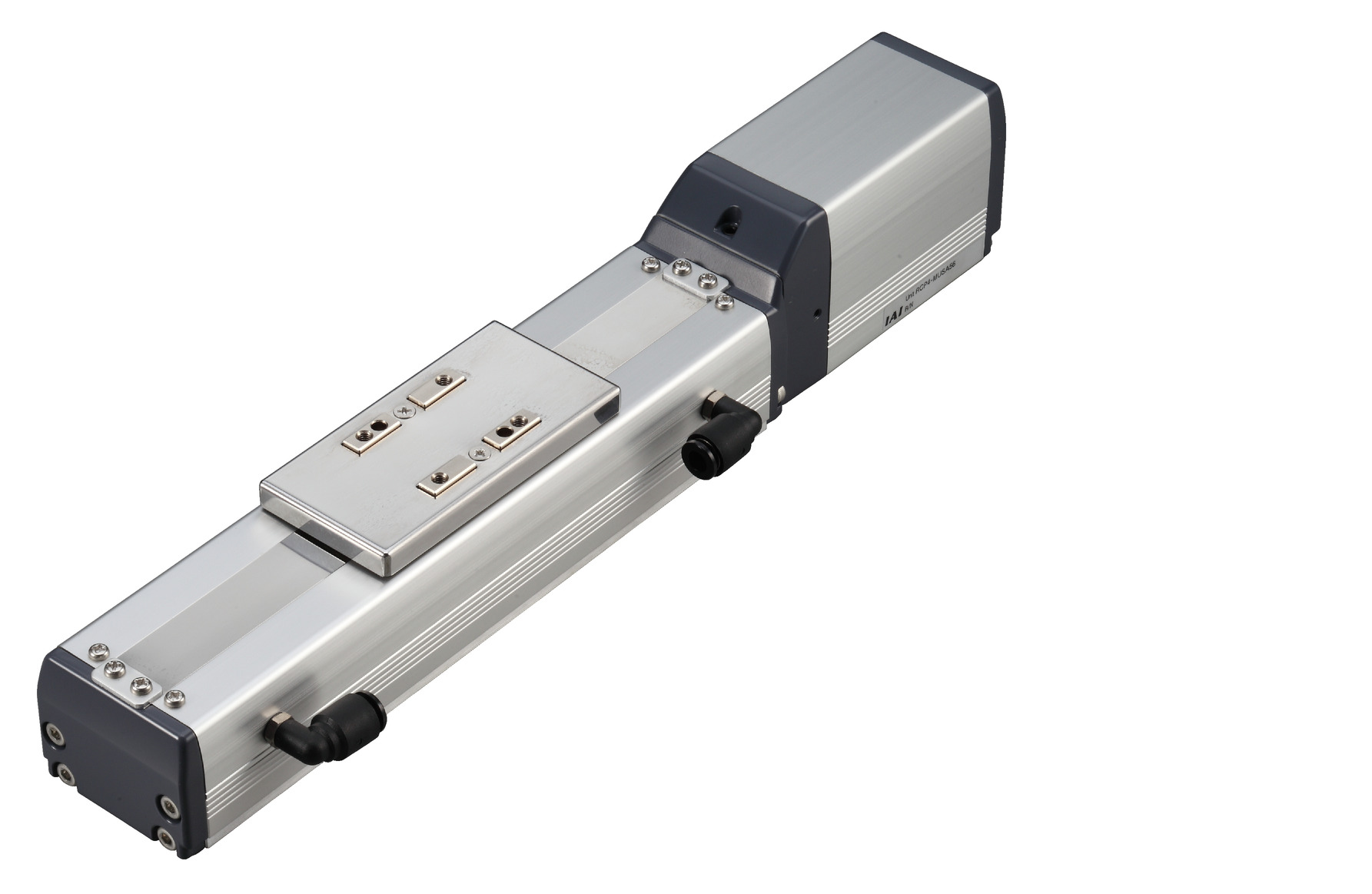

Product feature
Attachment orientation
Main specification
| Heading | Contents | |||||
|---|---|---|---|---|---|---|
| Lead | Ball screw lead (mm) | 20 | 12 | 6 | 3 | |
| Horizontal | Load capacity | Maximum load capacity (kg) (High-power enabled) | 6.5 | 9 | 18 | 20 |
| Maximum load capacity (kg) (High-power disabled) | 5 | 8 | 13 | 16 | ||
| Speed/ Acceleration/Deceleration | Maximum speed (mm/s) | 1440 | 900 | 450 | 225 | |
| Minimum speed (mm/s) | 25 | 15 | 8 | 4 | ||
| Rated acceleration/deceleration (G) | 0.3 | 0.7 | 0.3 | 0.3 | ||
| Maximum acceleration/deceleration (G) | 1 | 1 | 1 | 1 | ||
| Vertical | Load capacity | Maximum load capacity (kg) (High-power enabled) | 1 | 2.5 | 6 | 12 |
| Maximum load capacity (kg) (High-power disabled) | 0.5 | 2 | 5 | 10 | ||
| Speed/ Acceleration/Deceleration | Maximum speed (mm/s) | 1280 | 900 | 450 | 225 | |
| Minimum speed (mm/s) | 25 | 15 | 8 | 4 | ||
| Rated acceleration/deceleration (G) | 0.5 | 0.5 | 0.5 | 0.5 | ||
| Maximum acceleration/deceleration (G) | 0.5 | 0.5 | 0.5 | 0.5 | ||
| Pressing motion | Max. pressing thrust (N) | 56 | 93 | 185 | 370 | |
| Max. pressing speed (mm/s) | 20 | 20 | 20 | 20 | ||
| Cleanroom Compatible | Suction amount (Nl/min) | 80 | 50 | 30 | 15 | |
| Brake | Brake specification | Non-excitation electromagnetic brake | ||||
| Brake retention force (kgf) | 1 | 2.5 | 6 | 12 | ||
| Stroke | Minimum stroke (mm) | 50 | 50 | 50 | 50 | |
| Maximum stroke (mm) | 800 | 800 | 800 | 800 | ||
| Stroke pitch (mm) | 50 | 50 | 50 | 50 | ||
| Heading | Contents |
|---|---|
| Drive system | Ball screw φ10mm, rolled C10 |
| Positioning repeatability (Note 1) | ±0.02mm [0.03mm] |
| Lost motion | 0.1mm or less |
| Base | Base: Aluminum, with white alumite treatment |
| Linear guide | Infinite linear circulation type |
| Allowable static moment value | Ma：18.6N･m |
| Mb：26.6N･m | |
| Mc：47.5N･m | |
| Allowable dynamic moment (Note 2) | Ma：5.81N･m |
| Mb：8.30N･m | |
| Mc：14.8N･m | |
| Cleanliness | Class 10 (0.1 μm, Fed.Std.209D), Class 2.5 equivalent (ISO 14644-1 Standard) |
| Ambient operating temperature and humidity | 0 - 40℃, RH 85% and below (no condensation) |
| Protection grade | IP20 |
| Vibration resistant/Shock resistant | 4.9m/s2 |
| Compatible to overseas standards | CE mark, RoHS compliant |
| Motor type | Pulse motor |
| Encoder type | Incremental |
| Encoder pulse No. | 800 pulse/rev |
| Delivery | Written in [Reference for delivery] section of the homepage |
(Note 1) Values shown in 【 】 applies to lead 20.
(Note 2) For standard rated life of 5,000km. Life time travelling distance differs based on operating condition and attached condition.
Refer to page 1-244 for the running life span.
Slider type moment direction
Stroke and maximum speed
(Measured in mm/s)
| Lead (mm) | Stroke controller | 50 - 450 (Every 50mm) | 500 (mm) | 550 (mm) | 600 (mm) | 650 (mm) | 700 (mm) | 750 (mm) | 800 (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 20 | High Output Enabled | 1440＜1280＞ | 1225 | 1045 | 900 | 785 | 690 | 610 | |
| High Output Disabled | 960 | 900 | 785 | 690 | 610 | ||||
| 12 | High Output Enabled | 900 | 795 | 665 | 570 | 490 | 425 | 375 | 330 |
| High Output Disabled | 600 | 570 | 490 | 425 | 375 | 330 | |||
| 6 | High Output Enabled | 450 | 395 | 335 | 285 | 245 | 215 | 185 | 165 |
| High Output Disabled | 300 | 285 | 245 | 215 | 185 | 165 | |||
| 3 | High Output Enabled | 225 | 195 | 165 | 140 | 120 | 105 | 90 | 80 |
| High Output Disabled | 150 | 140 | 120 | 105 | 90 | 80 | |||
(Note) < > is applicable when operated vertically.

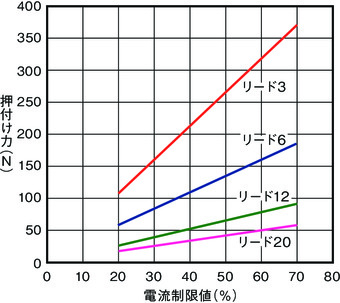

Correlation diagram of pressing force and current limiting value
Loadable mass table by speed/acceleration * Refer to page 1-25 for details on high output settings.
High output setting enabled The maximum speed varies depending on the transport mass. The base unit for load capacity is kilogram (kg). Empty column refers to inoperable motion.
| Orientation | Horizontal | Vertical | ||||||
|---|---|---|---|---|---|---|---|---|
| Speed | Acceleration (G) | |||||||
| (mm/s) | 0.1 | 0.3 | 0.5 | 0.7 | 1 | 0.1 | 0.3 | 0.5 |
| 0 | 6.5 | 6.5 | 5 | 5 | 4 | 1 | 1 | 1 |
| 160 | 6.5 | 6.5 | 5 | 5 | 4 | 1 | 1 | 1 |
| 320 | 6.5 | 6.5 | 5 | 5 | 4 | 1 | 1 | 1 |
| 480 | 6.5 | 6.5 | 5 | 5 | 4 | 1 | 1 | 1 |
| 640 | 6.5 | 6.5 | 5 | 5 | 4 | 1 | 1 | 1 |
| 800 | 6.5 | 6.5 | 5 | 4 | 3 | 1 | 1 | 1 |
| 960 | 6.5 | 5 | 3 | 2 | 1 | 1 | ||
| 1120 | 6 | 3 | 2 | 1.5 | 0.5 | 0.5 | ||
| 1280 | 1 | 1 | 1 | 0.5 | ||||
| 1440 | 1 | 0.5 | ||||||
| Orientation | Horizontal | Vertical | ||||||
|---|---|---|---|---|---|---|---|---|
| Speed | Acceleration (G) | |||||||
| (mm/s) | 0.1 | 0.3 | 0.5 | 0.7 | 1 | 0.1 | 0.3 | 0.5 |
| 0 | 9 | 9 | 9 | 9 | 8 | 2.5 | 2.5 | 2.5 |
| 100 | 9 | 9 | 9 | 9 | 8 | 2.5 | 2.5 | 2.5 |
| 200 | 9 | 9 | 9 | 9 | 8 | 2.5 | 2.5 | 2.5 |
| 300 | 9 | 9 | 9 | 9 | 8 | 2.5 | 2.5 | 2.5 |
| 400 | 9 | 9 | 9 | 9 | 8 | 2.5 | 2.5 | 2.5 |
| 500 | 9 | 9 | 9 | 8 | 6.5 | 2.5 | 2.5 | 2.5 |
| 600 | 9 | 9 | 9 | 6 | 4 | 2.5 | 2.5 | 2.5 |
| 700 | 9 | 9 | 8 | 4 | 2.5 | 2.5 | 2.5 | 2 |
| 800 | 7 | 5 | 2 | 1 | 1.5 | 1 | ||
| 900 | 5 | 3 | 1 | 1 | 0.5 | 0.5 | ||
| Orientation | Horizontal | Vertical | ||||||
|---|---|---|---|---|---|---|---|---|
| Speed | Acceleration (G) | |||||||
| (mm/s) | 0.1 | 0.3 | 0.5 | 0.7 | 1 | 0.1 | 0.3 | 0.5 |
| 0 | 18 | 18 | 14 | 14 | 12 | 6 | 6 | 6 |
| 50 | 18 | 18 | 14 | 14 | 12 | 6 | 6 | 6 |
| 100 | 18 | 18 | 14 | 14 | 12 | 6 | 6 | 6 |
| 150 | 18 | 18 | 14 | 14 | 12 | 6 | 6 | 6 |
| 200 | 18 | 18 | 14 | 14 | 12 | 6 | 6 | 6 |
| 250 | 18 | 18 | 14 | 14 | 12 | 6 | 6 | 5.5 |
| 300 | 18 | 18 | 14 | 14 | 10 | 6 | 5.5 | 5 |
| 350 | 18 | 18 | 12 | 11 | 8 | 6 | 4.5 | 4 |
| 400 | 18 | 14 | 10 | 7 | 6 | 4.5 | 3.5 | 3 |
| 450 | 16 | 10 | 6 | 4 | 2 | 3.5 | 2 | 2 |
| Orientation | Horizontal | Vertical | ||||||
|---|---|---|---|---|---|---|---|---|
| Speed | Acceleration (G) | |||||||
| (mm/s) | 0.1 | 0.3 | 0.5 | 0.7 | 1 | 0.1 | 0.3 | 0.5 |
| 0 | 20 | 20 | 18 | 18 | 14 | 12 | 12 | 12 |
| 25 | 20 | 20 | 18 | 18 | 14 | 12 | 12 | 12 |
| 50 | 20 | 20 | 18 | 18 | 14 | 12 | 12 | 12 |
| 75 | 20 | 20 | 18 | 18 | 14 | 12 | 12 | 12 |
| 100 | 20 | 18 | 18 | 16 | 12 | 12 | 12 | 12 |
| 125 | 20 | 18 | 18 | 16 | 12 | 12 | 12 | 12 |
| 150 | 20 | 18 | 18 | 12 | 10 | 12 | 11 | 10 |
| 175 | 20 | 18 | 14 | 10 | 6 | 11 | 9 | 8 |
| 200 | 20 | 18 | 8 | 9 | 7 | 6 | ||
| 225 | 20 | 6 | 6 | 5 | ||||
High output setting disabled The maximum speed varies depending on the transport mass. The base unit for load capacity is kilogram (kg). Empty column refers to inoperable motion.
| Orientation | Horizontal | Vertical | ||||
|---|---|---|---|---|---|---|
| Speed | Acceleration (G) | |||||
| (mm/s) | 0.2 | 0.3 | 0.5 | 0.7 | 0.1 | 0.2 |
| 0 | 5 | 4 | 3 | 3 | 0.5 | 0.5 |
| 160 | 5 | 4 | 3 | 3 | 0.5 | 0.5 |
| 320 | 5 | 4 | 3 | 3 | 0.5 | 0.5 |
| 480 | 4.5 | 4 | 3 | 3 | 0.5 | 0.5 |
| 640 | 4 | 3.5 | 2 | 2 | 0.5 | 0.5 |
| 800 | 3 | 2.5 | 1 | 1 | 0.5 | 0.5 |
| 960 | 2 | 2 | 1 | 0.5 | 0.5 | |
| Orientation | Horizontal | Vertical | |||||
|---|---|---|---|---|---|---|---|
| Speed | Acceleration (G) | ||||||
| (mm/s) | 0.2 | 0.3 | 0.5 | 0.7 | 0.1 | 0.2 | 0.3 |
| 0 | 8 | 6 | 5.5 | 5 | 2 | 2 | 2 |
| 100 | 8 | 6 | 5.5 | 5 | 2 | 2 | 2 |
| 200 | 8 | 6 | 5.5 | 5 | 2 | 2 | 2 |
| 300 | 8 | 6 | 5.5 | 5 | 2 | 2 | 2 |
| 400 | 8 | 6 | 4 | 3.5 | 2 | 2 | 1.5 |
| 500 | 7 | 5 | 2 | 1.5 | 1.5 | 1.5 | 1 |
| 600 | 5 | 4 | 2 | 1.5 | 1 | 1 | 0.5 |
| Orientation | Horizontal | Vertical | |||||
|---|---|---|---|---|---|---|---|
| Speed | Acceleration (G) | ||||||
| (mm/s) | 0.2 | 0.3 | 0.5 | 0.7 | 0.1 | 0.2 | 0.3 |
| 0 | 13 | 13 | 13 | 12 | 5 | 5 | 5 |
| 50 | 13 | 13 | 13 | 12 | 5 | 5 | 5 |
| 100 | 13 | 13 | 13 | 12 | 5 | 5 | 5 |
| 150 | 13 | 13 | 13 | 12 | 5 | 5 | 5 |
| 200 | 13 | 13 | 13 | 12 | 5 | 4.5 | 4 |
| 250 | 13 | 10 | 8 | 7 | 4 | 4 | 3 |
| 300 | 13 | 9 | 5 | 4 | 3 | 2.5 | 2 |
| Orientation | Horizontal | Vertical | |||||
|---|---|---|---|---|---|---|---|
| Speed | Acceleration (G) | ||||||
| (mm/s) | 0.2 | 0.3 | 0.5 | 0.7 | 0.1 | 0.2 | 0.3 |
| 0 | 16 | 16 | 16 | 16 | 10 | 10 | 10 |
| 25 | 16 | 16 | 16 | 16 | 10 | 10 | 10 |
| 50 | 16 | 16 | 16 | 16 | 10 | 10 | 10 |
| 75 | 16 | 16 | 16 | 14 | 10 | 10 | 10 |
| 100 | 16 | 16 | 14 | 12 | 10 | 9 | 8 |
| 125 | 16 | 13 | 11 | 10 | 7 | 6 | 6 |
| 150 | 16 | 10 | 9 | 8 | 5 | 4.5 | 3 |
Adaptive controller
The actuators introduced in this page are controllable using the controllers shown below. Please select their type based on intended usage.
| Name | Appearance | Max. connectable axis No. | Power source voltage | Control method | Maximum positioning points | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Positioner | Pulse train | Program | Network *Select | ||||||||||||||||
| DV | CC | CIE | PR | CN | ML | ML3 | EC | EP | PRT | SSN | ECM | ||||||||
| MSEL-PC/PG |  | 4 | Single phase AC 100 - 230V | － | － | ● | ● | ● | － | ● | － | － | － | ● | ● | ● | － | － | 30000 |
| PCON-CB/CGB |  | 1 | DC24V | ● *Selectable | ● *Selectable | － | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | － | － | 512 (768 for network specification) |
| PCON-CYB/PLB/POB |  | 1 | ● *Selectable | ● *Selectable | － | － | － | － | － | － | － | － | － | － | － | － | － | 64 | |
| RCON |  | 16 (ML3,SSN,ECM is 8) | － | － | － | ● | ● | ● | ● | － | － | ● | ● | ● | ● | ● | ● | 128 (Position data unavailable for ML3, SSN and ECM) | |
| RSEL |  | 8 | － | － | ● | ● | ● | ● | ● | － | － | － | ● | ● | ● | － | － | 36000 | |
(Note) Refer to page 8-17 for network abbreviations such as DV and CC.
Oversea specification
Important notes on selection
 | (1) The value shown for load capacity in "Main specification" refers to the maximum value. Please refer to "Load capacity by speed and acceleration table" for further information. (2) Load capacity and maximum speed of a RCP4 depends on the connected controller. Refer "Main Specification" for further details. (3) Refer to page 1-269 for the pressing operation. (4) Safety measures may be required depending on the attachment orientation. Refer to page 1-261 for further details. (5) The standard value for offset load lengths are 150mm and below, towards the direction of Ma, Mb and Mc. For the overhang load length, please see the figure on page 1-16. (6) A conversion unit or conversion cable is required for RCON/RSEL connection. Refer to page 8-121 for further details. |
Dimension drawing
ST: Stroke
M.E.: Mechanical end
S.E.: Stroke end
(Note) Connect motor encoder cable to the cable joint connector. Refer to page 1-109 for the cable details.
(Note) Please be careful while returning to the home position, for there is a chance of collision while having the slider returning to the M.E. position.
Dimension by stroke length
| Stroke | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 | 750 | 800 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | Without brake | 279 | 329 | 379 | 429 | 479 | 529 | 579 | 629 | 679 | 729 | 779 | 829 | 879 | 929 | 979 | 1029 |
| With brake | 319 | 369 | 419 | 469 | 519 | 569 | 619 | 669 | 719 | 769 | 819 | 869 | 919 | 969 | 1019 | 1069 | |
| A | 181 | 231 | 281 | 331 | 381 | 431 | 481 | 531 | 581 | 631 | 681 | 731 | 781 | 831 | 881 | 931 | |
| B | 166 | 216 | 266 | 316 | 366 | 416 | 466 | 516 | 566 | 616 | 666 | 716 | 766 | 816 | 866 | 916 | |
| D | 0 | 0 | 0 | 1 | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 | |
| E | 4 | 4 | 4 | 6 | 6 | 8 | 8 | 10 | 10 | 12 | 12 | 14 | 14 | 16 | 16 | 18 | |
| G | 0 | 0 | 1 | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 | 7 | |
| H | 4 | 4 | 6 | 6 | 8 | 8 | 10 | 10 | 12 | 12 | 14 | 14 | 16 | 16 | 18 | 18 | |
| J | 0 | 85 | 85 | 185 | 185 | 285 | 285 | 385 | 385 | 485 | 485 | 585 | 585 | 685 | 685 | 785 | |
| K | 73 | 100 | 100 | 200 | 200 | 300 | 300 | 400 | 400 | 500 | 500 | 600 | 600 | 700 | 700 | 800 | |
Mass by stroke length
| Stroke | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 | 750 | 800 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mass (kg) | Without brake | 1.5 | 1.6 | 1.8 | 1.9 | 2.1 | 2.2 | 2.4 | 2.5 | 2.6 | 2.8 | 2.9 | 3.1 | 3.2 | 3.4 | 3.5 | 3.7 |
| With brake | 1.7 | 1.9 | 2 | 2.1 | 2.3 | 2.4 | 2.6 | 2.7 | 2.9 | 3 | 3.2 | 3.3 | 3.5 | 3.6 | 3.7 | 3.9 | |
