RCP6-HSA6XR

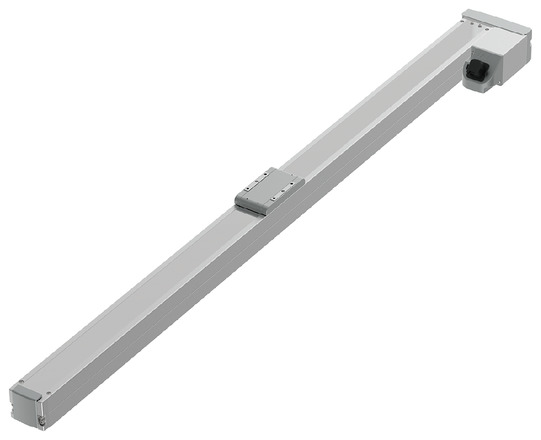

(Note) Photo above shows the motor reversing specification (Motor reversing on the left)(ML).

Main specification

HeadingContents
LeadBall screw lead (mm)201263
HorizontalLoad capacityMaximum load capacity (kg) (High-power enabled)15284242
Maximum load capacity (kg) (High-power disabled)8142025
Speed/ Acceleration/DecelerationMaximum speed (mm/s)1120800400200
Minimum speed (mm/s)251584
Rated acceleration/deceleration (G)0.30.10.10.3
Maximum acceleration/deceleration (G)1111
VerticalLoad capacityMaximum load capacity (kg) (High-power enabled)12.5616
Maximum load capacity (kg) (High-power disabled)0.752510
Speed/ Acceleration/DecelerationMaximum speed (mm/s)960700400200
Minimum speed (mm/s)251584
Rated acceleration/deceleration (G)0.30.30.30.3
Maximum acceleration/deceleration (G)0.50.50.50.5
Pressing motionMax. pressing thrust (N)67112224449
Max. pressing speed (mm/s)30302020
BrakeBrake specificationNon-excitation electromagnetic brake
Brake retention force (kgf)12.5616
StrokeMinimum stroke (mm)500500500500
Maximum stroke (mm)1500150014001000
Stroke pitch (mm)50505050

HeadingContents
Drive systemBall screw φ10mm, rolled C10
Accuracy of Repeating Positioning.±0.01mm
Lost motion0.1mm or less
BaseMaterial: White alumite treated aluminum
Linear guideInfinite linear circulation type
Allowable static moment valueMa : 65 N・m
Mb : 75 N・m
Mc : 120 N・m
Allowable dynamic moment value
(Note2)
Ma : 33.7 N・m
Mb : 40.2 N・m
Mc : 55.3 N・m
Ambient operating temperature and humidity0 - 40℃, RH 85% and below (no condensation)
Protection gradeIP20
Vibration resistant/Shock resistant4.9m/s2
Compatible to overseas standardsCE mark, RoHS compliant
Motor typePulse motor
Encoder typeBattery-less absolute
Encoder pulse No.8192 pulse/rev
DeliveryWritten in [Reference for delivery] section of the homepage

(Note 2) Based on standard rated life of 5,000km. Life time travelling distance differs based on operating condition and attached condition. Refer page 1-276 for the operating life.

Slider type moment direction

Stroke and maximum speed

(Measured in mm/s)

Lead
(mm)
Connecting
controller
500 - 700
(per 50mm)
750
(mm)
800
(mm)
850
(mm)
900
(mm)
950
(mm)
1000
(mm)
1050
(mm)
1100
(mm)
1150
(mm)
1200
(mm)
1250
(mm)
1300
(mm)
1350
(mm)
1400
(mm)
1450
(mm)
1500
(mm)
20High Output Enabled1120 <960>970<960>940860790730640610580540470450430400
High Output Disabled800<640>790<640>730<640>640610580540470450430400
12High Output Enabled800<700>770<700>680620560510460425380360330315285270250235220
High Output Disabled560510460425380360330315285270250235220
6High Output Enabled400380340310280255230210185175165140135125115
High Output Disabled340<280>310<280>280255230210185175165140135125115
3High Output Enabled200190165145135125115
High Output Disabled140135125115

(Note) < > is applicable when operated vertically. Empty column refers to inoperable motion.

Correlation diagram of pressing force and current limiting value

Load capacity by speed and acceleration table ※High output setting is enabled at the time of shipment. Refer to page 1-23 for further details.

High output setting enabled (Power mode) The maximum speed varies depending on the payload. The base unit for load capacity is kilogram (kg). Empty column refers to inoperable motion.

OrientationHorizontalVertical
SpeedAcceleration (G)
(mm/s)0.10.30.50.710.10.30.5
015151087111
16015151087111
32012121086111
4801212986111
64012126.554111
8009.59.5532111
96073210.50.5
112051

OrientationHorizontalVertical
SpeedAcceleration (G)
(mm/s)0.10.30.50.710.10.30.5
028261816142.52.52.5
8028261816142.52.52.5
20028261816142.52.52.5
32026261814122.52.52.5
4402626131182.52.52.5
56017.517.5953222
700932110.5
8003

OrientationHorizontalVertical
SpeedAcceleration (G)
(mm/s)0.10.30.50.710.10.30.5
04238262420666
404238262420666
1004038262420666
1604038262420666
2203736262418666
2803232251713665.5
34022221165443
40012622

OrientationHorizontalVertical
SpeedAcceleration (G)
(mm/s)0.10.30.50.710.10.30.5
04242353535161616
504242353535161616
804040353530161616
1104040353530161616
1404040353015151512
170404020102665
2001011

High output setting disabled (Energy saving mode) The maximum speed varies depending on the payload. The base unit for load capacity is kilogram (kg). Empty column refers to inoperable motion.

OrientationHorizontalVertical
SpeedAcceleration (G)
(mm/s)0.30.70.3
0850.75
160850.75
320850.75
480840.75
640630.75
80030.5

OrientationHorizontalVertical
SpeedAcceleration (G)
(mm/s)0.30.70.3
014102
8014102
20014102
32014102
4401151.5
56040.50.5

OrientationHorizontalVertical
SpeedAcceleration (G)
(mm/s)0.30.70.3
020145
4020145
10020145
16020145
22016144
2801131.5
3401

OrientationHorizontalVertical
SpeedAcceleration (G)
(mm/s)0.30.70.3
0252210
20252210
50252210
80252210
11020148
1401543

Adaptive controller

The actuators introduced in this page are controllable using the controllers shown below. Please select their type based on intended usage.

NameAppearanceMax. connectable
axis No.
Power source voltageControl methodMaximum positioning points
PositionerPulse trainProgramNetwork *Select
DVCCCIEPRCNMLML3ECEPPRTSSNECM
MSEL-PC/PG4Single phase AC
100 - 230V
30000
PCON-CB/CGB1DC24V
*Selectable

*Selectable
512
(768 for network specification)
PCON-CYB/PLB/POB1
*Selectable

*Selectable
64
RCON16
(ML3,SSN,ECM is 8)
128
(Position data unavailable for ML3, SSN and ECM)
RSEL836000

(Note) For network abbreviations such as DV and CC, please refer to page 8-15.

Oversea specification

Important notes on selection

(1) Maximum speed drops when the stroke length increase, preventing it from reaching the critical revolution value of the ball screws. Use the "Stroke and Max.speed" to check the maximum speed at the stroke you desire.
(2) The load capacity shown in the "Main specification" refers to their maximum value. Please refer to "Load capacity by speed and acceleration table" for further information.
(3) Refer "Correlation of pressing force and current limit value" if you may need to operate pressing motion. Pressing force shown are their standard value. Refer page 1- 315 for important points to be taken note of.
(4) The duty ratio must be limited according to the ambient temperature of use. Refer to page 1-326 for further details.
(5) Requires extra care required depending on the mounting posture. Refer to page 1-307 for further details.
(6) The approximate overhang load length is 300mm or less in Ma, Mb and Mc directions. Please refer to page 3-52 for the overhang load length.

Return to the page top

Dimension drawing

ST: Stroke

M.E.: Mechanical end

S.E.: Stroke end

(Note) Please be careful while returning to the home position, for there is a chance of collision while having the slider returning to the M.E. position.

(Note) The figure below shows a motor with left-reversing specification (ML).

(Note) Please refer to page 3-716 for precautions when changing the cable exit direction.

Dimension by stroke length

Stroke50055060065070075080085090095010001050110011501200125013001350140014501500
L80785790795710071057110711571207125713071357140714571507155716071657170717571807
A777.5827.5877.5927.5977.51027.51077.51127.51177.51227.51277.51327.51377.51427.51477.51527.51577.51627.51677.51727.51777.5
B7608108609109601010106011101160121012601310136014101460151015601610166017101760
C50050050050050050050050050050050
D67788991010111112121313141415151616
E161618182020222224242626282830303232343436
F50005050005050005050005050005050
G233334444555566667777
H161616182020202224242426282828303232323436
J550600650700750800850900950100010501100115012001250130013501400145015001550
K223333444455556666777
R50500050500050500050500050500050

Mass by stroke length

Stroke50055060065070075080085090095010001050110011501200125013001350140014501500
Mass
(kg)
Without brake5.05.35.55.75.96.16.36.56.77.07.27.47.67.88.08.28.48.68.99.19.3
With brake5.35.65.86.06.26.46.66.87.07.37.57.77.98.18.38.58.78.99.29.49.6
