LSA/LSAS series

Corresponding to high speed, high load, high precision and long stroke.

Product Information of LSA/LSAS Series.

Features 1 Able to transport at a maximum load capacity of 120kg and maximum range at 4.15m.

Features 2 Able to reduce cycle time on high acceleration at maximum 3G and maximum speed at 2.5m/s.

Features 3 Multi Slider and synchronize function.

Features 4 Full line up from small size to large size.

Features 5 Shaft type with compact size and lower price effect.

Features 6 Large-size high thrust type corresponding to heavy load.

Features 7 Addition of false absolute type in the Medium type making time for back to origin is reduced significantly.

Main function

Able to transport at a maximum load capacity of 120kg and minimum at 4.15m.

Large type (W21 type) can make a high thrust rated at 400N in a compact size as it uses high density winding coil with core and flat magnet.
With this, the load capacity can be at maximum of 120kg.

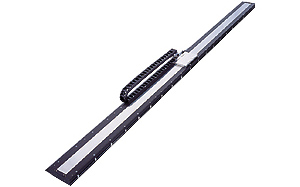

Also it can transport a large Liquid crystal board using a prepared long stroke with maximum length at 4.15m.

Able to reduce cycle time on high acceleration at maximum 3G and maximum speed at 2.5m/s.

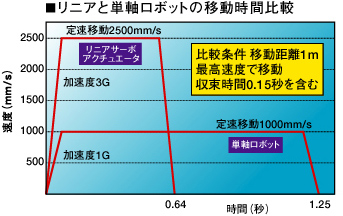

In the case of using ball screw type single axis robot can reduce cycle time due to the high speed performance of max. acceleration at 3G and max speed at 2.5m/s
Even a long stroke, it can transfer high speed without dropping max speed from a danger rotation speed like in ball screw.

Multi Slider and Synchronize Function.

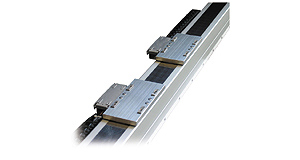

Multi slider type that can operate multi slider using only one actuator.
Great result in space saving and tact time reduction.

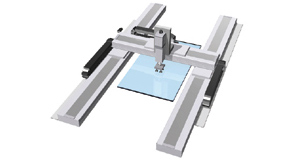

Furthermore, it can support high speed transfer in a wide range and transport large glass board using a popular XSEL controller with synchronize function.

Multi Slider

Synchronized movement

Full line up from small size to large size.

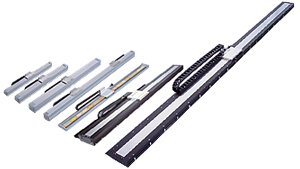

A selection of various models to meet your application such as a compact light weight type, width reduced compact type, height reduced flat type, excellent moment medium type, large type for maximum transport of 120kg etc.

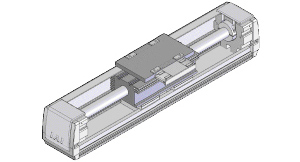

Shaft type with compact size and lower price effect.

Its compact and high thrust due to the built-in magnet inside the shaft and placing coil surround it to give a magnet flux all direction.
However, amount of magnets can be reduced to get a further lower price.

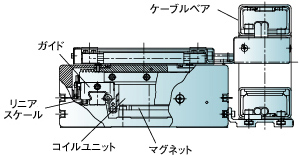

Large size and high thrust type for a high load capacity

Large size and high thrust type uses roller type guide structure that can get load up to 120kg
Less elastic deformation against load compares to a guide on ball type will effect on silence and smooth running and high moment rigidity.

※
※This page provides information from the specification of all series to the maximum value. The maximum value may not be achieved and is subject to the combination of specification required.
※Please see the catalogue (PDF File) for more information.
