Introduction of an Elecylinder® specialized in its "ease to handle" from start-up down to maintenance | New Product

Introduction of a new ROBO Cylinder servo motor type, the RCS4.

Product information of Elecylinder®

New series

New Models Added

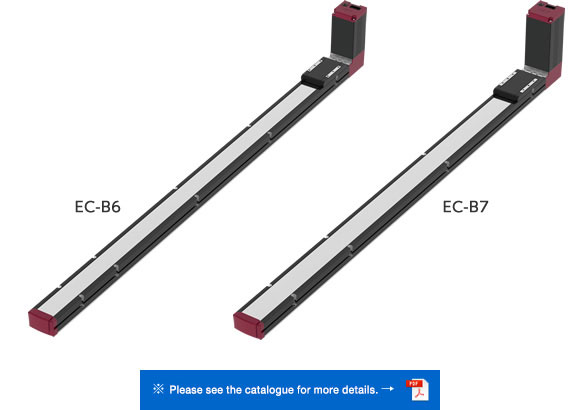

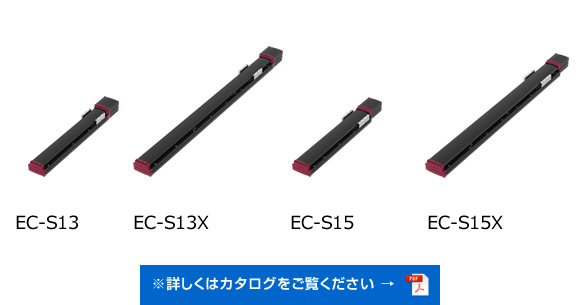

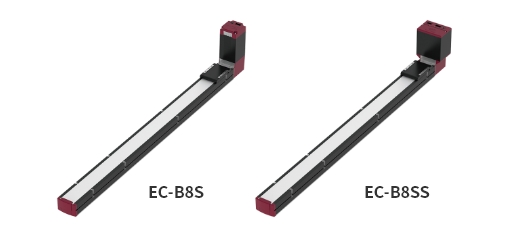

New models have been added to the ELECYLINDER® belt drive type.

Please see the catalogue for more details

New Models Added

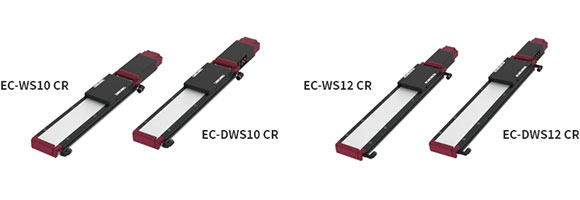

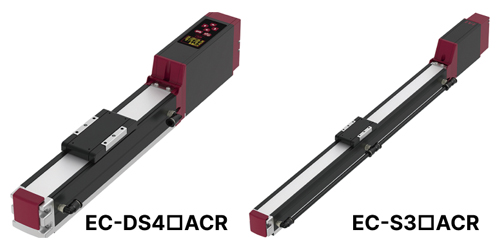

New models added to the ELECYLINDER® cleanroom series.

Please see the catalogue for more details

New Models Added

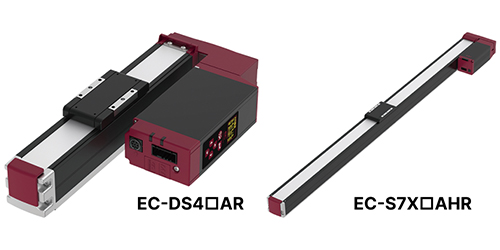

New motor-reversing type added to the ELECYLINDER® long-stroke slider series.

Please see the catalogue for more details

New Models Added

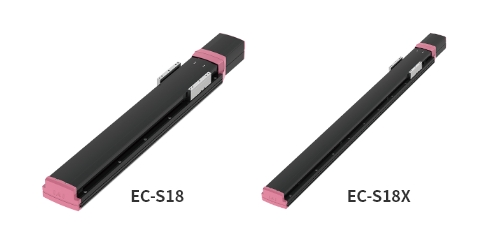

New Ultra-Large Slider type (S18/S18X) has been added to the Elecylinder® series.

Please see the catalogue for more details

New Models Added

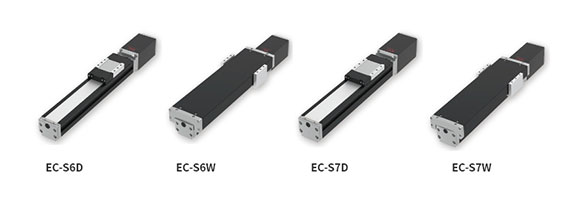

New dust-proof and dust/splash-proof type has been added to Elecylinder® slider type series.

Please see the catalogue for more details

New Models Added

Ultra compact type has been added to the Elecylinder® series.

Please see the catalogue for more details

New Models Added

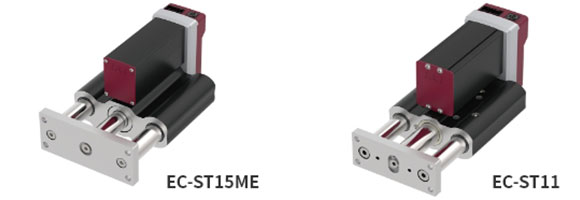

New lineup has been added to Elecylinder® stopper cylinder series.

Please see the catalogue for more details

New Models Added

Double-guide type has been added to Elecylinder® rod type series.

Please see the catalogue for more details

New Models Added

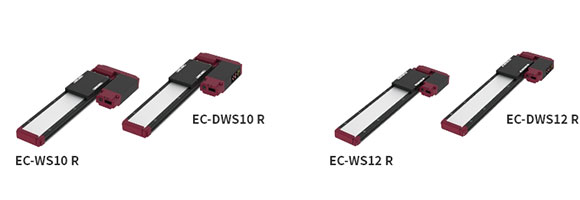

Motor reversed type has been added to Elecylinder® wide slider series.

Please see the catalogue for more details

New Models Added

Cleanroom type has been added to Elecylinder® wide slider series.
(Total of 4 models, including digital speed controller has been added)

Please see the catalogue for more details

New Models Added

Long stroke compatible type has been added to Elecylinder® slider type series.
(Total 12 models, including digital speed controller)

Please see the catalogue for more details

New Series Added

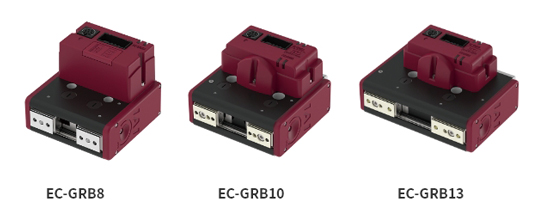

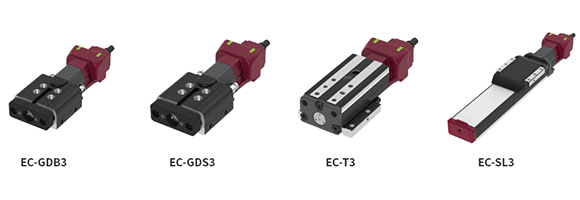

Gripper type has been added to the Elecylinder® series.

Please see the catalogue for more details

Series added

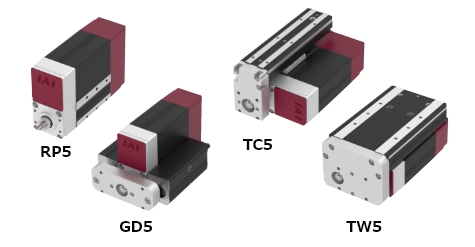

New variations (RP5/GD5/TC5/TW5) have been added to mini rod/table type Elecylinder® series.

Please see the catalogue for more details

Series added

New long stroke radial cylinder has been added to Elecylinder® series.

Please see the catalogue for more details

Series added

New cleanroom specification has been added to Elecylinder® series.

Please see the catalogue for more details

Series added

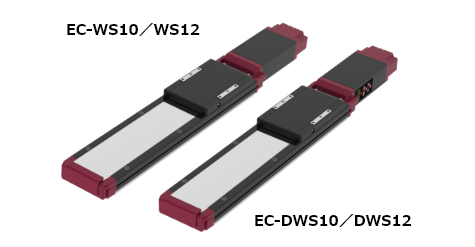

New high-rigidity wide slider type has been added to Elecylinder® series.

Please see the catalogue for more details

Series added

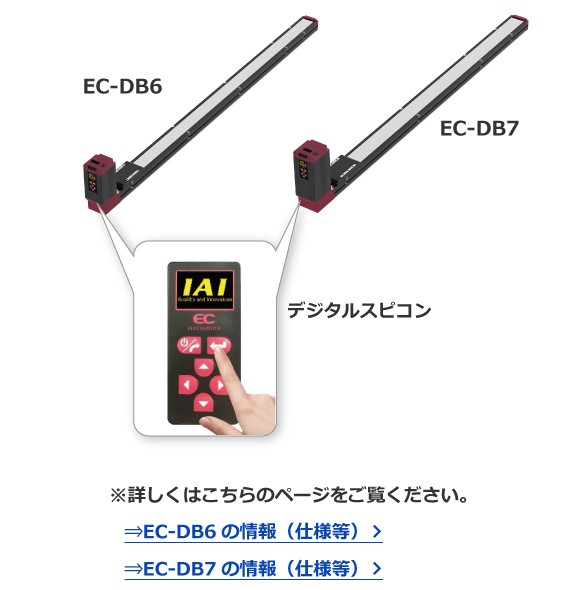

Digital speed controller type released
for belt driven Elecylinder®.

Series added

Large slider type is now available in Elecylinder^®.
●Maximum stroke 2500mm
●Maximum speed 2000mm/s
●Battery-less absolute encoder standard-installed
●High-power 200V AC servo motor adopted

New series released

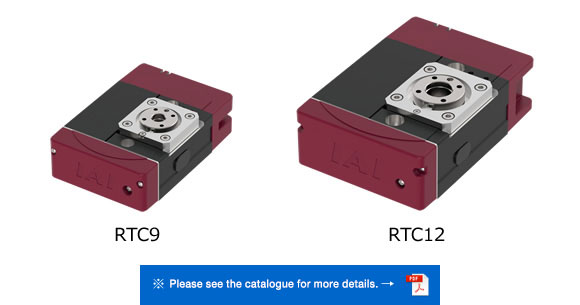

Rotary type is released for Elecylinder^®.

New series released

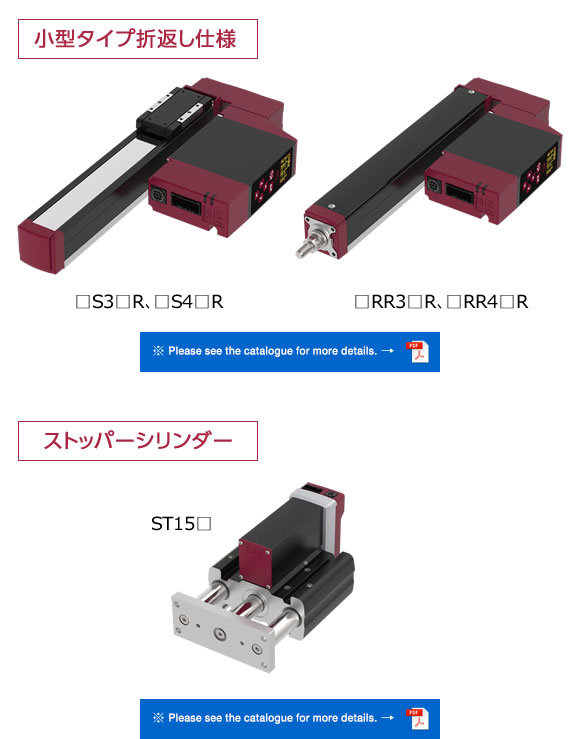

Stopper cylinder and small-sized reversing specification is released for Elecylinder^®.

New series released

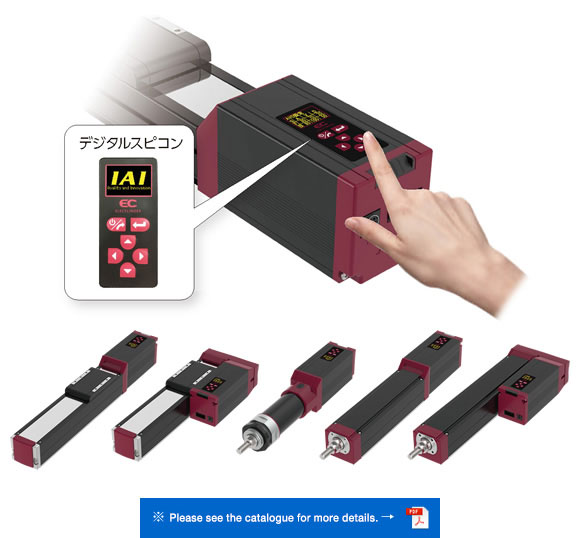

Digital speed controller is released for Elecylinder^®.

New series released

Belt driving type is released for Elecylinder^®.

New series added

IP67 water-proof radial cylinder^® is released for Elecylinder^®.

New series added

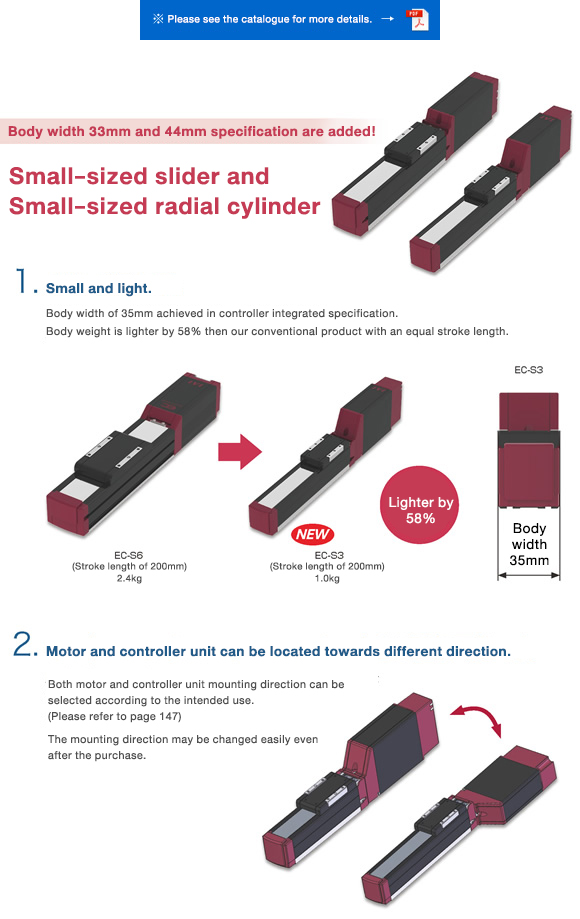

Small-sized type (35mm width) and motor reversing specification are released for Elecylinder^®.

New series added

Robust slider and robust radial cylinder are released for Elecylinder^®.

Addition in series

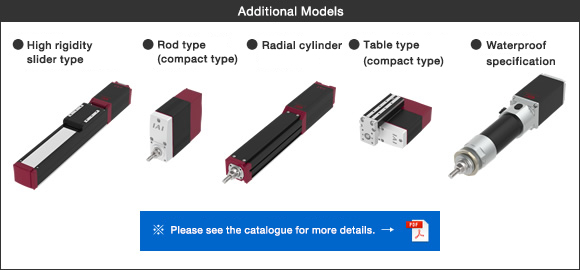

New line-up is released for Elecylinder^®.
New variation released.

Features of Elecylinder®

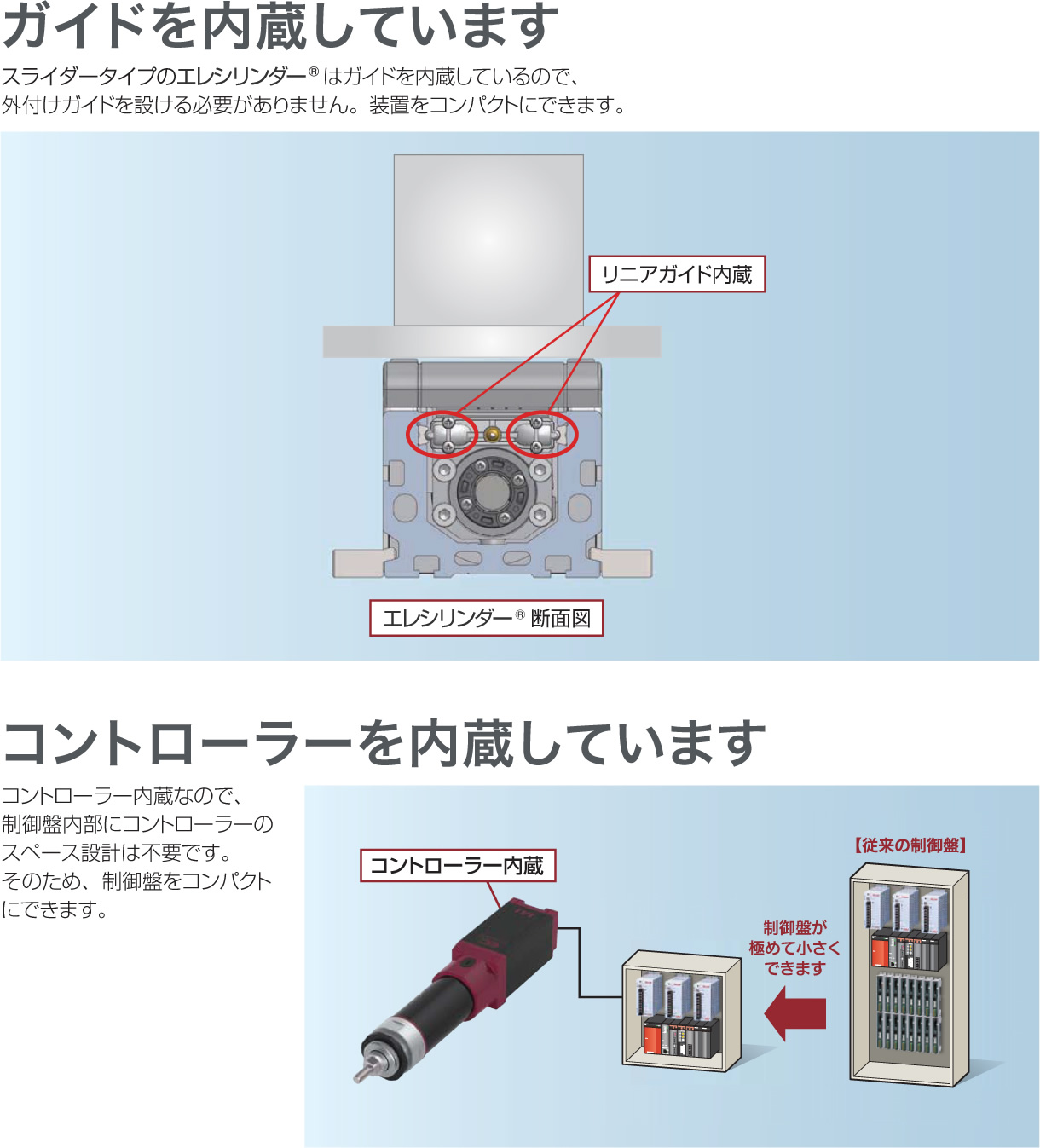

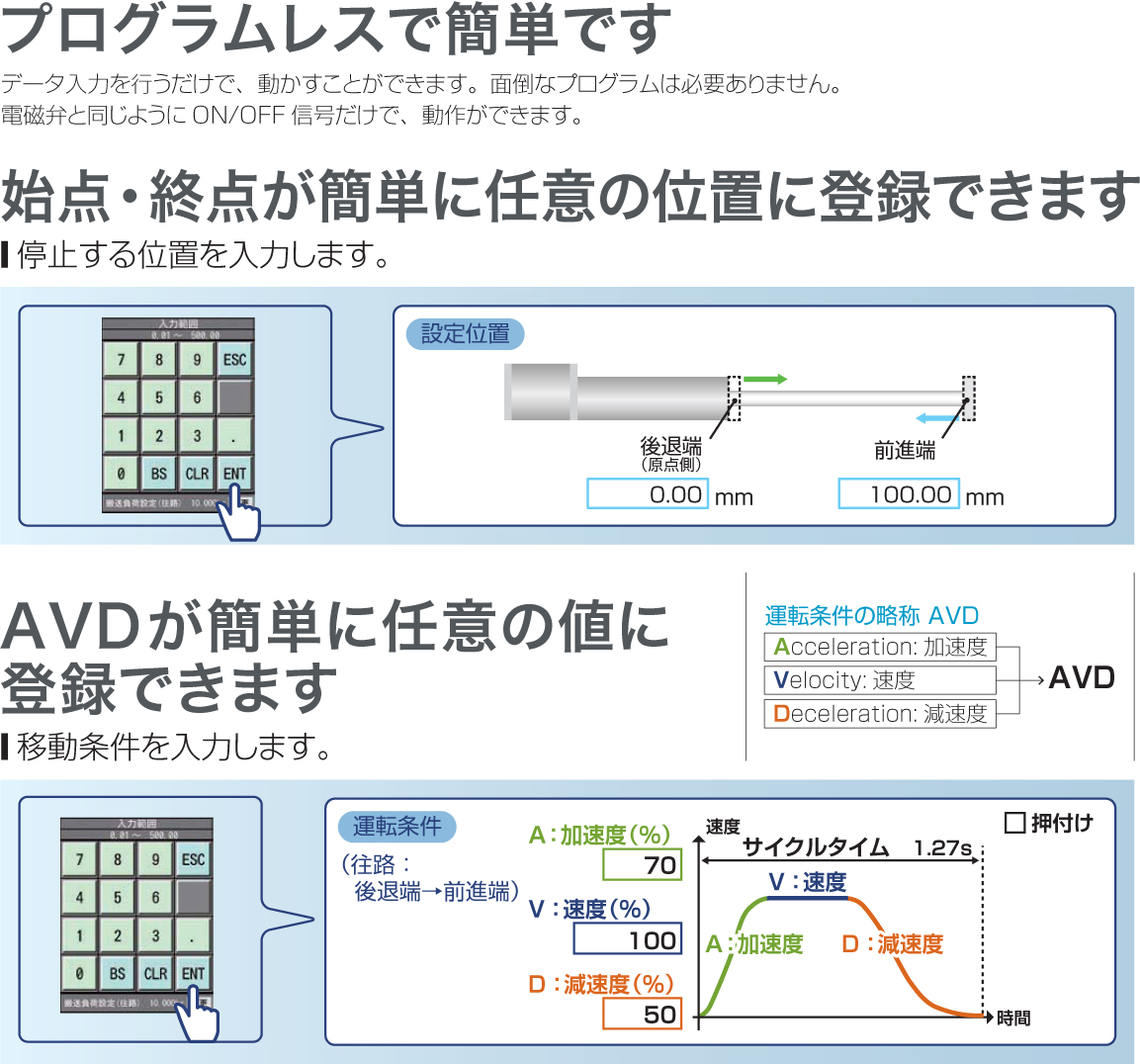

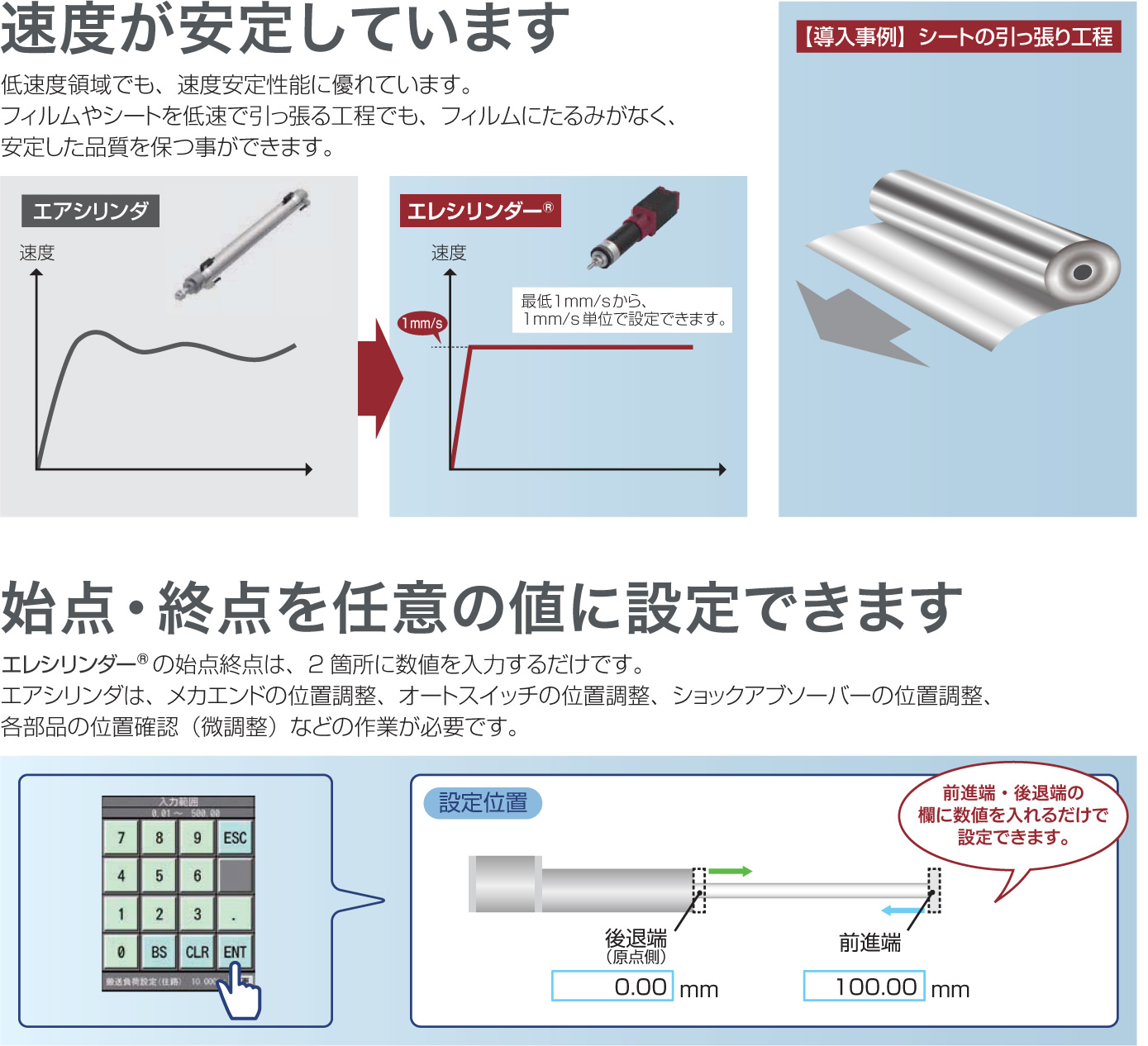

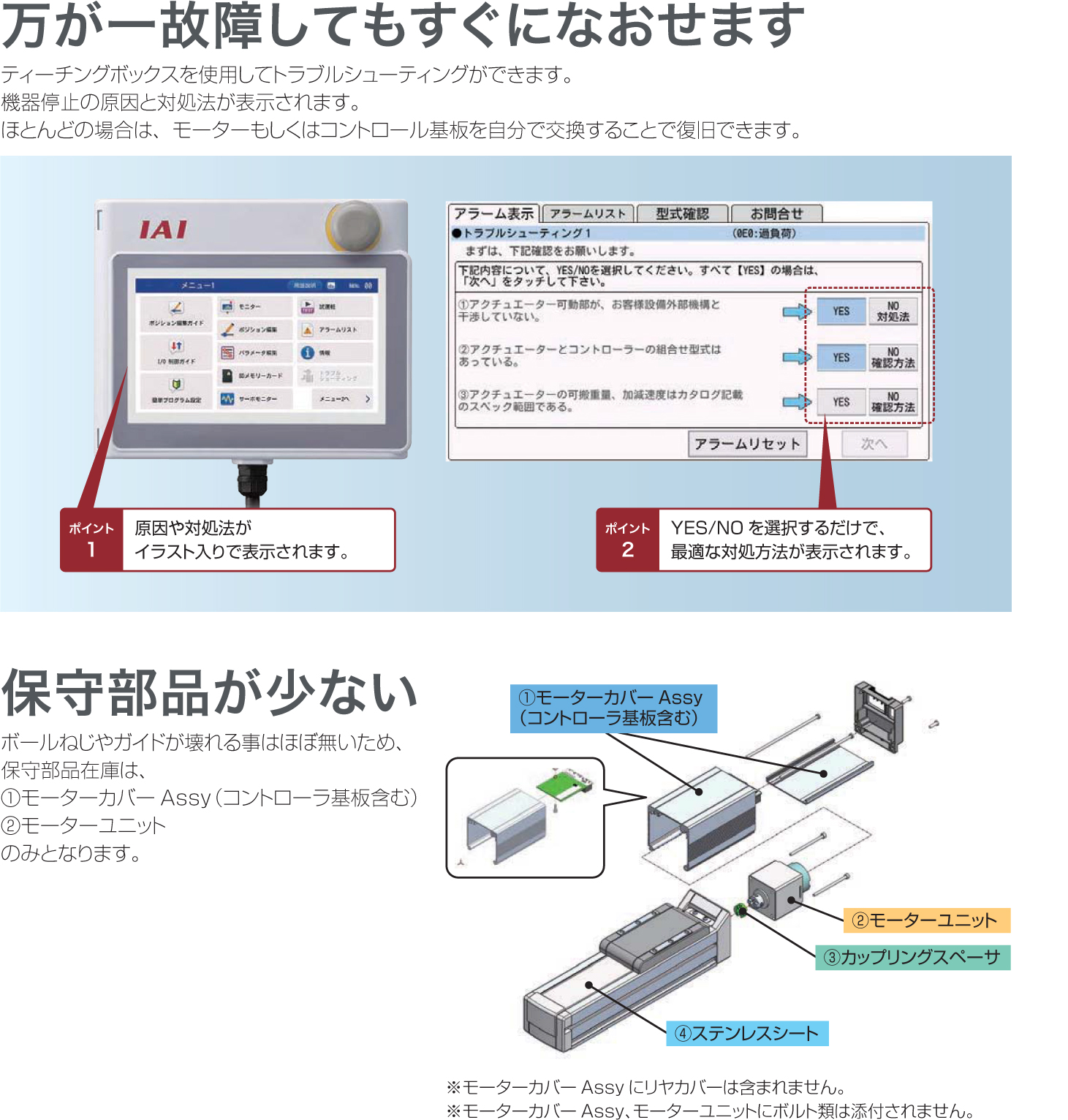

Easy handling

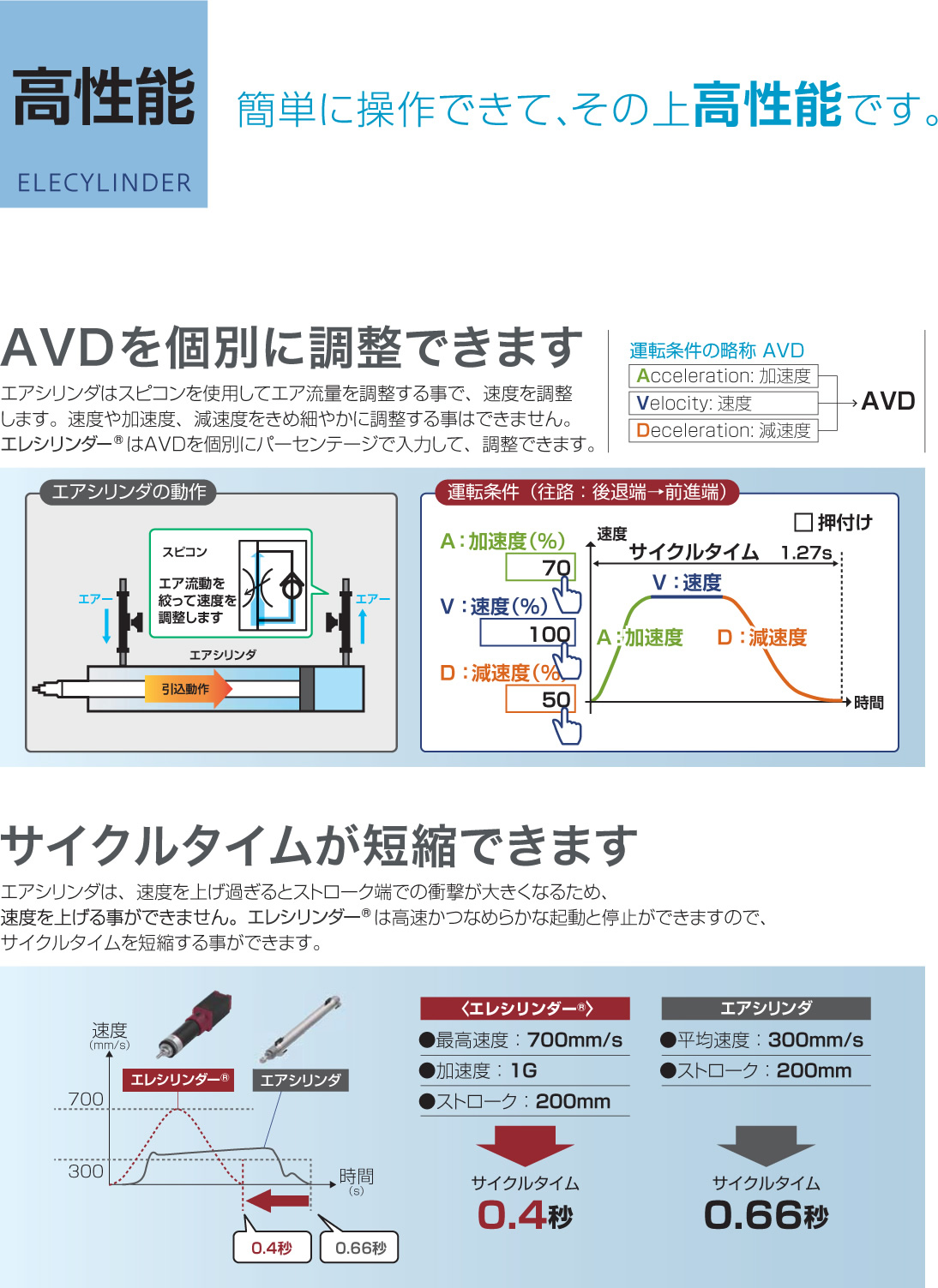

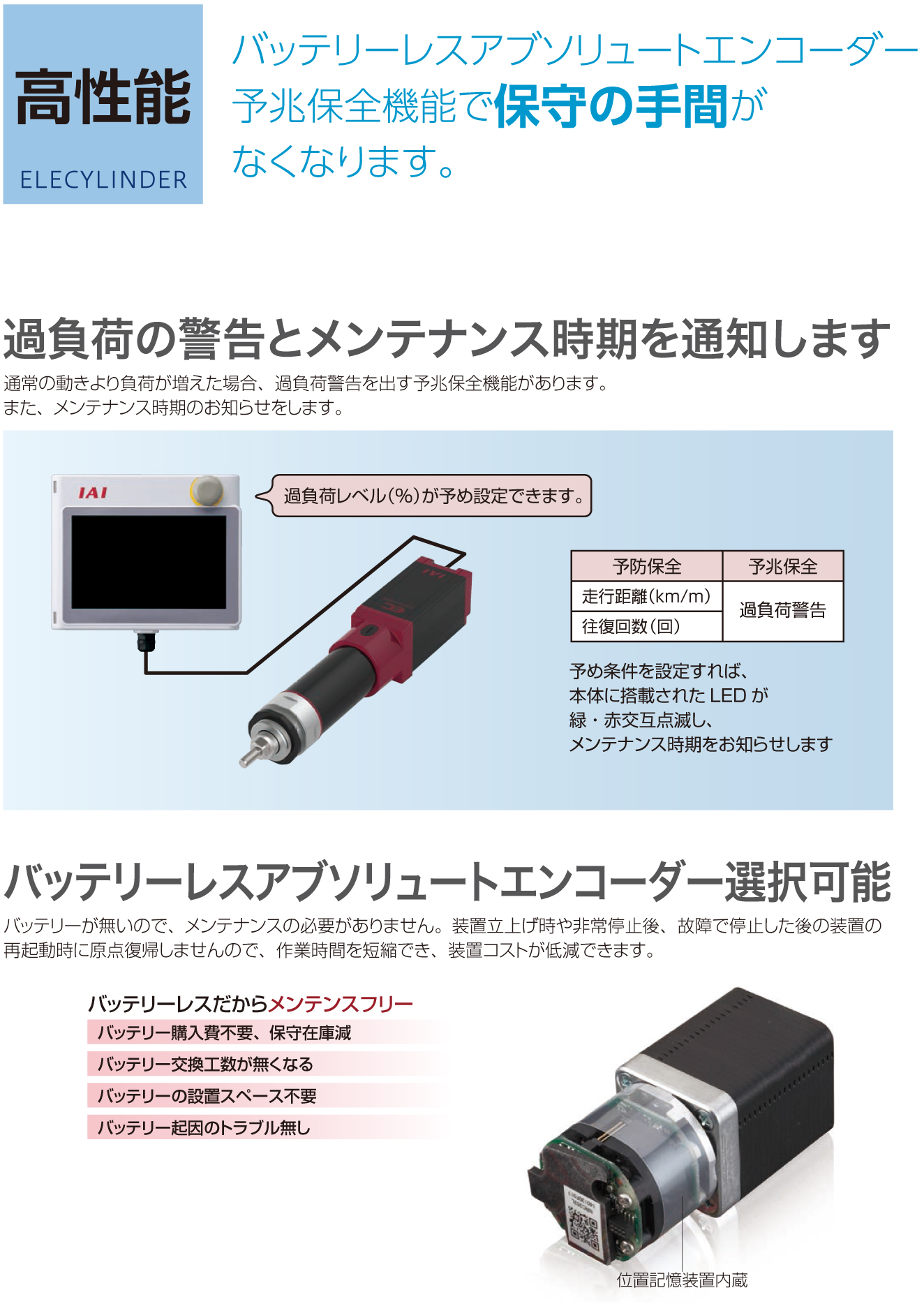

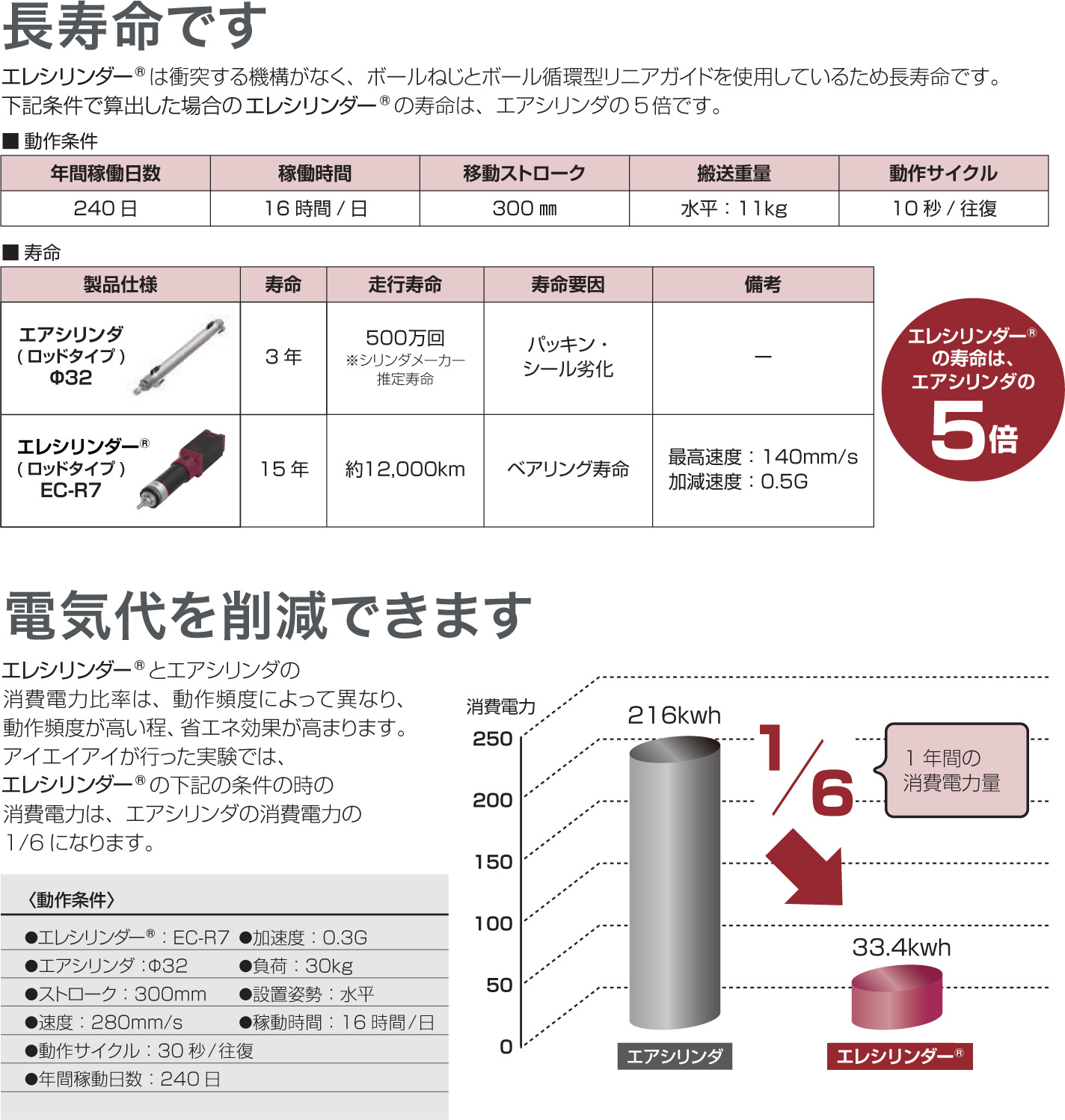

High performing

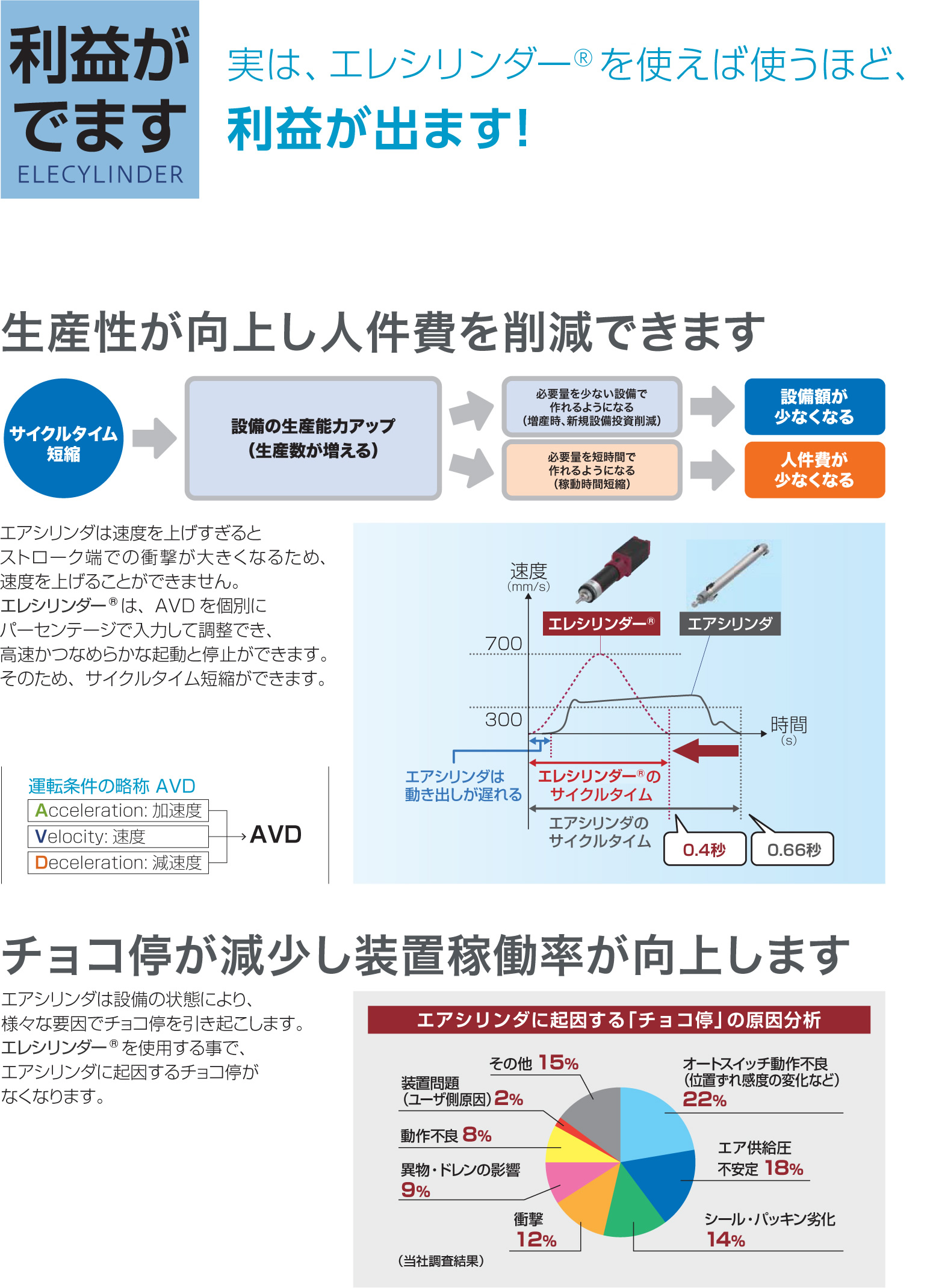

Provides profit

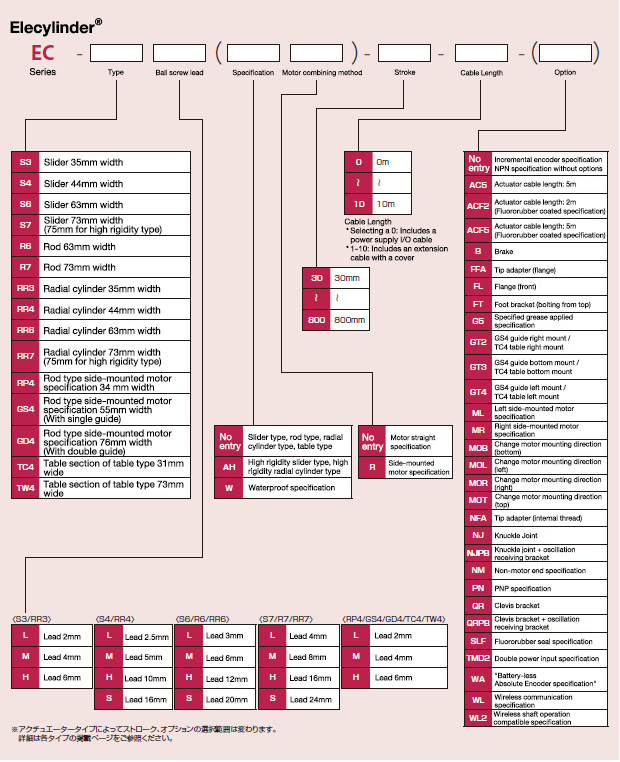

Line-up

Model selections are from here

Slider type

Type	Appearance	Body width (mm)	Lead (mm)	Repeated positioning accuracy (mm)	Stroke (mm)	Maximum speed (mm/s)	Maximum pressing force (N)	Maximum load capacity (kg)		Introduction page (PDF)	CAD drawings
								Horizontal	Vertical
S3			6	±0.05	50~300 (per 50st)	420	45	3.5	1.5	Catalogue	↓ Download guide
			4			280	68	6	2.5
			2			140	136	9	3.5
S4			16	±0.05	50~300 (per 50st)	800	41	7	1.5	Catalogue	↓ Download guide
			10			700	66	12	2.5
			5			350	132	15	5
			2.5			175＜150＞	263	18	6.5
S6			20	±0.05	50~400 (per 50st)	800	56	15	1	Catalogue	↓ Download guide
			12			700	93	26	2.5
			6			450	185	32	6
			3			225	370	40	12.5
S7			24	±0.05	50~500 (per 50st)	860	112	37	3	Catalogue	↓ Download guide
			16			700	168	46	8
			8			420	336	51	16
			4			210＜175＞	673	51	19
S6□R			20	±0.05	50~400 (per 50st)	800	67	15	1	Catalogue	↓ Download guide
			12			700	112	26	2.5
			6			450＜400＞	224	32	6
			3			225	449	40	12.5

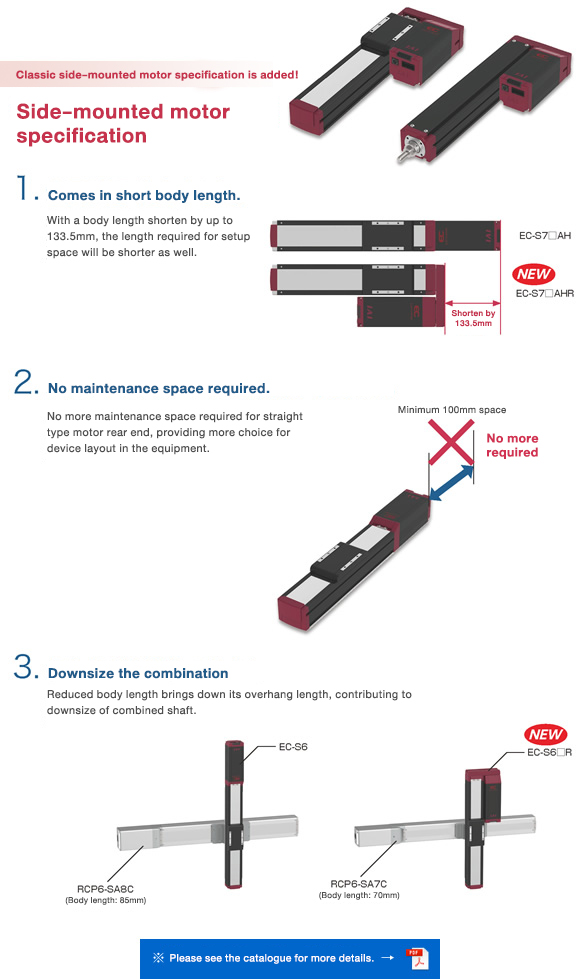

S7□R			24	±0.05	50~500 (per 50st)	860	139	37	3	Catalogue	↓ Download guide
			16			700	209	46	8
			8			420＜350＞	418	51	16
			4			190＜175＞	836	51	19

The value shown in ＜＞ refers to the value for vertical specification.

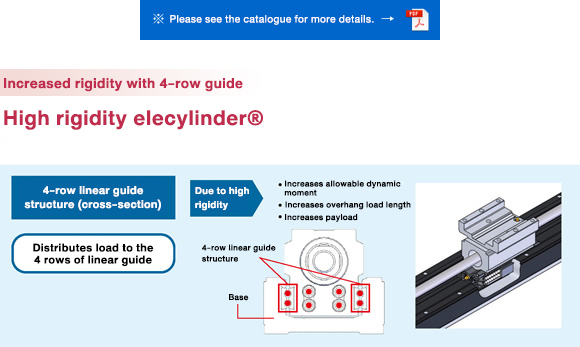

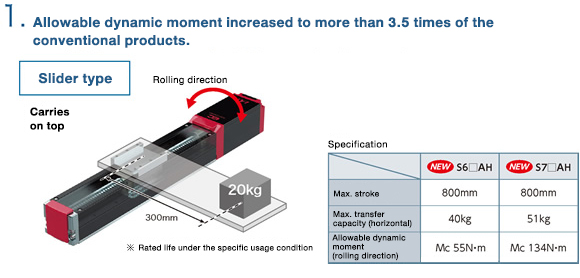

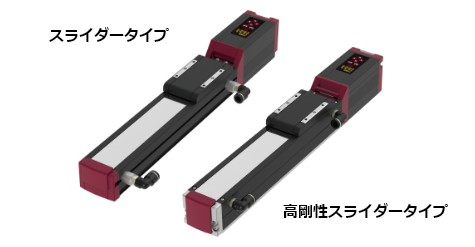

High rigidity slider type

Type	Appearance	Body width (mm)	Lead (mm)	Repeated positioning accuracy (mm)	Stroke (mm)	Maximum speed (mm/s)	Maximum pressing force (N)	Maximum load capacity (kg)		Introduction page (PDF)	CAD drawings
								Horizontal	Vertical
S6□AH			20	±0.05	50~800 (per 50st)	1440＜1280＞	56	15	1	Catalogue	↓ Download guide
			12			900	93	26	2.5
			6			450	185	32	6
			3			225	370	40	16
S7□AH			24	±0.05	50~800 (per 50st)	1230	112	37	3	Catalogue	↓ Download guide
			16			980＜840＞	168	46	8
			8			420	336	51	16
			4			210＜175＞	673	51	25
S6□AHR			20	±0.05	50~800 (per 50st)	1120	67	15	1	Catalogue	↓ Download guide
			12			900＜800＞	112	26	2.5
			6			450＜400＞	224	32	6
			3			225	449	40	16
S7□AHR			24	±0.05	50~800 (per 50st)	1080＜860＞	139	37	3	Catalogue	↓ Download guide
			16			840＜700＞	209	46	8
			8			420＜350＞	418	51	16
			4			190＜175＞	836	51	25

The value shown in ＜＞ refers to the value for vertical specification.

Rod type

Type	Appearance	Body width (mm)	Lead (mm)	Repeated positioning accuracy (mm)	Stroke (mm)	Maximum speed (mm/s)	Maximum pressing force (N)	Maximum load capacity (kg)		Introduction page (PDF)	CAD drawings
								Horizontal	Vertical
RP4			6	±0.05	30､50	300	30	2.5	1	Catalogue	↓ Download guide
			4			200	45	4	1.5
			2			100	90	8	2.5
GS4			6	±0.05	30､50	300	30	2.5	1	Catalogue	↓ Download guide
			4			200	45	4	1.5
			2			100	90	8	2.5
GD4			6	±0.05	30､50	300	30	2.5	1	Catalogue	↓ Download guide
			4			200	45	4	1.5
			2			100	90	8	2.5
R6			20	±0.05	50~300 (per 50st)	800	56	6	1.5	Catalogue	↓ Download guide
			12			700	93	25	4
			6			450	185	40	10
			3			225	370	60	12.5
R7			24	±0.05	50~300 (per 50st)	860＜640＞	182	20	3	Catalogue	↓ Download guide
			16			700＜560＞	273	50	8
			8			350	547	60	18
			4			175	1094	80	19

The value shown in ＜＞ refers to the value for vertical specification.

Radial cylinder

Type	Appearance	Body width (mm)	Lead (mm)	Repeated positioning accuracy (mm)	Stroke (mm)	Maximum speed (mm/s)	Maximum pressing force (N)	Maximum load capacity (kg)		Introduction page (PDF)	CAD drawings
								Horizontal	Vertical
RR3			6	±0.05	50~300 (per 50st)	420	45	9	1.5	Catalogue	↓ Download guide
			4			280	68	14	2.5
			2			140	136	18	3.5
RR4			16	±0.05	50~300 (per 50st)	800	41	7	1.5	Catalogue	↓ Download guide
			10			700	66	16	2.5
			5			350	132	25	5
			2.5			175＜150＞	263	35	6.5
RR6			20	±0.05	65~315 (per 50st)	800	56	6	1.5	Catalogue	↓ Download guide
			12			700	93	25	4
			6			450	185	40	10
			3			225	370	60	12.5
RR7			24	±0.05	65~315 (per 50st)	860＜640＞	182	20	3	Catalogue	↓ Download guide
			16			700＜560＞	273	50	8
			8			350	547	60	18
			4			175	1094	80	19
RR6□R			20	±0.05	65~315 (per 50st)	800	67	6	1.5	Catalogue	↓ Download guide
			12			700	112	25	4
			6			450	224	40	10
			3			225	449	60	12.5
RR7□R			24	±0.05	65~315 (per 50st)	860＜640＞	182	20	3	Catalogue	↓ Download guide
			16			700＜560＞	273	50	8
			8			320＜280＞	547	60	18
			4			160＜140＞	1094	80	19

The value shown in ＜＞ refers to the value for vertical specification.

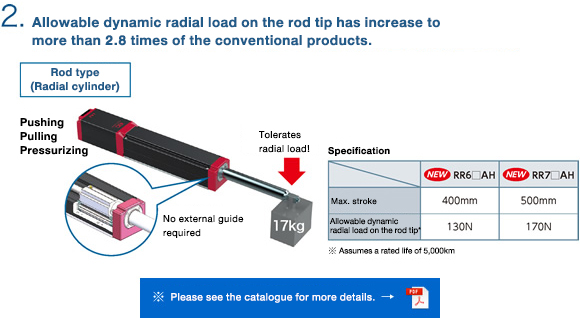

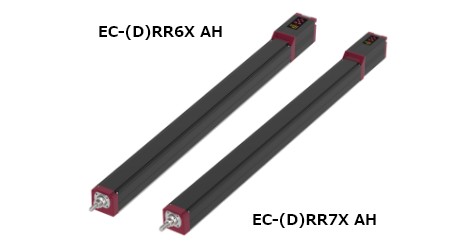

Robust radial cylinder

Type	Appearance	Body width (mm)	Lead (mm)	Repeated positioning accuracy (mm)	Stroke (mm)	Maximum speed (mm/s)	Maximum pressing force (N)	Maximum load capacity (kg)		Introduction page (PDF)	CAD drawings
								Horizontal	Vertical
RR6□AH			20	±0.05	50~400 (per 50st)	800	56	6	1.5	Catalogue	↓ Download guide
			12			700	93	25	4
			6			450	185	40	10
			3			225	370	60	20
RR7□AH			24	±0.05	50~500 (per 50st)	860＜640＞	182	20	3	Catalogue	↓ Download guide
			16			700＜560＞	273	50	8
			8			350	547	60	18
			4			175	1094	80	28
RR6□AHR			20	±0.05	50~400 (per 50st)	800	67	6	1.5	Catalogue	↓ Download guide
			12			700	112	25	4
			6			450	224	40	10
			3			225	449	60	20
RR7□AHR			24	±0.05	50~500 (per 50st)	860＜640＞	182	20	3	Catalogue	↓ Download guide
			16			640＜560＞	273	50	8
			8			320＜280＞	547	60	18
			4			150＜140＞	1094	80	28

Table type

Type	Appearance	Body width (mm)	Lead (mm)	Repeated positioning accuracy (mm)	Stroke (mm)	Maximum speed (mm/s)	Maximum pressing force (N)	Maximum load capacity (kg)		Introduction page (PDF)	CAD drawings
								Horizontal	Vertical
TC4			6	±0.05	30､50	300	30	2.5	1	Catalogue	↓ Download guide
			4			200	45	4	1.5
			2			100	90	8	2.5
TW4			6	±0.05	30､50	300	30	2.5	1	Catalogue	↓ Download guide
			4			200	45	4	1.5
			2			100	90	8	2.5

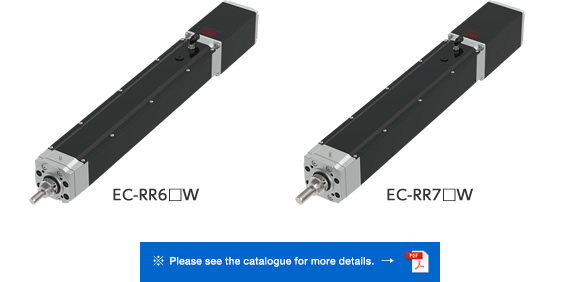

Waterproof type

Type	Appearance	Body width (mm)	Lead (mm)	Repeated positioning accuracy (mm)	Stroke (mm)	Maximum speed (mm/s)	Maximum pressing force (N)	Maximum load capacity (kg)		Introduction page (PDF)	CAD drawings
								Horizontal	Vertical
R6□W			20	±0.05	50~300 (per 50st)	800	56	6	1.5	Catalogue	↓ Download guide
			12			700	93	25	4
			6			450	185	40	10
			3			225	370	60	12.5
R7□W			24	±0.05	50~300 (per 50st)	860＜640＞	182	20	3	Catalogue	↓ Download guide
			16			700＜560＞	273	50	8
			8			350	547	60	18
			4			175	1094	80	19
RR6□W			20	±0.05	65~315 (per 50st)	800	67	6	1.5	Catalogue	↓ Download guide
			12			700	112	25	4
			6			450	224	40	10
			3			225	449	60	12.5
RR7□W			24	±0.05	65~315 (per 50st)	860＜640＞	182	20	3	Catalogue	↓ Download guide
			16			700＜560＞	273	50	8
			8			350	547	60	18
			4			175	1094	80	19
