Factory Cost Reduction·Point 3 The Percentage Air Cylinders Occupies in the Total Electricity Consumption of a factory

Factory Cost reduction·Information materials Explains the electrical quantity consumed by Air cylinders, by picking one factory investigating result as an example.

● The actual status of use of the compressed air

In the use ratio, the electrical consumption is very high. The air compressor occupies 16% of the entire consumption. (The entire electrical consumption is 20%)
On the other hand, the use ratio of the compressed air, is highest in air blows, which is 50%, 35% for Air cylinders, and 15% for leakage.

In this case, the Air cylinder occupies 20% x 35% =7% of the entire electrical consumption of the factory.

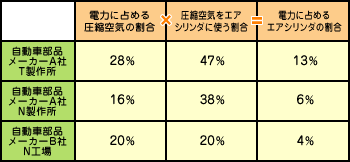

In general manufacturing industries, the electrical consumption of air compressors occupies 10~30% of the whole factory consumption, and Air cylinders occupies 20~50% of the electrical consumption of the air compressors.
Here it may be concluded, that Air cylinders are consuming up to not more than 20% of the entire electrical consumption of the factory.

An example in vehicle component factory, which is in the information material of Energy Center

Factory Cost Reduction·Compressed Air Usage Efficiency

Hence, Air cylinder energy savings lead to a measurement against a part of the entire electrical consumption of the factory, which is not more than 20%.
Factory Cost Reduction·Energy Type Ratio
Factory Cost Reduction·Compressed Air Usage Ratio
