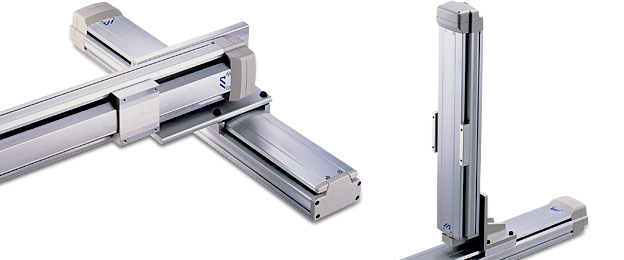

ICSA2/ICSPA2 Series

It is a combination of 5 types of a high frequency use.

Several sizes line up from a light weight load to a heavy weight load, or from a short stroke to a long stroke.

Product information of ICSA2/ICSPA2 Series

Features 1 Orthogonal robot with 2 axis combination type comes with 5 models of XYB/XYS/XZ/YZ/XYG.

Features 2 XYB/XYS type can select orientation of Y axis setting from 4 types.

Features 3 XYB type can select (※) from 2 types of independence cable or cable bear for wiring the Y axis ※Except some model.

  • ※This page provides information from the specification of all series to the maximum value. The maximum value may not be achieved and is subject to the combination of specification required.
  • ※Please see the catalogue (PDF File) for more information.

Introduction of main ICSA2/ICSPA2 series variation.

ICSA2【ICSPA2】

XYB(Fixed Y axis base) type
XYS(Fixed Y axis slider) type
XZ (Fixed Z axis vertical) type
YZ (Fixed Y axis slider) type
XYG (Gantry) type

Examples of usage

Examples of improvement in production efficiency, cost reduction, and examples of product use can be seen.
