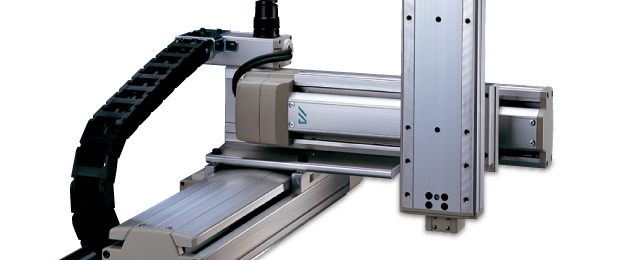

ICSA3/ICSPA3 Series

This is a combination type using a base from 2 axis combination and added vertical axis.

The way to fix Z axis is from this two Z axis base and Z axis slider.

ICSA3/ICSPA3 Series Product Information.

Features 1 Orthogonal robot 3 axis combination pattern that can be choosed from the 4 types below.

  1. 1. XYB type + Z axis fixed base.
  2. 2. XYB type + Z axis fixed slider.
  3. 3. XYG type + Z axis fixed base.
  4. 4. XYG type + Z axis fixed slider

  • ※This page provides information from the specification of all series to the maximum value. The maximum value may not be achieved and is subject to the combination of specification required.
  • ※Please see the catalogue (PDF File) for more information.

Variation of main ICSA3/ICSPA3 series

ICSA3【ICSPA3】

XYB (Y axis fixed base) + Z axis fixed base type.
XYB (Y axis fixed base) + Z axis fixed slider.
XYG (Gantory) + Z axis fixed base.
XYG (Gantory) + Z axis fixed slider.

Examples of usage

Examples of improvement in production efficiency, cost reduction, and examples of product use can be seen.
