New electric cylinder able to operate or adjust using a built-in controller designed by mechanical engineer.
ERC series is a built-in controller that is easy to install, wiring and adjust.

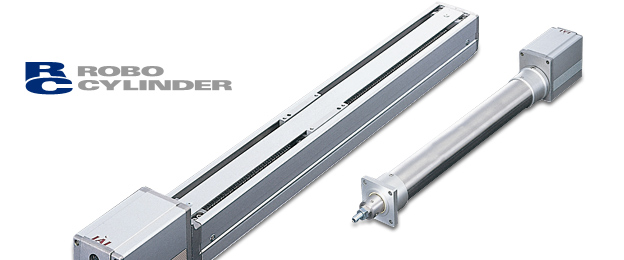

Product information for ERC2 series
Features 1 Reduce the hassle of wiring by a using built-in controller
Simple operation by connecting a dedicated cable to the PLC and DC24V power.
Additional, if using serial dedicated type and gateway, unit will also be able to connect to field network.
Features 2 No space requires for setting controller
As there is no space required for setting controller, the size of control panel can be reduce to a smaller size that enables a significant cost reduction.
Features 3 The extremely low price including controller
Cost down more than 20% compared to the existing due to the thorough price review of all component.
Features 4 AQ seal equipped as standard
AQ seal made out of lubricant solidified by resin, is equipped as standard.
Main function

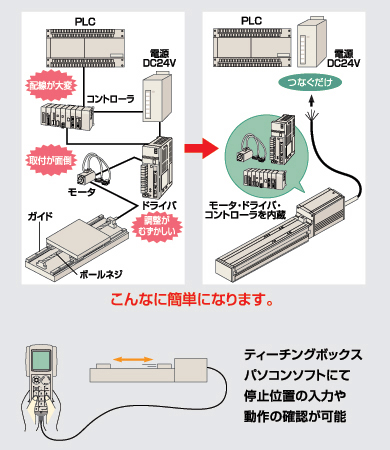

Easy Connection / Easy Operation
Only connect the cable to the body, the PLC I/O (in-output) and then supply power (DC24V), the ERC2 will be ready to operate as it has a controller built inside the body
Eventhough it is not connect to PLC, the input stop position or confirm the motion can be done by software which is compatible to teaching box or computer

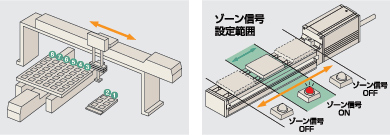

Maximum 64 points※ Useful features for multiple positioning points.
Both Slider type and Rod type can set stop positioning upto a maximum of 64 points※, which are able to correspond in a number of jobs without changeover process.
Additional functions of temporary stop input signal and zone output signal are provides in RC series that help for easy operate movement unlike air cylinder type.
- ※ In case of serial communication type

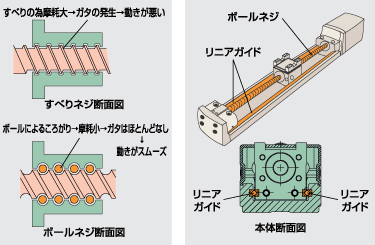

Ensure the high precision and high rigidity with a ball screw and linear guide.
Even with the lower price, the feeding screw for driving is using a high precision ball screw When compared to a slide screw,this has a lower friction resistance which cause a less wear and give a longer life to ensure a smooth motion and high accuracy positioning.
Furthermore, the slide type has a built-in linear guide that maintain the straightness and it can apply the load projecting outside from the body.

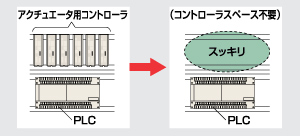

Space Saving
ERC2 is a built-in controller that save the space for setting the controller from control panel.
This one ERC2 can support multiple actuator etc. and can reduce to the smaller size of control panel and can be linked to a space saving and cost reduction.
- ※ In case of serial communication type
Introduction of main ERC2 series variation.
Integral type with pulse motor installed and controller built-in.
Slider types catalogue (PDF: 9.5 MB)
Standard Type SA6C/SA7C
Rod type catalogue (PDF: 9.7 MB)
Standard Type RA6C/RA7C
Single Guide Type RGS6C/RGS7C
