Pressing operation using a high thrust like in air cylinder.
RCP2 is a new generation of cylinder that take a benefit of pulse motor that generate a high thrust at a low rotation.
Product information for RCP2
- RCP2-RA8C / RA8R Catalogue (PDF: 1.5MB)
- High speed specification slider type(SA5/SA6) ROBO cylinder®Catalogue (PDF: 310KB)
Features 1 Extensive variation
Various type such as slider type, rod type, belt drive type, gripper type, or rotary type available depending on application.
Features 2 Strong press force benefit from pulse motor.
Small size but give a strong press because the characteristic of pulse motor generate high torque at the low speed
Features 3 Controller correspondence to various control system.
It can operate in many control system such as positioned, pulse train input, serial communication, air cylinder compatible and program operations etc.
Features 4 AQ seal equipped as standard
AQ seal made out of lubricant solidified by resin, is equipped as standard.
Main function

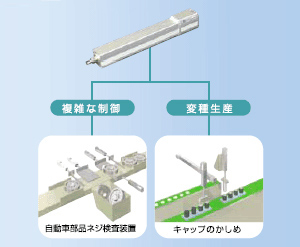

Complicated movement is also nimble. Positioning point up to 512 points.
With a new controller it makes multi positioning up to 512 points.
In comparison, this is capable of doing complicated movement and changing speed during operation and high degree of control.

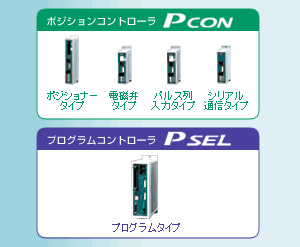

With controller series enrichment support many kind of control system.
Choosable small sized controllers based on controlling methods.
Positioning ability has largely increased.

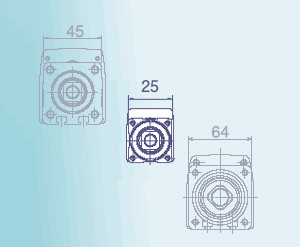

Compact device with superfine at 25mm.
New arrival of 25mmx25mm type superfine for rod type. Smart compact mechanical device that not giving a waste even a tiny space.
ROBO cylinder series are the new generation electromechanical system cylinders (electric actuators・electromechanical system sliders).
Variation of Main RCP2 Series
Pulse Motor mounting and Standard type
Slider types catalogue (PDF: 9.5 MB)
Motor Coupling Type SA5C/SA6C/SA7C/SS7C/
SS8C/HS8C
Motor Reversing Type SA5R/SA6R/SA7R/SS7R/
SS8R/HS8R
Belt Drive Type BA6 / BA6U / BA7 / BA7U
Rod type catalogue (PDF: 9.7 MB)
Motor Coupling Type RA2C/RA3C/RA4C/RA6C/
RA10C/SRA4R
Single Guide Type RGS4C/RGS6C/SRGS4R
