New series added in to 100V/200V specifications Introduction of the Mini ROBO cylinder® RCS2-□5N
RCS2-□5N
Realisation of high downsizing and improvement in specification in comparison to conventional model.
Servo motor mounted electromechanical system cylinder which shows a high performance in high load-carryings
There are plenty of variations which corresponds to the space in the equipment, serving as an attraction.
Product information of the RCS2 series
- High speed specification slider type(SA5/SA6) ROBO cylinder®Catalogue (PDF: 310KB)
- Load cell equipped extra high thrust type (RCS2-RA13R-LCT/LCN) Catalogue (PDF: 420KB)
Feature 1 Enabling high speed conveying of middle weight substance
The mounted 200V servo motor, which has a maximum speed of 1,000mm/s,
maximum payload capacity of 60kg and maximum stroke of 1,000mm, enables the high speed conveying of middle weight substance.
Extra high thrust type has realised a maximum pressing force of 2t(19600N)
and maximum payload capacity of 500kg(horizontal).
- Please refer here for the product information of the load cell equipped extra high thrust type(RCS2-RA13R-LCT/LCN).
-
- Product information of the RCS2-RA13R-LCT/LCN (PDF: 420KB)
Feature 2 Enables the combination above 3-Axis by using the XSEL controller
Combination of multi-axis/Slider Type Robots are enabled since the XSEL controllers, which has the maximum controlling number of 6-Axis can be used.
Feature 3 3 types of selectable motor mounting method, which includes coupling, built-in(direct connection) and folded (excluding few models)
Motor mounting method was made selectable out of 3 types, putting in the maintainability and the mounting space in to account.
Features 4 AQ seal equipped as standard
AQ seal made out of lubricant solidified by resin, is equipped as standard.
Main function
Coupling specification is available
Addition of coupling specification which improves the maintainability of motor replacing by having the motor and ball screw united through coupling.
Absolute system unit specification/Incremental specification can be selected.
Absolute system specification is ready for operation even in start ups at morning or after recovery from emergency stops, since it doesn't require a homing process.
Conventional incremental specification is also selectable.
(Excluding few models)
High speed/High payload capacity
Maximum speed 1000mm/sec(SS8/SS8R type), maximum payload capacity 60kg(SS8/SS8R type).
Contributes to the reducing of the cycle time, by the large increase in high speed performance・transporting ability.
The cycle time calculation is made easy, since the thrust is constant from low speed to high speed.
Extra high thrust type(R13R) is compatible to maximum payload capacity of 500kg.
High rigidity
Even though in extra compact size, the slider type has a superior rigidity, having a cross-sectional shaped base, putting rigidity in to account.
Since single guide・double guide are selectable for the slim・short body type of the rod type, and the flat type has a built-in linear guide, they are compatible even if the moment is needed.
Since the ball spindle is being used for the rotation stopper of the rod in the extra high thrust type(RA13R), light load can be applied in the direction of the thrust and rotation, on to the rod without adding a guiding structure.
Plenty of variations
Slider type has a straight type which is directly connected to motor, and a motor folded space-saving type.
A variety of types are prepared for the rod types based on their use. These include the slim type, which has it's external form made slim, the short type, which the whole length made short, and the flat type, which it's height is made low.

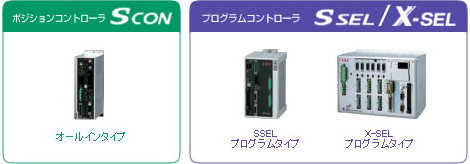

Controllers
Choosable small sized controllers based on controlling methods. Positioning ability has largely increased.
ROBO cylinder series are the new generation electromechanical system cylinders (electric actuators・electromechanical system sliders).
Introduction of the main RCS2 series variation
Servo motor mounted・High speed, high load compatible
Slider types catalogue (PDF: 9.5 MB)
Motor coupling type SA4C/SA5C/SA6C/SA7C/SS7C/SS8C
Motor built-in type SA4D/SA5D/SA6D
Motor folded type SA4R/SA5R/SA6R/SA7R/SS7R/SS8R
Rod type catalogue (PDF: 9.7 MB)
Motor coupling type RA4C/RA5C
Motor built-in type RA4D
Short length type SRA7BD
Motor folded type RA4R/RA5R/RA13R
Single guided type RGS4C/RGS5C/RGS4D/SRGS7BD
Double guided type RGD4C/RGD5C/RGD4D/SRGD7BD/RGD4R
Short length nut fixing mounting type RN5N
Short length tap hole mounting type RP5N
Short length single guided type GS5N
Short length double guided type GD5N
Short length slide unit type SD5N
Table type catalogue (PDF: 16.0 MB)
Short length-compact type TCA5N
Short length-wide type TWA5N
Short length-flat type TFA5N
Arm type catalogue (PDF: 4.6 MB)
Motor folded type A4R/A5R/A6R
Flat type catalogue (PDF: 4.6 MB)
