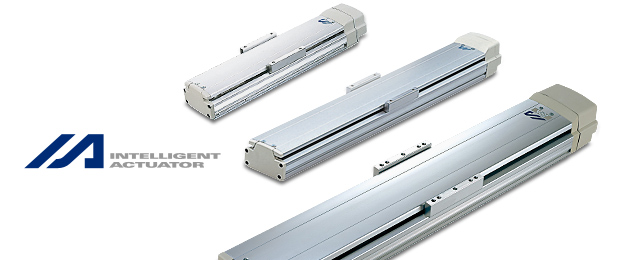

Base, linear guide, ball screw are in one unit as a standard model.
Product Information of ISA/ISPA series
Features 1
This standard model ISA offers various types including medium support type with maximum stroke of 2500.
Features 2
High spec ISPA using C5 equivalent screw that created an excellent repeatability.
Features 3
ISA-W/ISPA-W is a largest type using C5 equivalent screw and 600w/750w high power motor.
Overview specification of ISA/ISPA series.
| Type | Maximum Stroke |
Maximum horizontal load capacity | Maximum vertical load capacity | Maximum speed |
Maximum horizontal acceleration | Maximum vertical acceleration | Accuracy of repeating positioning |
|---|---|---|---|---|---|---|---|
| ISA | 2500 mm | 80 kg | 39 kg | 2000 mm/s | 1 G | 1 G | ±0.02 mm |
| ISPA | 2500 mm | 80 kg | 39 kg | 2000 mm/s | 1 G | 1 G | ±0.01 mm |
| ISA-W (Ultra large type) |
2500 mm | 150 kg | 60 kg | 2000 mm/s | 1 G | 1 G | ±0.02 mm |
| ISPA-W (Ultra large type) |
2500 mm | 150 kg | 60 kg | 2000 mm/s | 1 G | 1 G | ±0.01 mm |
- ※This page provides information from the specification of all series to the maximum value. The maximum value may not be achieved and is subject to the combination of specification required.
- ※Please see the catalogue (PDF File) for more information.
