This one unit is Compact with High speed and supporting vertical and rotating operation.

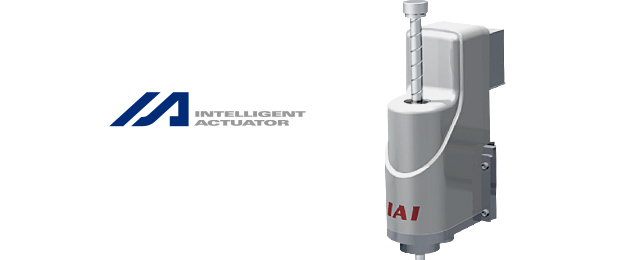

Product information of ZR Series
Features 1 Vertical and rotating operation can be done in one unit.
Features 2 Enable to attach to the orthogonal robot as a standard unit .
Able to attach to orthogonal robot ICSA/ICSPA series as a standard unit because of its compact structure. The work description can be enriched further.
Features 3 Capable of high speed motion and high speed rotation when compared to existing Z axis + rotating axis.
Capable of high speed motion and high speed rotation of vertical operation 1256mm/s, rotating operation 2200 degree/s
Features 4 Saving space.
This can save space by shaft on Z axis operating up and down and rotate.
Features 5 A line up in 2 different sizes.
A line up of small type and medium type. Also selectable from absolute or incremental.
- ※This page provides information from the specification of all series to the maximum value. The maximum value may not be achieved and is subject to the combination of specification required.
