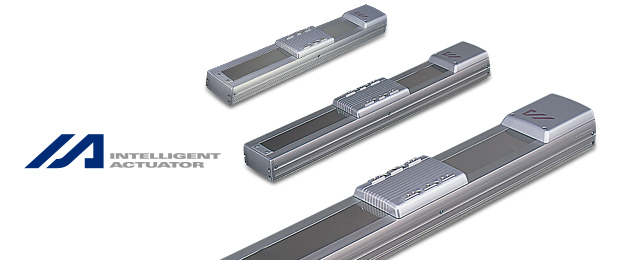

Single axis robot with dustproof specification to prevent foreign object entering inside the body.
ISDA/ISPDA series is a simple dustproof specification equipped with stainless steel sheet.
Product Information of ISDA/ISPDA series
Features 1
Same as ISA series, this comes with medium support feature that helps stopping maximum speed drop during long stroke.
Features 2
Body size is 3 types, S/M/L. Can be selected depending on the weight and projecting length of work.
Overview specification of ISDA/ISPDA series
| Type | Maximum Stroke |
Maximum horizontal load capacity |
Maximum vertical load capacity |
Maximum speed | Maximum horizontal acceleration | Maximum vertical acceleration | Accuracy of repeating positioning |
|---|---|---|---|---|---|---|---|
| ISDA | 1600 mm | 120 kg | 40 kg | 2400 mm/s | 1.2 G | 1.2 G | ±0.01 mm |
| ISPDA | 1600 mm | 120 kg | 40 kg | 2400 mm/s | 1 .2G | 1.2 G | ±0.005 mm |
- ※This page provides information from the specification of all series to the maximum value. The maximum value may not be achieved and is subject to the combination of specification required.
- ※Please see the catalogue (PDF File) for more information.
