More accuracy, rigidity, transfer performance, speed, and acceleration than ISA series.
ISA series is a high performance single axis robot that newly improved from the base.

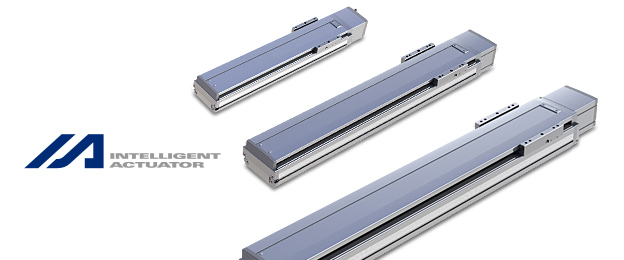

Production Information of ISB/ISPB
Features 1 ISA Load capacity is up 10%
Features 2 Maximum acceleration/deceleration 1.2G and Maximum speed 2400mm/s.
Features 3 The accuracy of Repeat positioning is ±0.005mm. (High precision spec)
Features 4 Straight motion of slider is less than 0.02mm/m. (Option)
Overview specification of ISP/ISPB series
| Type | Maximum Stroke |
Maximum horizontal load capacity | Maximum vertical load capacity | Maximum speed |
Maximum horizontal acceleration | Maximum vertical acceleration | Accuracy of repeating positioning |
|---|---|---|---|---|---|---|---|
| ISB | 2500 mm | 120 kg | 40 kg | 2400 mm/s | 1.2 G | 1.2 G | ±0.01 mm |
| ISPB | 2500 mm | 120 kg | 40 kg | 2400 mm/s | 1 .2G | 1.2 G | ±0.005 mm |
- ※This page provides information from the specification of all series to the maximum value. The maximum value may not be achieved and is subject to the combination of specification required.
- ※Please see the catalogue (PDF File) for more information.
