Dustproof specification to prevent foreign object entering inside the body.
ISB series equipped with stainless steel sheet.

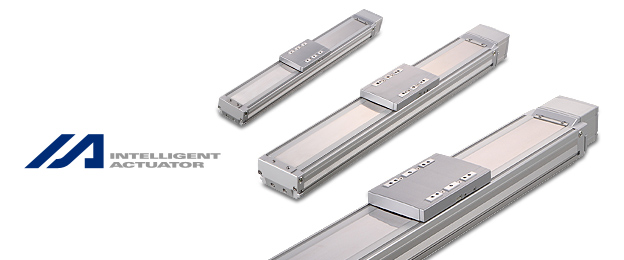

Production Information of ISDB/ISPDB
Features 1 Same motion performance as ISB series.
Features 2 Medium support feature helps prevent maximum speed drop during long stroke.
Overview specification of ISDB/ISPDB series
| Type | Maximum Stroke |
Maximum horizontal load capacity | Maximum vertical load capacity | Maximum speed |
Accuracy of repeating positioning |
|---|---|---|---|---|---|
| ISDB | 1600 mm | 120 kg | 40 kg | 1800 mm/s | ±0.01mm |
| ISPDB | 1600 mm | 120 kg | 40 kg | 1800 mm/s | ±0.005mm |
- ※This page provides information from the specification of all series to the maximum value. The maximum value may not be achieved and is subject to the combination of specification required.
- ※Please see the catalogue (PDF File) for more information.
