What is Electric Actuator?

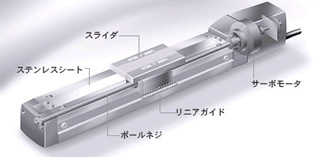

Electric actuator is responsible for an operation such as production unit, production line, or for machine, transportation using a driving unit constructed with ball screw, linear guide and servo motor or with. as a group of performance product are provided to meet a required specification so it is not necessary to select/calculate part again which will improve design efficiency.
Furthermore, with a convenient function of high rigidity, acceleration/deceleration setting, and speed control as well as rodless air cylinder will contribute much lower cost.
Moreover, a special feature is it is difficult to break when comparing to air cylinder, yet easy to change part, as a result, it will reduce a risk of production stop from back up stop or maintenance, and contributes high production efficiency with a lower running cost.
To save more space change to electric cylinder. The operation is as simple as air cylinder
Compact type ROBO CylinderElectric cylinder is easy to use and it is suitable to replace to air cylinder.
Specification for compact
ROBO Cylinder Brake
There is a brake option added in compact type ROBO Cylinder.
Various line up of high performance, convenience and economic effeiciency to serve customer needs.
RCP5 Series No need to change battery, no expense, and no adjustment for Batteryless Absolute Encoder.
RCP4 Series RCP4 series is an electric cylinder combined with new model of controller "Power Con 150 PCON-CA" that can perform maximum speed at 1.5 times and load capacity at 2 times.
RCP2 seriesRCP2 series is a next generation cylinder type that utilise a feature in pulse motor to generates a high thrust in a low rotation.
RCP3 seriesElectric cylinder mounted on pulse motor gives a better output in push operation and coming to a complete stop.
RCS2 seriesThere are plenty of variations which corresponds to the space in the equipment, serving as an attraction.
RCS3 Series RSC3 series has improved travelling performance and repeatable positioning accuracy.
RCA2 seriesMaintenance Improvement in RCA series
RCA seriesRod type can install body part such as foot, trunnion, clavis and can replace with air cylinder as it is.
ERC3 Series ERC3 series is a built-in controller type and easy to assemble, wire or adjust.
ERC2 seriesERC series is a built-in controller that is easy to install, wiring and adjust.
ROBO ROTARY RCP2・RCS2Electric Rotary Type for ROBO Cylinder
ROBO GRIPPER Electric Chuck Type for ROBO Cylinder
RCD seriesUltra compact type electric cylinder with a cross-section size of 12mm
High accuracy positioning device. Reduce work process of design, adjustment and lower cost.
ISB/ISPB SeriesISA series is a high performance single axis robot that newly improved from the base.
ISDB/ISPDB SeriesISB series equipped with stainless steel sheet.
SSPA SeriesBase material changed from aluminium to steel which helps create a greater rigidity.
ISA/ISPA SeriesBase, linear guide, ball screw are in one unit as a standard model.
ISDA/ISPDA SeriesISDA/ISPDA series is a simple dustproof specification equipped with stainless steel sheet.
IF SeriesHigh-rigidity body of ISA series were adopted to IF series.
FS SeriesDrive belt single robot has proof the Longest stroke at maximum 3000mm, and maximum high speed at 2000mm/s
NS SeriesNut rotating type actuator.
RS SeriesRotating axis uses high precision harmonic drive.
ZR SeriesThis one unit is Compact with High speed and supporting vertical and rotating operation.
Full line up that serve various application. New encoder system product also available.
LSA/LSAS seriesCorresponding to high speed, high load, high precision and long stroke.
Variety combination, wide operating range and high speed performance are now effective. Also a line up of lower price product.
ICSB / ICSPB SeriesSignificantly improved on precision, load capacity, acceleration/deceleration comparing to the existing model of ICSA series.
ICSA2 / ICSPA2 SeriesSeveral sizes line up from a light weight load to a heavy weight load, or from a short stroke to a long stroke.
ICSA3 / ICSPA3 SeriesThe way to fix Z axis is from this two Z axis base and Z axis slider.
ICSA4/ICSPA4/ICSPA6 SeriesBy applying the push bracket and wiring to a high combination pattern that is often used, then join this combination unit to the equipment and it is ready to use.
IK2/IK3 Series
Significant cost reduction compared to the existing orthogonal robot.
High Speed and high acceleration/deceleration creates a shorter cycle time. Square motion range is highly efficient.
CT4 SeriesThe newly developed cast aluminium frame ensures a high rigidity.
Usability and high function are packed into the compact form. Robots with lower cost.
TT/TTA seriesLower price and high function table top type robot is now available.
A top class with high performance. Significantly improved on Usability.
IXP SeriesBatteryless absolute encoder as standard equipment. A lower cost SCARA Robot (Horizontal multi joints robot) with pulse motor.
IX SeriesTop class level in high speed, high load and high precision SCARA Robot (Horizontal multi joints robot).
Please see the product that corresponding to clean room or dustproof-waterproof environment.
Clean Room compatibleActuator is compatible to cleanliness class 10 Provide wide variation.
Dustproof-Waterproof SupportIP65 corresponding actuator can be used even in the adverse environment like dust or water.
